Summary of Contents for oaniso BCP Series

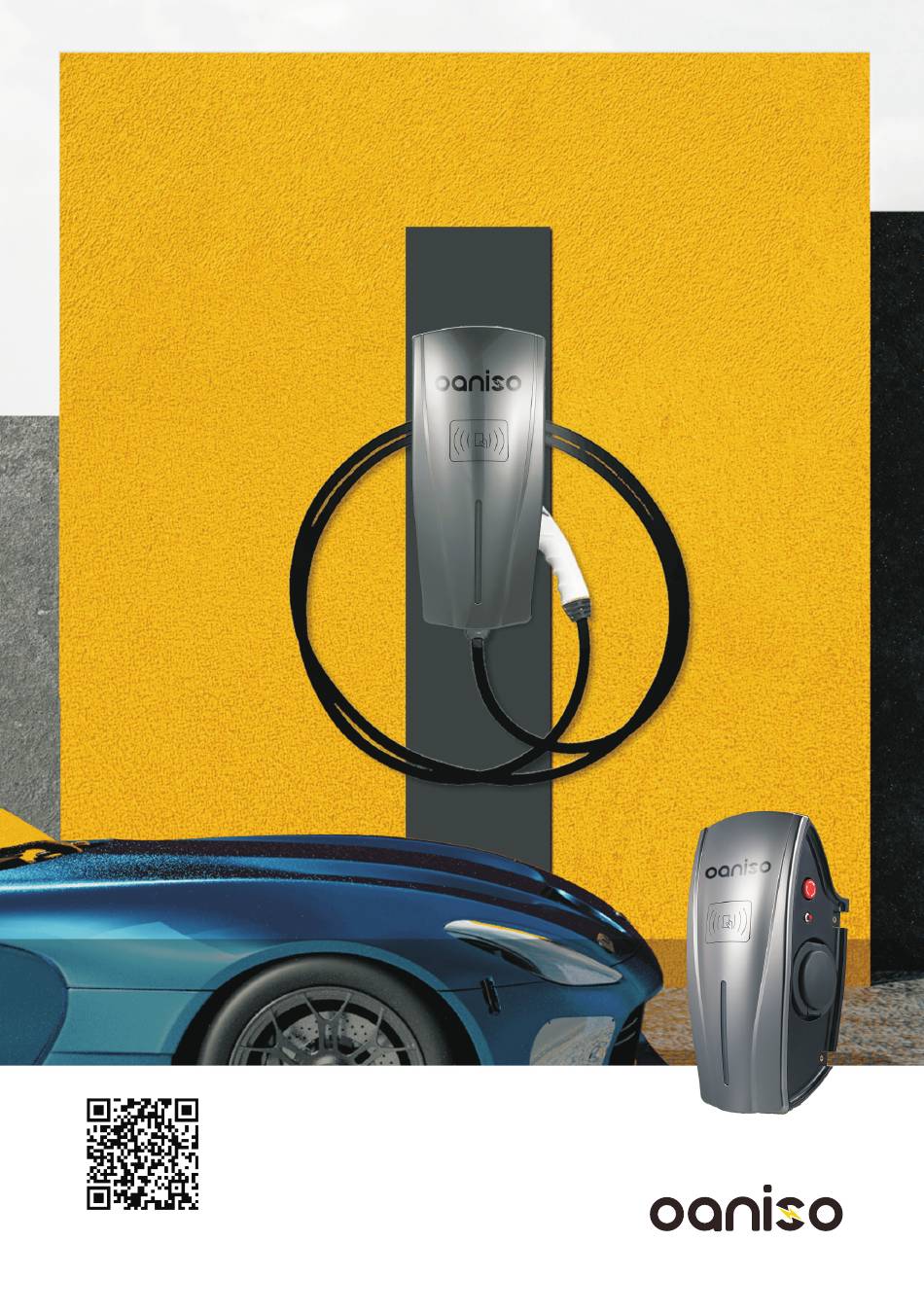

- Page 1 BCP Series AC EV Charger Use and lnstallation Manual Scan For More Information...
-
Page 3: Table Of Contents
CONTENTS Safety information Important safety instructions P-01 ● ● Cautions P-02 ● Notes P-02 Specification P-03 ● Features P-03 ● Prepare for installation Minimum installation requirements P-05 ● Position P-06 ● Height P-06 ● Power supply P-07 ● Installation considerations P-08 ●... -
Page 4: Safety Information
Read this entire mandatory document before installing or using the EV charger. This device should be supervised when used around children. The BCP series EV Charger must be grounded through a permanent wiring system or an equipment grounding conductor. Do not install or use the EV Charger near flammable, explosive, harsh, or combustible materials, chemicals, or vapors. -
Page 5: Cautions
Safety information Do not insert foreign objects into any part of the EV Charger. Use of the EV Charger may affect or impair the operation of any medical or implantable electronic devices, such as an implantable cardiac pacemaker or an implantable cardioverter defibrillator. -
Page 6: Specification
Safety information Specification Description Specification Voltage and wiring Single-phase or three-phase EV Charger:AC230V±10%; L1、N、 Three-phase EV Charger:AC400V±10%;L1、L2、L3、N、PE Current 6A/8A/10A/12A/16A/20A/25A/32A 50/60HZ Frequency 5M/6M Cable length Height:380mm Width:169mm Depth:151/201mm EV charger dimensions 7KG/5KG Gross Weight -25℃~55℃ Operating temperature （ ） IP65 Socket IP55 Enclosure rating Standby power <95%No condensation... - Page 7 Safety information Easy for cable storage. ● The ramp-down stop current charging mode protects the EV batteries. ● The EV charger can be wall-mounted or pile mounted.There are three wiring ways for ● the EV charger, bottom entry wiring,Top entry wiring and rear entry wiring.You will need to install the wiring box to make top entry wiring.
-
Page 8: Prepare For Installation
Prepare for installation Minimum installation requirements Installation of the wall charger requires that you: ● Calculate the existing electrical load to determine the maximum operating current. Calculate the distance to ensure minimal voltage drop. ● Obtain any necessary permits from the local authority that has jurisdiction and confirm ●... -
Page 9: Position
Prepare for installation Position Ensure that the parking position is within range of the charging cable. ● There is enough clearance for the charging cable to wrap around and the charging ● handle can be comfortably positioned on the side of base. If installed in an enclosed garage, choose to install on the side of the EV charger slot. -
Page 10: Power Supply
This BCP series AC EV charger must be grounded via a permanent electrical system or equipment grounding Conductor. -
Page 11: Installation Considerations
Prepare for installation Installation considerations Three methods are available to install the EV charger.The location of the conduit ● determines which installation method to follow. If the conduit runs along the floor or low on the wall, use the bottom entry configuration. lf the conduit comes from inside the wall, use the rear entry configuration. - Page 12 In the box ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ Item Quantity EV charger Wire box Mounting braket RFID card (optional) M32*1.5 cable gland M6*8 screws 8*40 socket head screws and anchorings 8*40 flat head screws and anchorings Position template DLB box (optional) Plastic lifter...
-
Page 13: Installation Lnstructions
Installation instructions Step-by-step installation instructions (bottom entry wiring) Step 1 Position ⑨ wall The bottom of the positioning plate is 1.2 m away (recommended), if the EV Drill charger is installed close to the edge of The 6 pionts the wall, the positioning plate should on the position plate be more than 0.5 m away from the edge... - Page 14 Installation instructions Step-by-step installation instructions (bottom entry wiring) Step 3 lnstall the EV Charger to the mounting plate M6*8 bolts Align the side hole of EV charger to the panel's side holes. Left hole position Right hole lnstallation position Use the 4pcs M6*8 screws to fix the EV charger to the mounting plate as picture shows (Screws torque 1.5NM- 2.0NM).
-
Page 15: Step-By-Step Installation Instructions (Top Entry Wiring
Installation instructions Step-by-step installation instructions (top entry wiring) Step 1 Position ⑨ wall The bottom of the positioning plate is 1.2 m away (recommended), if Drill the EV charger is installed close to Two points on the edge of the wall, the positioning the top and bottom of plate should be more than 0.5 m... - Page 16 Installation instructions Step-by-step installation instructions (top entry wiring) Step 3 Cut out on the back of the EV charger. M6*8 bolts Find the hole for cut out on the back of EV charger. Use the 4pcs M6*8 screws to fix the Left hole position Right hole EV charger to the mounting plate as...
-
Page 17: Step-By-Step Installation Instructions (Rear Entry Wiring
Installation instructions Step-by-step installation instructions (rear entry wiring) Step 1 Position ⑨ wall The bottom of the positioning plate is 1.2 m away (recommended), if the Drill EV charger is installed close to the The 6 pionts edge of the wall, the positioning plate on the position plate should be more than 0.5 m away from... - Page 18 Installation instructions Step-by-step installation instructions (rear entry wiring) Step 3 lnstall the EV Charger to the mounting plate. M6*8 bolts Find the hole for cut out on the back of EV charger. Left hole position Use the 4pcs M6*8 screws to fix the Right hole position EV charger to the mounting plate as...
-
Page 19: Set The Operating Current
Installation instructions Warning Do not connect the power cord before reading and fully understanding all the concepts introduced in this section. If you are not sure whether the type of power supply on the repair panel is available, please consult an electrician for assistance. Be careful of electric shock! Before use, use a voltmeter to confirm that there is no voltage on the power supply line or terminal to ensure that the power has been cut off. -
Page 20: Set The Dip Switch
Installation instructions Set the DIP switch ● Follow these instructions to configure the DIP switch.The following illustration shows an enlarged view of the DIP and rotary switches. Warning Power MUST remain OFF before setting or changing the DIP or rotary switches.Changing these switches with the power ON will not be recognized by the system and is dangerous due to the risk of electric shock. -
Page 21: Operating Status
Operating status Power on checking Check content Check and ensure the circuit breaker for the EV charger is reasonably selected Confirm that there is no short circuit between the AC output L/N/PE of the charging Confirm that the charging gun is not connected to the vehicle Ensure the circuit breaker is closed The charger is powered on, and the power-on selfcheck is completed in about 10 seconds... - Page 22 Operating status EV charger LED light Emergency stop protection Yellow light on Yellow & red LED flicker CP signal abnormal alternately (interval 1s) Poor grounding/Nature and live wire Red light on reverse connection Red light flashes (flashing once every Over-voltage 500MS and then repeating after Protection waiting 2 seconds)
-
Page 23: Buzzer Prompt Description
Operating status Buzzer prompt description Buzzer Status Operating Short buzzing one sound Swipe to start Start charging Short buzzing two sounds Swipe to quit Stop charging Long buzzing one sound Swipe failure NONE P-20... -
Page 24: Maintenance Instructions
Maintenance instructions ln order to ensure the normal service life of the charging pile and reduce the risk during use, it must be overhauled with in the specified time period; the overhaul of the equipment should be carried out by professionals, band qualified and safe overhaul tools should be used. -
Page 25: Safety Notice
Maintenance instructions Safety notice Operation and maintenance risk notification ● Do not disassemble or modify charging facilities and wiring without authorization, otherwise it may cause fire and electric shock accidents. ln the event of a power failure or power failure, professional personnel or authorized ●... - Page 26 OANISO ELECTRICAL LIMITED Address : 9 Pantygraigwen Road Pontypridd Mid Glamorgan CF372RR United Kingdom TEL : +86-577-5717 7008 Email : wjl@oaniso.com VERSION : 20220219 For the latest version of specification, please refer to www.beny.com or contact to benyi@zjbeny.com We reserve the right to explain the terms of specification.
