Summary of Contents for moda OPAL

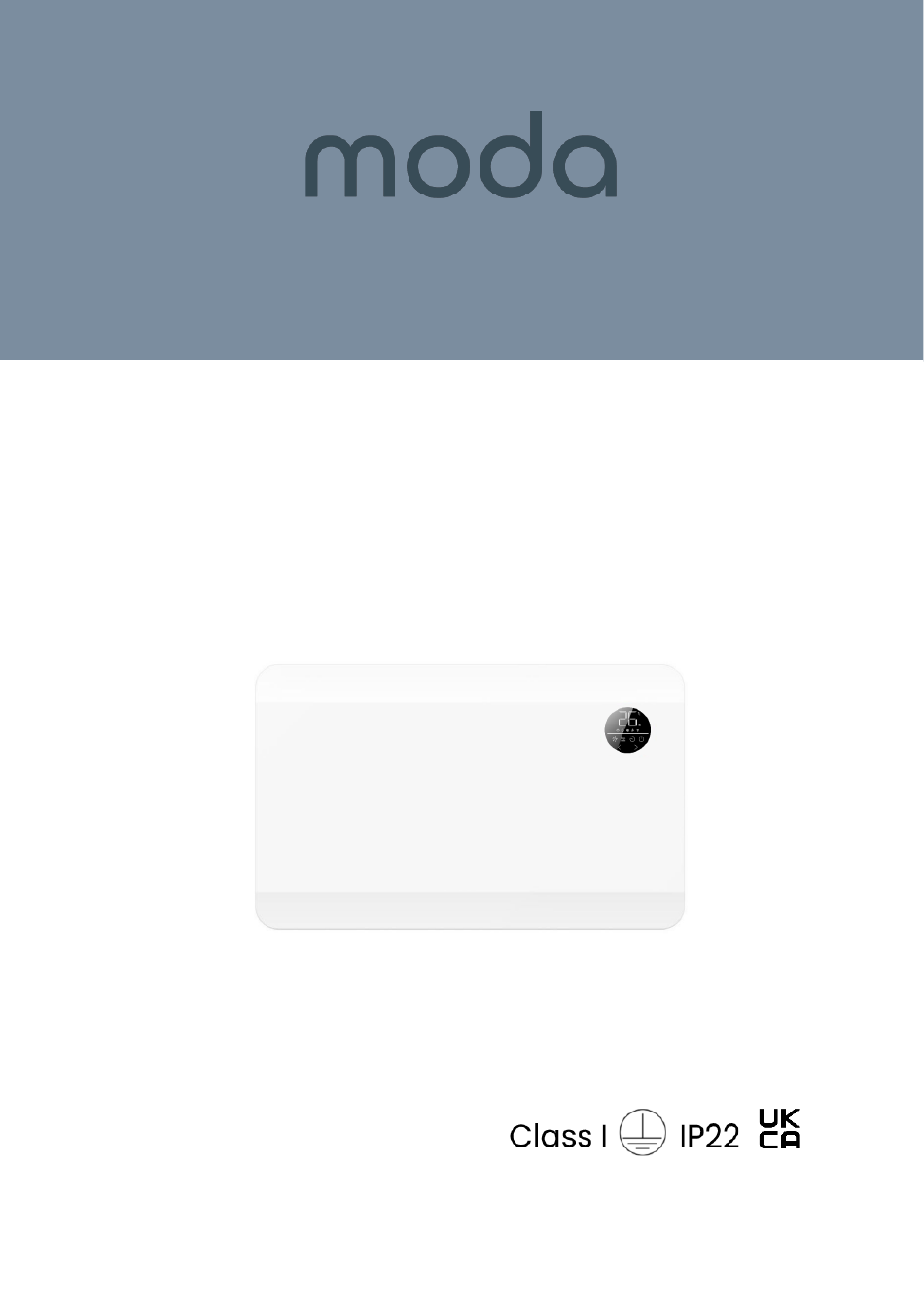

- Page 1 A|zcvB INSTRUCTION MANUAL OPAL Electric Panel Heater PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Symbols
Symbols This symbol indicates a hazard with an average risk level which, if not avoided, could result in serious injury or death. This symbol indicates danger to the life and health of persons due to electrical voltage. This symbol located on the device indicates that it is prohibited to place objects (such as towels, clothes etc.) above or directly in front of the device. -
Page 3: Table Of Contents
Contents Symbols ............................2 Contents ............................3 1 | Warnings & Precautions ..................... 4 2 | Technical Information ......................7 3 | Installation..........................7 3 – 1 Fixings ..........................7 3 – 2 | Wall Mounting Instructions ................... 7 4 | Control Panel ......................... 9 4 –... -
Page 4: Warnings & Precautions
1 | Warnings & Precautions Read this manual carefully before using or installing the heater. Always store the manual in the immediate vicinity of the heater or its site of use. Read all safety warnings and all instructions. The heater should only be installed and used according to the instructions in this manual. - Page 5 Keep the power cable away from all hot parts of the appliance. Do not use the heater with the power cable wound up. This can cause a dangerous build up of heat. Do not wind the cable around the appliance as this may cause weakening and splitting of the insulation. The power cable should be fully unwound and removed from any storage areas before use.
- Page 6 No part of the appliance should be submersed in any type of liquid. Cleaning should be carried out using a damp cloth only. No abrasive chemicals or materials should be used. Never insert fingers or other objects or body parts into the heater’s protective grill: risk of electric shock or injury.
-
Page 7: Technical Information
2 | Technical Information Voltage 230V AC / 50-60Hz. Wattage 2000W Temperature setting 5–40 °C Range 1 °C Resolution IP rating IP22 Appliance class Class I Power cable length 1.6m 3 | Installation 3 – 1 Fixings Before beginning installation, check that all fixings are supplied. The heater should only be mounted with the manufacturer’s fixings. - Page 8 2. Hook the wall mounting brackets into the holes in the back of the heater. Fix in place with the bracket screws and tighten with a screwdriver. 3. Use a tape measure and pencil to mark the locations of the drill holes on the wall.
-
Page 9: Control Panel
3 – 3 | Free Standing Instructions To use the electric heater freestanding, fit with the feet supplied with the heater following the instructions below. Make sure the heater is mounted on a level, stable and clean surface. 1. Turn the heater upside down and rest it on a soft surface such as a carpet to prevent... -
Page 10: Standby Mode
Display symbols and buttons Comfort Anti-Frost Connected to Device is Keypad locked WiFi heating Timer in Toggle WiFi / Toggle mode progress light level Set timer Standby / On Decrease / increase 4 – 2 | Standby Mode The heater first starts in standby mode, where the display shows only the symbols. -
Page 11: Countdown Timer
4 – 3 – 2 | Eco When the display is showing the icon, the heater is in eco mode. On this mode the heater heats at half power to a constant set temperature. The temperature in eco mode is always at least 1 °C lower than in comfort, providing a low-heat, energy-saving alternative for when you are sleeping or out. -
Page 12: Display Brightness
4 – 5 | Display Brightness You can adjust the brightness of the display using the key. Repeatedly pressing the key cycles the display through full light, half light and no light, where only the key displays. When the display is on full light, it will automatically dim to half light after 20 seconds not in use. -
Page 13: Connecting To Wifi
5 | Connecting to WiFi 5 – 1 | Downloading the App The Moda Opal is designed to work with the Smart Life app. Scan the code below to go to the app. Press install and follow the app’s instructions to create an account. - Page 14 Check that the heater is in pairing mode, shown by the flashing symbol on the display. If the symbol is not flashing, tap put the heater in standby mode and hold down the key. Check the frequency with which the symbol flashes and skip to step a.
- Page 15 b. The symbol flashes slowly – once per second. This means the heater is in AP mode. In this mode, your device uses a WiFi hotspot to connect. i. Tap the mode setting in the top right corner. ii. Select “AP Mode”. iii.
- Page 16 Once you have reached the connecting screen, it should take 20-30 seconds for the heater to be successfully added to the app. “Device added successfully” will display on the app and the symbol on the heater display will solidify. Tap the settings icon to change the name of the heater.
-
Page 17: Using The App
6 | Using the App NOTE – The Smart Life app is a constantly evolving third party system. The guide below was correct at time of printing but may differ slightly from future versions. 6 – 1 | Home Overview You can use the Smart Life app to control multiple devices. -
Page 18: Countdown Timer
6 – 4 | Countdown Timer Tap the timer icon and scroll through the menu to set the countdown period from 1 to 24 hours. The heater will run for the period selected and then switch to standby mode. Switching heating mode or setting a weekly program does not cancel or override the timer;... - Page 19 6 – 5 – 3 | Weekly Program Select “Week Program Free” in the settings menu to configure a weekly program. You can use the program to schedule the heater to come on at comfort, eco or anti-frost mode at regular hourly slots across the week. The program takes effect as soon as you save it on the app;...
-
Page 20: Voice Integration
6 – 6 | Voice Integration The Smart Life app is compatible with both Amazon Alexa and Google Home. To connect Alexa with Smart Life, download the Smart Life skill onto your Alexa app. To connect Google Home with Smart Life, go to “Set up a device” in the Google Home app. -
Page 21: Cleaning
Increases or decreases the set • Increase <device name> <x> temperature by a number of degrees. degrees, as above. • Decrease <device name> <x> degrees. • Raise <device name> <x> <x> degrees. • Lower <device name> <x> °C degrees. • What temperature is the Reports the set temperature of <device name>... -
Page 22: Warranty
8 | Warranty The Moda Opal carries a 2-year guarantee on the body, paintwork electrical components. Within the stated period, starting from the date the customer receives their unit, the supplier guarantees to repair or replace the unit where a fault is due to defects in materials or manufacturing. -
Page 23: Erp Ecodesign Information
9 | ErP Ecodesign Information Item Units Value / kW) Nominal heat output / kW) Minimum heat output (indicative) / kW) Maximum continuous heat output max.c / kW) At nominal heat output / kW) At minimal heat output / kW) In standby mode 0.00089 Information requirements for electrical local space heaters... -
Page 24: Disposal
10 | Disposal In accordance with WEEE Directive 2012/19/EU, the icon with the crossed-out waste bin on electrical or electronic equipment stipulates that this equipment must not be disposed of with household waste at the end of its life. You will find collection points for free return of waste electrical and electronic equipment in your vicinity.
