Summary of Contents for HPG GT1050B

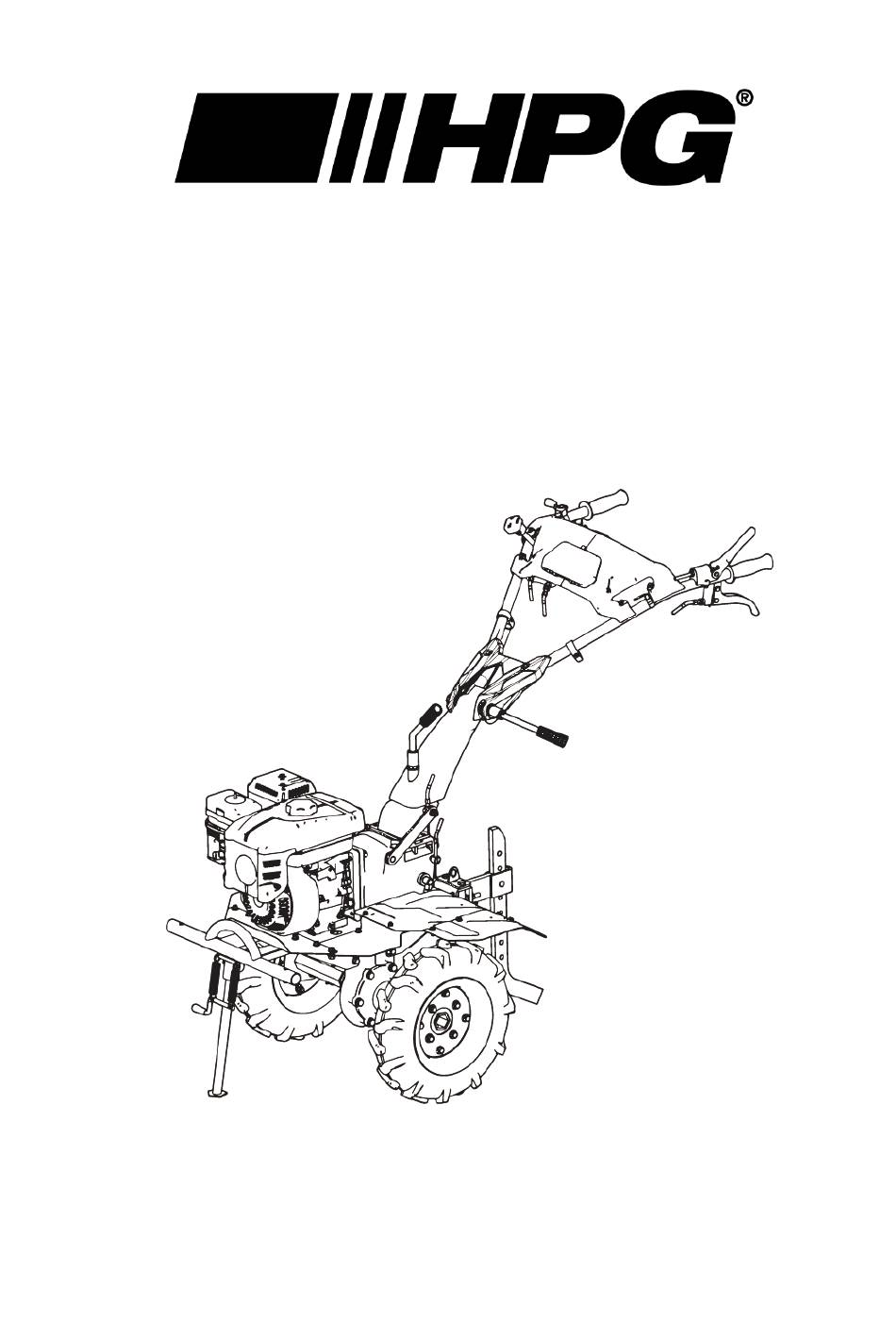

- Page 1 Manual of Gasoline Tiller GT1050B...
- Page 2 Warning This manual is one of the important random documents of micro-tillage machine. If the micro-tillage machine is transferred, it should be transferred together. Please read this manual carefully before use, and strictly follow the instructions for operation, micro-tillage machine is safe, if not according to the provisions of the operation, light will cause damage to micro-tillage machine, heavy will occur personal injury and death accidents.
- Page 3 the special adjustment recommended by the manufacturer). F) Safety glasses should be worn during any operation such as preparation, operation and maintenance. 2.3:Operation A）hands and feet must not be close to or under rotating parts. B）Special care should be taken when operating on (or through) gravel pavements, pavements or highways to guard against potential dangers, pay attention to traffic conditions and do not carry passengers.
-
Page 4: Chapter Two Safe Operation Rules
The machine should be stored indoors and away from the source of fire. The engine should be cooled before the machine is stored indoors. If the cultivator is to be stored for a long time, the operation manual should always be kept as important data. Chapter Two safe operation rules A、machine conditions... - Page 5 manual before starting, and start after confirming safety. The oil door, clutch and other parts of the micro-tillage machine are flexible and reliable. The rotating parts have no lag in rotation and the automatic return handle is in normal position before starting. The automatic stop device of the blade shall not be controlled by means other than manual control.
-
Page 6: Chapter Four Main Technical Parameters
A、The position and quantity pasted on the machine regulations when the machine is running. Attached to the handrail rail, Quantity 1 sheet/setAffixed near the engine muffler, Quantity 1 sheet/set No overspeed operation Against the windshield of the engine,Quantity 1 sheet/setAttached to the engine tank,Quantity 1 sheet/set blade is in operation On the fender,Quantity 1 sheet/setOn the fender,Quantity 1 sheet/setOn the fender,Quantity 1 sheet/set... - Page 7 Executive Standard:JB/T 10266-2013 Sequence Items Units Specification number 1WG 4.0-105FQ-ZC Specifications and models Rated power Auxiliary Rated Speed r/min 3600 engine Single cylinder, air-cooled type gasoline engine Working condition dimensions (length * three 1630*1050*920 width * height) four working width 1050-1400 Engine output Direct connection...
-
Page 8: Chapter Six Installation Method
Chapter Five Form a complete set of requirements Supporting power type、Designation: 1WG4.0-70FQ-ZC、1WG 4.0-105FQ-ZC、CB engine The engine of type v micro - plough is air - cooled gasoline engine. B、Supporting engine form and model: Engine brand and model:1WG4.0-70FQ-ZC、1WG 4.0-105FQ-ZC、CB enginetype I micro-tillage machine is 170F/P gasoline engine. C、Requirements for supporting ploughing knife: 1WG4.0-70FQ-ZC The width of the design blade of type I micro-tiller is all:700mm,1WG 4.0-105FQ-ZC、CB engine the width of the design blade of type I... - Page 9 f）Assembly of joystick:Will shift lever from the direction of bearing seat through the slot of shifting support block, inserted into a slot in the shift arm, with a split pin Φ 3.2 x 16 fixed. g）Put the shift lever in "neutral" position. B、Installation and adjustment of cables: a)Adjust throttle cable.
- Page 10 ◆ If the oil level of the gasoline engine is close to the lower part of the oil ruler, clean oil for the gasoline engine should be added to the neck of the oil injection hole. ◆ The oil of a gasoline engine is not interchangeable with that of a diesel engine Warning! ◆...
-
Page 11: Chapter Seven Operating Instructions
Chapter Seven Operating instructions Warning! 1、It is forbidden to run the engine without air filter. Oil with upper and lower cutting lines should be added into the filter, otherwise the engine will wear out faster. 2、Before starting the engine, the shift lever must be placed in neutral position and the clutch handle is separated! Otherwise there will be casualties or property damage accidents!! 3、In case of emergency, the engine should be quickly shut down and the... - Page 12 and pay attention to whether you feel it in place, then hold the right handrail with your right hand. ③ The right hand should appropriately increase the throttle, speed up the operation, grasp the clutch handle, clutch joint, micro-tillage machine is running at a slow speed of about 5km/h.
-
Page 13: Maintenance
of the tension bar line, and the engine combustion chamber is free of pressure and automatically stops and shuts down. C、Connection and use of supporting machines and tools When rotary tillage is needed, remove the wheels, put the hexagon pipe sleeve of rotary tillage device at both ends of the driving shaft of the walking mechanism, and fix it axially with a small pin shaft. - Page 14 "precaution is given priority to" maintain work. In order to maintain a good technical record of micro-tillage machine and extend its service life. A、Running Please refer to the operation manual for engine run-in. The new or overhaul of the micro-tillage machine, should first work in no-load conditions for l hours, in light load conditions for 5 hours immediately after the heat release of the transmission and engine crankcase all lubricating oil.
- Page 15 Remove dirt, weeds, oil and √ keep it clean Trouble shooting √ √ Adjusting control unit √ clutch friction plate √ Gears and bearings D、Long-term storage of micro-tillers In order to prevent corrosion, the following measures should be taken when the micro- cultivator needs to be stored for a long time.
- Page 16 When you turn the throttle switch. Engine acceleration or deceleration performance is poor, that is to say, the throttle tension line should be adjusted. Methods refer to chapter 6. Note: 1、 Repeatedly turn the throttle switch 2-3 times and confirm the acceleration and deceleration performance of the engine。...
- Page 17 The friction disc group shall not touch the Add proper adjusting pad after bearing end face in the clutch housing bearing The inner bearing of the ejector is burnt out Replace the gearbox with oil ※Spring fatigue failure replace Clean the combination surface of fork Clutch fork shaft combination transfer Skidding shaft and movable pressure plate to...
-
Page 18: Chapter Eleven Range Of Application
Reverse shift fork O ring failure Replace the o-ring Ф 11.2 x 2.65 shaft leaking oil The clutch fork shaft O ring failure Replace the o-ring Ф 11.2 x 2.65 leaks oil Oil leakage at shift O ring failure Replace the o-ring Ф 11.2 x 2.65 shaft The bolt is loose at this point Tighten the bolts at this point... - Page 19 Chapter Twelve Structural schematic diagram and circuit 1、The clutch handle 2、arm-rest frame 3、shift level 4、clamp handle 5、engine 6、Drag bar 7、fender 8、bumper 9、road wheel Chapter Thirteen list of attachments A、Factory standard configuration list Micro-tillage machine a complete machine, dry land knife a pair, paddy field knife a pair, a set of random documents, random tools a set. B、Shopping list Sequence designation...
- Page 20 twelve Engine wearing parts Refer to engine manual and atlas...
