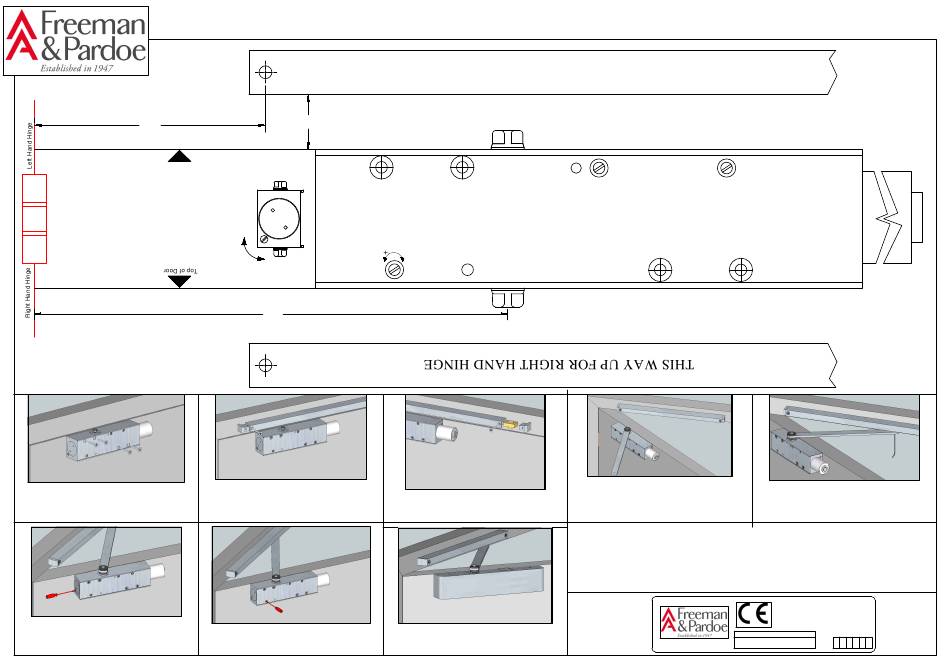

Freeman & Pardoe BM3SE Quick Start Manual

\Volumes\NO NAME\FP logo Colour.jpg
100
Top of Door
\Volumes\NO NAME\Work \Templates \BM3SE\3D\1.png
1. Use the template as a guide, fit the closer body to the
door using the screws provided
\Volumes\NO NAME\Work \Templates \BM3SE\3D\6.png
6. Adjust the Speed control to suit.
BM3SE
24
-
LATCH
+
SPEED
205
\Volumes\NO NAME\Work \Templates \BM3SE\3D\2.png
2. Use the template as a guide to fit the track to the door
frame. Use a spirit level to ensure both the track and the
closer body are level.
\Volumes\NO NAME\Work \Templates \BM3SE\3D\7.png
7. Adjust the Latch control to suit.
THIS WAY UP FOR LEFT HAND HINGE
This is factory set,
you do not need to
-
\Volumes\NO NAME\Work \Templates \BM3SE\3D\3.png
3. Insert the slider, arm rivet and end block; 4.
then secure the track using the screws provided.

Maintenance:

1.
2.
\Volumes\NO NAME\Work \Templates \BM3S\3D\8.png
8. Fit the cover using the screws provided.
This is factory set,
you do not need to
adjust. adjust.
\Volumes\NO NAME\Work \Templates \BM3SE\3D\4.png
5.
Fit the arm to the closer, see separate instruction sheet
for Swingfree or Holdopen.
Periodically apply light oil to the arm knuckle joint.
Check all screws and the pinion bolt are tight.
\Volumes\NO NAME\Screen Shot 2018-05-23 at 10.41.55.png
\Volumes\NO NAME\FP logo Colour.jpg
1121-CPR-AE5014
EN 1155: 1997:+A1:2002/AC:2006
EN 1154:1996/A1:2002/AC:2006
Use a spirit
level to
ensure both
the closer
body and
the track are
level.
\Volumes\NO NAME\Work \Templates \BM3SE\3D\5.png
Using the hex key provided fix the arm to the rivet in the
slider.
Freeman & Pardoe
Tything Road
Alcester
B49 6ES 18
