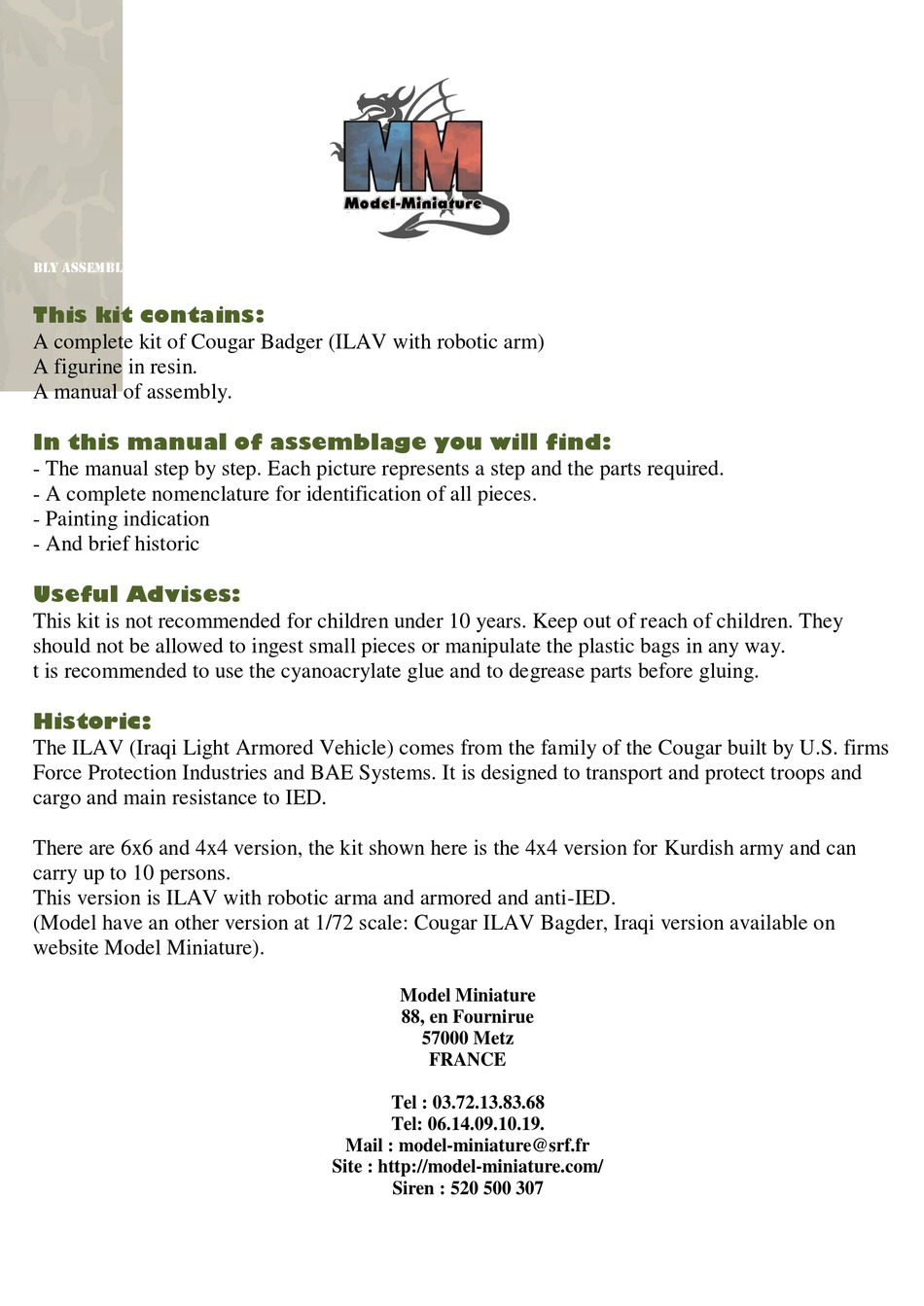

model-miniature MM-R220 Quick Start Manual

bly assembly instructions

This kit contains:

A complete kit of Cougar Badger (ILAV with robotic arm)
A figurine in resin.
A manual of assembly.

In this manual of assemblage you will find:

- The manual step by step. Each picture represents a step and the parts required.
- A complete nomenclature for identification of all pieces.
- Painting indication
- And brief historic

Useful Advises:

This kit is not recommended for children under 10 years. Keep out of reach of children. They
should not be allowed to ingest small pieces or manipulate the plastic bags in any way.
t is recommended to use the cyanoacrylate glue and to degrease parts before gluing.

Historic:

The ILAV (Iraqi Light Armored Vehicle) comes from the family of the Cougar built by U.S. firms
Force Protection Industries and BAE Systems. It is designed to transport and protect troops and
cargo and main resistance to IED.
There are 6x6 and 4x4 version, the kit shown here is the 4x4 version for Kurdish army and can
carry up to 10 persons.
This version is ILAV with robotic arma and armored and anti-IED.
(Model have an other version at 1/72 scale: Cougar ILAV Bagder, Iraqi version available on
website Model Miniature).
Model Miniature
88, en Fournirue
57000 Metz
FRANCE
Tel : 03.72.13.83.68
Tel: 06.14.09.10.19.
Mail : model-miniature@srf.fr
Site : http://model-miniature.com/
Siren : 520 500 307
