Eco solar lights T120 User Manual

12 and 30 Watt Eco Range Solar
Area Light User Manual

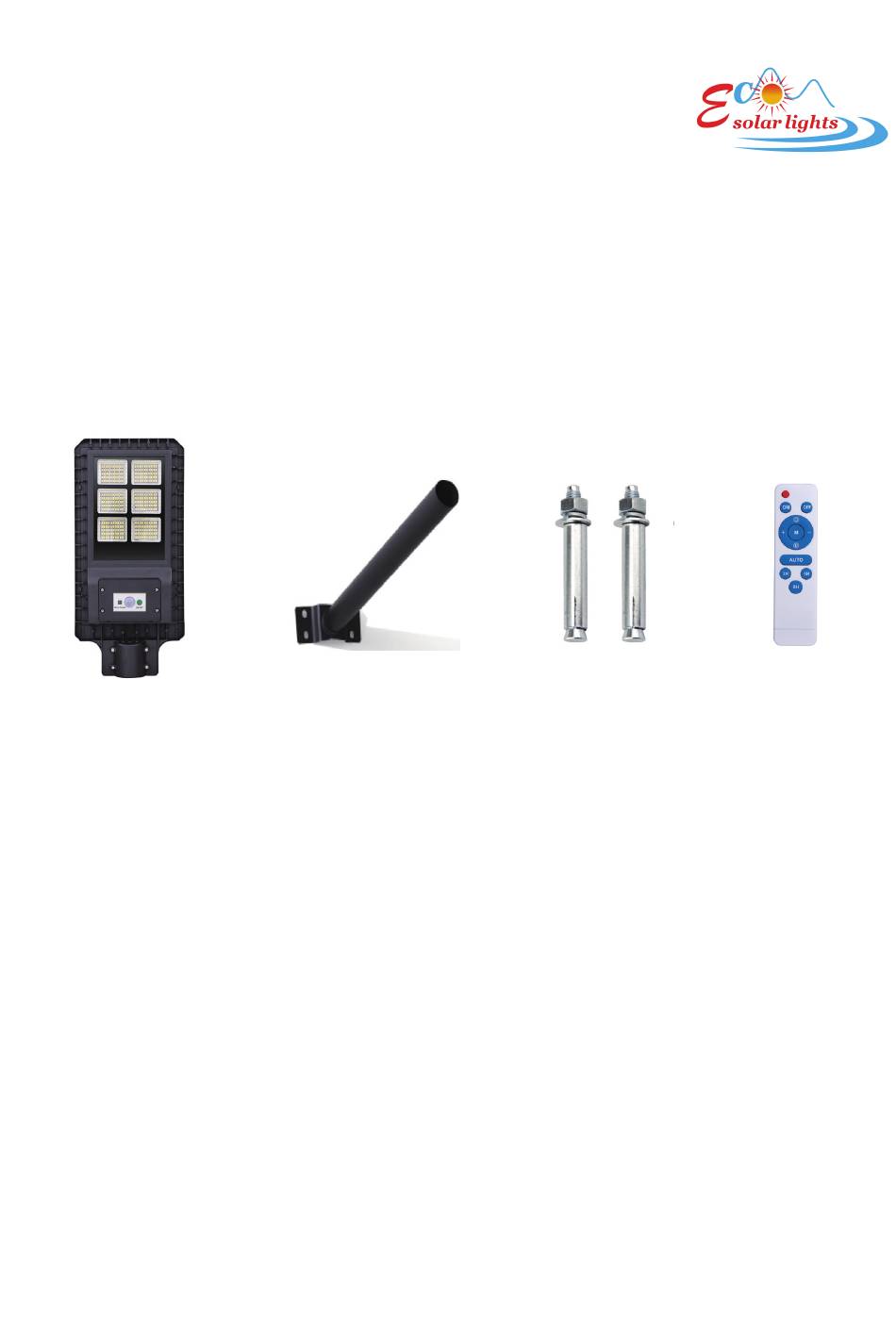

Contents in Package

1 : Solar Area Light
3 : Expansion screw
1

Remote Control Setting:

The remote controls ON/OFF, timer and passive infrared (PIR) sensor settings. The P.I.R. is
activated by movement and acts as an energy saving/safety feature. The light will operate
at a remote selectable output of 25%, 50% or 75% until the PIR is activated where it will
operate at 100% until no movement is detected returning to the preselected output.
The lights operating period can be set to 3 hours, 5 hours, 8 hours and is set by default to
12 hours or dusk till dawn, whatever occurs first. These settings are changed via the
remote control.

AUTO Mode:

When AUTO mode is selected the light will turn on automatically at dusk and off at dawn.
The LED output when the PIR is not activated will be automatically adjusted to an optimum
level depending on the battery capacity. When the PIR is activated it will operate at 100%
until no movement is detected returning to the automatically selected output
1 Pc
4 Pcs
2
2 : Wall bracket
4 : Remote control
3
1 Pc
1 Pc
4
