EDC LITE INSTALL INSTRUCTIONS
Assembly time, approximately 10-15 minutes. Difficulty: Easy.

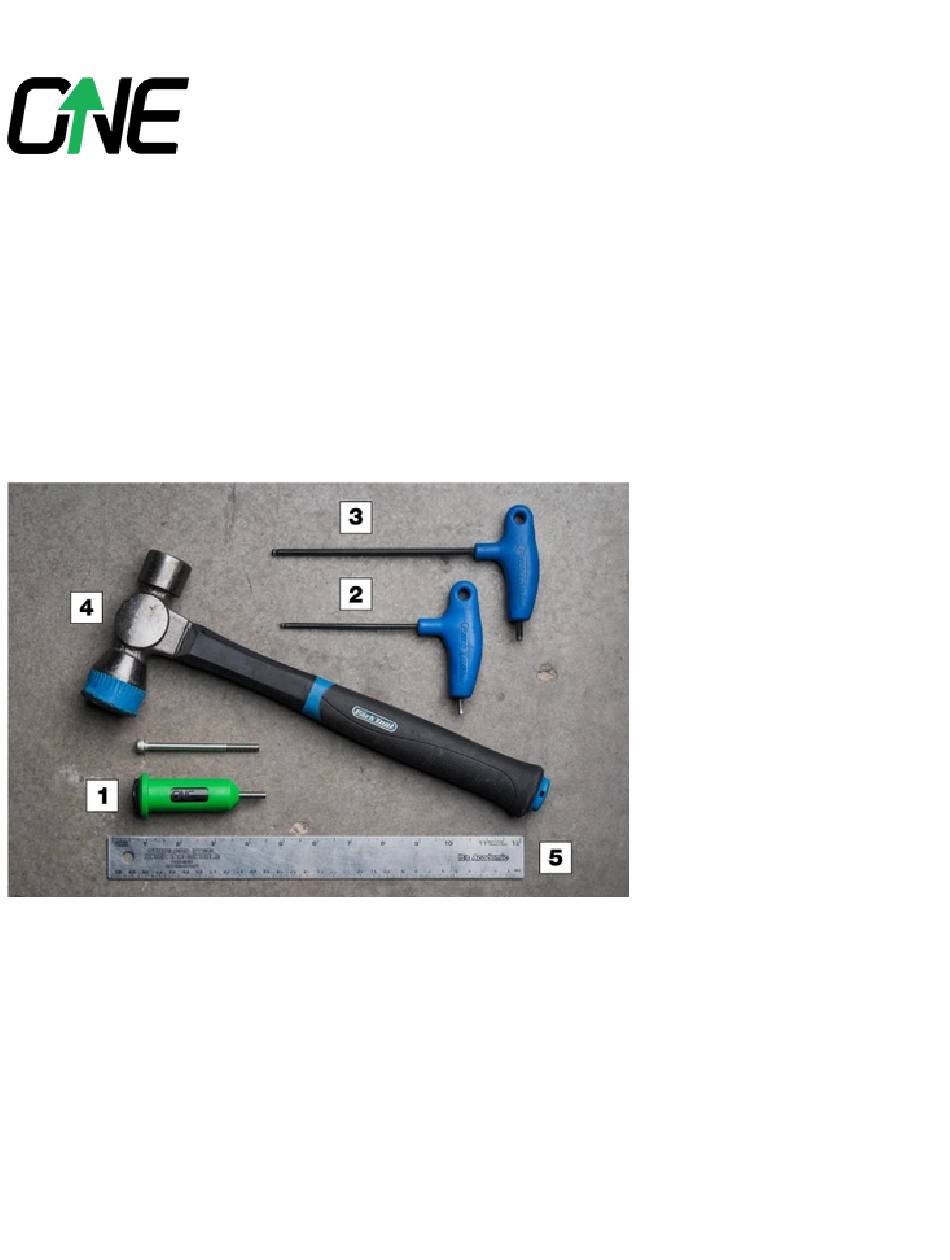

Things You Will Need
1. OneUp EDC Lite Kit
2. 4mm Hex (Long Handle Required)
3. 5mm Hex
4. Mallet or Hammer
5. Ruler or Tape Measure
The EDC Lite Kit contains the following pieces:
1. OneUp EDC Multi-Tool
2. OneUp EDC Lite Carrier
3. OneUp EDC Lite Tool Clip
4. Star Nut Setter Bolt
5. EDC Lite Bolt
Advertisement
Summary of Contents for oneup EDC LITE
- Page 1 2. 4mm Hex (Long Handle Required) 3. 5mm Hex 4. Mallet or Hammer 5. Ruler or Tape Measure The EDC Lite Kit contains the following pieces: 1. OneUp EDC Multi-Tool 2. OneUp EDC Lite Carrier 3. OneUp EDC Lite Tool Clip 4.
-
Page 2: Install Instructions
Your EDC LITE kit contains everything you need to install and store the EDC Multi Tool in your stem/steerer tube and includes the 9 function EDC Multi Tool. We recommend that you read ALL steps of the install process before you begin. - Page 3 STEP 3 : SCREW IN THE STAR NUT SETTER BOLT (LONG BOLT) 10 FULL TURNS. Do not screw in the Setter Bolt until it bottoms out, as this will lead to your Star nut not being set deep enough to install EDC Lite...
- Page 4 STEP 4: HAMMER THE STAR NUT SETTER BOLT DOWN, UNTIL THE TOP OF THE BOLT IS FLUSH WITH YOUR TOP CAP COUNTERBORE. Be careful to ensure that the bolt stays straight (vertical) as you hammer it down. Tap the side of the bolt if you need to straighten it.
- Page 5 STEP 5: REMOVE YOUR STAR NUT SETTER BOLT AND TOP CAP STEP 6: INSERT THE EDC LITE TOP CAP INTO YOUR STEERER TUBE AND ALIGN THE TOOL SLOT TO YOUR PREFERRED DIRECTION The EDC Carrier should easily insert into your steerer tube by hand. If a tight fit, DO NOT hammer the carrier Ensure your steerer tube is burr free.
- Page 6 The tool slot is the rectangular hole in the EDC Lite Carrier which the EDC Multi-Tool fits into. The OneUp logo on the Tool Clip is horizontal when the teardrop is pointing to the driveside. STEP 7: INSTALL THE EDC LITE BOLT & TIGHTEN USING A LONG HANDLE 4mm HEX (max 2Nm) If your headset is already installed and tight you do not need to adjust it.
- Page 7 When you get home from a ride retighten with a long handled 4mm Hex so that you can correctly align the tool slot. STEP 8: INSERT YOUR EDC TOOL AND EDC LITE TOOL CLIP.
- Page 8 HOW TO INSTALL THE EDC CLIP The EDC Lite Tool Clip MUST be installed on to the Multi-Tool with the debossed arrow pointing towards the tooth on the side of the Flathead screwdriver. See picture below. To easily remove your tool from the clip wiggle the tool as you pull the pieces apart.
- Page 9 Congratulations, you have now successfully installed your EDC LITE. NOW GO RIDE! If you are having any problems please first double check you have correctly completed each of the steps above. If you are still having trouble please email us at support@oneupcomponents.com...
