Triumf 37750 Instructions

Technical specifications:
Order nr.
Drive
Tolerance
Display resolution
Range
Teeth
Length
Weight
Battery
Operation time
Working temperature
Store temperature
Relative humidity
Automatic ON/OFF
Description
LCD display
LED
Warning: Read this manual before using please . Failure to do so can result in serious injury.
Contents:
1.

Specifications.

2. Instructions.
2.1 How to select the unit measurement scale
2.2 How to select torque settings and use the torque wrench
2.3 How to set peak and trace modes
2.4 Memory
2.5 Turning off
2.6 Batteries install and replacement
3.

Important safeguards

4. Important safeguars
5. Store in a clean , dry place
6. Use a soft dry, clean cloth to clean the wrench and L.C.D panel.
7. Basic safety precaultions should be observed especially when using the wrench on or near children and disabled
persons.
8. Never submarge the wrench in water or any other liquids
9. Never clean the wrench with organic solvents
10. Use the wrench only for the intended use described in this manual
11. Do not exceed the permitted torque value for the wrench

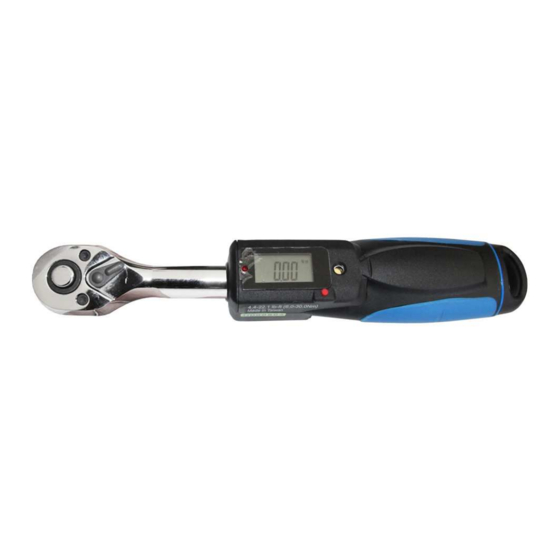

Digital torque ratchet handle
1/4", range 1-30 Nm, length 200mm ( 37749 )
3/8", range 16-80Nm, length 230mm ( 37750 )
1/2", range 20-100Nm, length 275 mm ( 37682 )
37750
1/2"
2%
0,1Nm
20-100Nm
72
275mm
680g
15-90% - without condensation
Buzzer
ON / OFF Battery cap
www.triumftools.sk
37749
3/8"
3%
0,1Nm
16-80Nm
72
230mm
450g
CR2032 x 2
55 hours
-10°C – 60°C
-10°C – 60°C
after 70 seconds
Memory
37682
1/4"
4%
0,01Nm
6-30Nm
72
200mm
260g
Max. value/
Tracking
