Summary of Contents for Bertello Bertello One

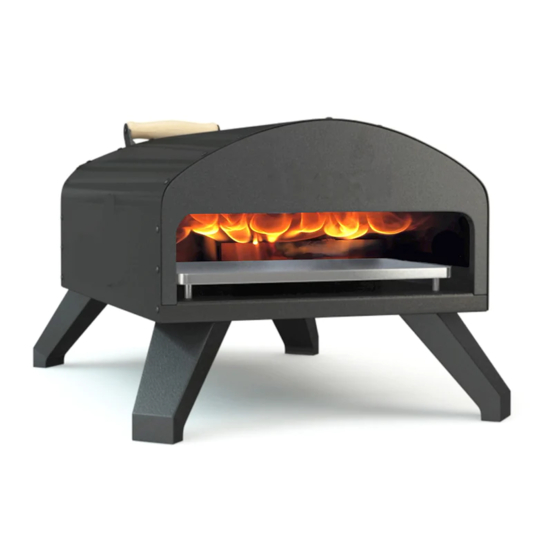

- Page 1 GAS BURNER USER MANUAL Bertello LLC PO Box 397 Afton, MN 55001 651-333-3934 info@Bertello.com Model: Bertello One DANGER WARNING: Do not try to light this appliance without...
- Page 2 If you smell gas: reading the Lighting Instructions section of this manual 1. Shut off gas to the appliance 2. Extinguish any open flames 3. If odor continues, keep away from the appliance and immediately call your fire department. Leaking as may cause a fire or explosion which can cause serious bodily injury or death, or damage to property.
- Page 3 10. Do not put a oven cover or anything flammable on, or in the storage area under the barbecue. 11. Your Bertello Oven should never be used by Children. Accessible parts of the oven may be very hot. Keep young children away while it is in use.
- Page 4 - Do not attempt to correct the problem yourself. - Call your fire department. 25. Do not use indoors. This oven is designed for outdoor use only. If used indoors, toxic fumes will accumulate and cause serious bodily injury or death. 26.
- Page 5 CAUTION The oven should be thoroughly cleaned on a regular basis. PARTS LIST (WITH GAS BURNER)
- Page 7 PARTS LIST (WITH GAS BURNER) 1. Gas Burner 2. Mounting holes 3. Burner control knob 4. Oven opening for gas burner 5. Gas Burner mounting bolts 6. Hose connection on gas burner 7. Hose 8. Hose connector to propane tank 9.
- Page 8 STEP 1 Connect hose to gas burner with a wrench. Do not over tighten.
- Page 9 STEP 2 Connect other end of hose to propane tank. STEP 3 Remove the stone, and slide the 'Wood Burning Tray for Propane Gas Burner' (14) to the back of the oven.
- Page 10 STEP 4 Slide gas burner into back opening of oven. Position two holes on gas burner over the two bolt heads.
- Page 11 STEP 5 Slide gas burner holes over the two bolt heads...
- Page 12 STEP 6 Tighten both bolts with allen wrench...
- Page 13 STEP 7 Slide the pizza stone into the oven...
- Page 14 STEP 8 Rotate propane valve to open position. Next, push gas burnker knob inwards (towards oven) then turn counter clockwise...
- Page 15 OFF POSITION HIGH...
- Page 16 STEP 9 Turn the knob to counter clockwise to the HIGH position while pushing the knob inwards. You will hear a click sound (which is the ignitor). Continue holding the knob inwards for 5 seconds. Holding the knob inwards for 5 seconds is required for the flame to stay lit.
- Page 17 STEP 10 If you cannot get the burner to ignite. Remove back access hatch and ignite manually with a long match or long lighter. Use heat resistant gloves for safety. To ignite manually, continue to hold knob in for 5 seconds while igniting and position knob in HIGH position.
- Page 18 Bertello Oven connection. STORAGE AND/OR NONUSE ● The gas must be turned off at The liquid propane cylinder then The Bertello Oven is not in use. ● When the Bertello Oven is stored indoors, the gas supply must be...
- Page 19 ● When the LP cylinder is not disconnected from the Bertello Oven, the appliance and LP tank must be kept outdoors in a well-ventilated space. ● The Bertello Oven should be checked for gas leaks and any obstructions in the burner tubes before using. (See Section: “Maintenance/Annual Maintenance).
- Page 20 Type 1 connection in the tank valve. This Type 1 coupling allows you to make a fast and totally safe hookup between your gas Bertello Oven and your liquid propane tank. It eliminates the chance of leaks due to a POL fitting that is not properly tightened.
- Page 21 The proper filling methods for the filling of your cylinder are by weight or volume, as described in NFPA 58. Please make sure your filling station fills your LP cylinder by weight or volume. Ask your filling station to read purging and filling instructions on the LP cylinder before attempting to fill.
- Page 22 If there is a leak, turn off the gas and tighten the fitting. Turn the gas back on and recheck with the soap and water solution. If the leak does not stop, do not use your Bertello Oven. 4) When leak checking is complete, turn gas supply OFF at the source and rinse the connections with water.
- Page 23 watching for bubbles. If bubbles form or if a bubble grows, there is a leak. WARNING: If there is a leak at connections turn OFF the gas. DO NOT OPERATE THE OVEN. When leak checks are complete, turn gas supply OFF at the source and rinse connections with water.
- Page 24 dispersion. ● To fill, take the LP cylinder to a gas propane dealer, or look up “gas-propane” in the phone book for other sources of LP gas. WARNING: We recommend that your LP cylinder be filled at an authorized LP gas dealer, by a qualified attendant, who fills the tank by weight.
- Page 25 immediately. Liquid Propane (LP) Cylinder(s) ● The joint where the hose connects to the LP cylinder must be leak tested each time the LP cylinder is reconnected. For example, test each time the LP cylinder is refilled. ● Be sure the regulator is mounted with the small vent hole pointed downward so that it will not collect water.
- Page 26 LIQUID PROPANE CYLINDER REQUIREMENTS Note: Your retailer can help you match a replacement tank to your Bertello Oven. The LP cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders, T.C. LIGHTING DANGER Failure to wait 5 minutes to allow the gas to clear if the Bertello Oven does not light, may result in an explosive flame-up which can cause serious bodily injury or death.
- Page 27 1. Turn the cylinder on by slowly turning the cylinder valve counterclockwise. 2. Turn the BURNER control knob to START/HI 3. You will hear the electronic ignition sparking. 4. Check that the burner is lit by looking through the front of the oven or through the TO EXTINGUISH Turn burner control knob clockwise to the OFF position.
