- Page 1 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e NetmateLite Basic Web-based SNMP Card for UPS Installation and Setting Instruction...
-
Page 2: Installation Requirement
Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e Hello Installation Requirement The monitored UPS with RS232 communication port or internal slot; The computer(best administrators computer) with Ethernet port A complete network environment. - Page 3 Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 1. Ports Definition NetmateLite/NetmateLite Mini/NetmateLite SE Available ① Ethernet Port: UTP 10/100M RJ45 Ethernet port. ② USB Port: For initial configuration; ③ S1 (Green): Running indicator, flash is normal; ④ S2 (Green): SNMP running indicator, flash is normal, flash frequency is determined by SNMP inquire cycle;...
- Page 4 ⑧ Gold Finger: Insert in UPS internal slot; NetmateLite Mini1/NetmateLite Mini2 Available ① Ethernet Port: UTP 10/100M RJ45 Ethernet port. ② PW (Red): Power status indicator, often light shows device power is connected, no light means not connect power.
- Page 5 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 2. Installation 2.1 Network Dirgram...
-
Page 6: Hardware Installation
Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 2.2 Hardware Installation External SNMP Cards Procedure: ① Use DB9 pin cable connect external card with UPS by RS232 port ② Use T568B network cable connect to network ③... - Page 7 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 2.3 Set Network Segment For initial configuration, we should set a same network segment before login in web interface, the default IP address of SNMP cards are: 192.168.0.100, so network segment should be set like...
- Page 8 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 2.4 Command “ping” Before we input input the user name and password, we can check the dault IP address whether available in your network by command “ping”...
- Page 9 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 2.5Login Web Monitoring Interface All above steps finished, open a web browser(suggest IE/firefox/chrome etc), input default IP address 192.168.0.100 and enter Input user name and password , default user name & Password are both “admin”.
- Page 10 System Information Device Information Current Status Remote Control 3.1.1 System Information This page is to display UPS basic information and network information. The info shown here are provided by NetmateLite SNMP card itself and parameter settings...
- Page 11 F, System Installation Position This part will automatically display when users finish the [SNMP Setting] G, Other information will be provided by NetmateLite monitoring system 3.1.2 Device Information This part is to display each part of device information (UPS basic information, Battery Information and Rated Information).
- Page 12 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 3.1.3 Current Status This part is to display the UPS current running status. We can clearly know about the UPS current running status，when an abnormal alert happens, figures will turn in red font.
-
Page 13: Parameter Setting
Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 3.1.4 Remote Control This part is to set switch on/off control command for instant self-test, switch off, restart UPS and beeper. 3.2 Parameter Setting Sub-Menu: System Setting ... - Page 14 In this page, user can modify the IP address, subnet mask, gateway information, NTP server, time zone and work mode of NetmateLite according to the real network segment, but the IP address should not be conflicted with other device IP in a same network.
- Page 15 The basic setting is convenient for centralized monitoring and management when there are a lot of UPS. Users can fast and sinply inquire every UPS Trap Setting Receiver IP Address is used to receive traps sent by NetmateLite. Users can set 6 Trap receivers IP...
- Page 16 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e address at most. Support to choose whether receive the traps. This part is to set SNMP users’ IP address, community and relevant authorization. Users can set 6 SNMP user IP address, and can choose the authorization which includes No Authorization, Readable and Readable/Writeable.
- Page 17 3.2.5 User Setting This page is to set the user information which is used to login NetmateLite via Web. 3.2.6 IP POWER Setting This part is to set the authorized address, all the authorized address can be remote centralized...
-
Page 18: History Event
Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e 3.3 History Event This page is to display history events. Record includes the Date/Time/ Log Content. - Page 19 Richcomm System Technologies Co.,Ltd Tel:+86 20 6685 4299 Fax: +86 20 8230 6916 www.richcomm.com.cn/e Thank You For Use...
Need help?
Do you have a question about the NetmateLite and is the answer not in the manual?
Questions and answers

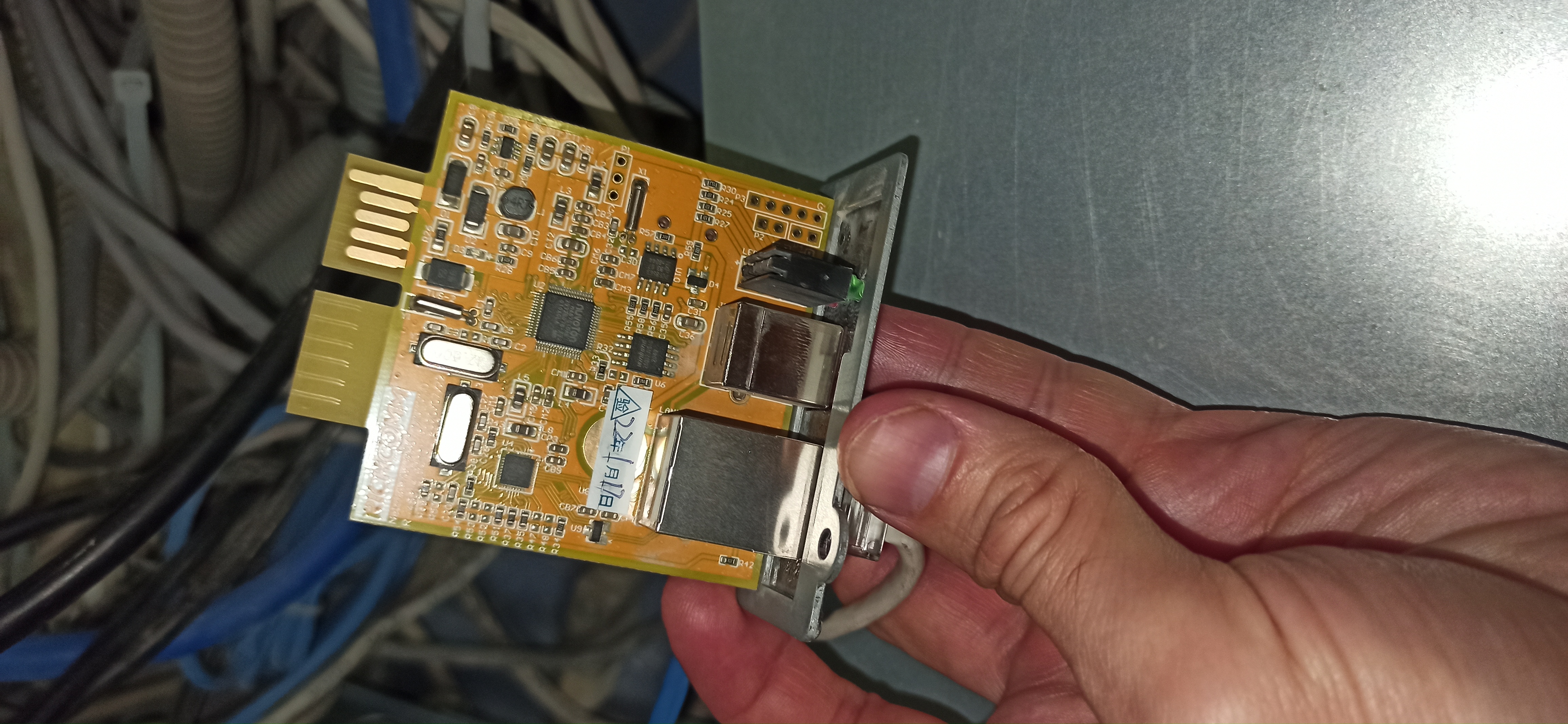

Как сбросить пароль на карте NN67501 на заводские настройки, если забыли пароль для входа?
