Summary of Contents for ELEVATE OUTDOOR Stabilizer-Jack-HC-2

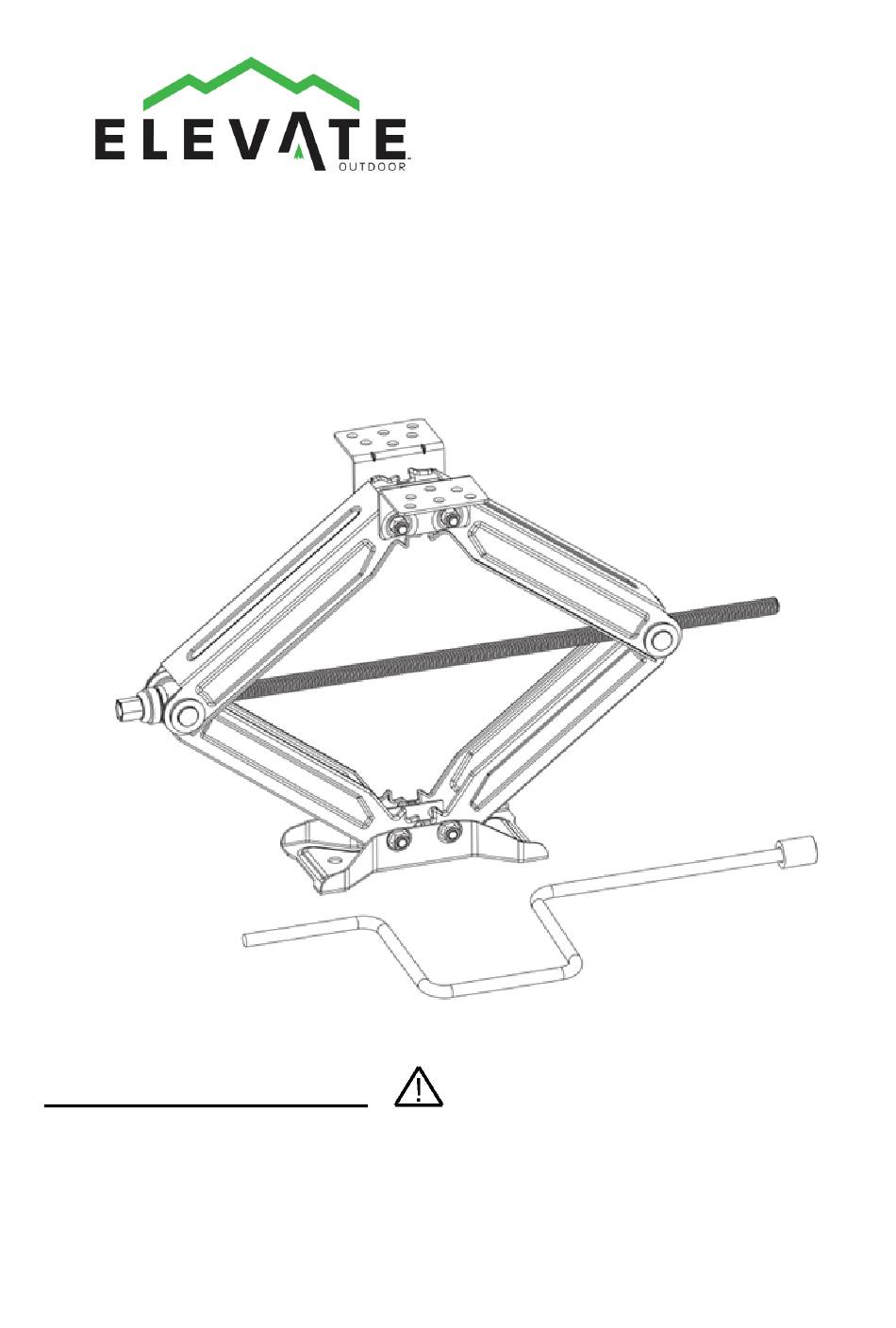

- Page 1 Instructions for Part # Stabilizer-Jack-HC-2 General Guidelines Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Rev. 210617 1-888-651-3431 Page1...
- Page 2 INTENDED USE • Stabilizer jack are designed for leveling and stabilizing recreational vehicles, campers and trailers. • Anything that extends beyond the lines is at risk of damage or destruction from off-road driving, entering or exiting driveways, or uneven terrain. •...
- Page 3 Tools and Components Required C-clamps 50’string Electric drill 1/8" drill bit 11/32" drill bit Arc welder(Used only if welding jacks to frame) 9/16” socket Appropriate hardware (Required if not welding) Ratchet w/extension Lithium grease Appropriate safety protection (gloves, eye protection, etc.) GENERAL SAFETY RULES WARNING: Read and understand all instructions.
- Page 4 • Always check for damaged or worn out parts before using the jack. Broken parts will affect the jack operation. Replace or repair damaged or worn parts immediately. • Do not force the jack. Do not attempt to lift more than the maximum lifting capacity of 5000-lb. Where to Find the Correct Location for Installation For recreational trailer or 5th wheel ：...
- Page 5 Installation Step 3: For any compatible vehicle, either in the front or the rear of the vehicle, place the jack closest to the frame. Make sure to stay within the previously placed string's perimeter. Hold the completely collapsed jack in place with C-clamps or Vice Grips. The handle receivers are to be placed outward, but must not extend past the trailer.
- Page 6 Step 6: For Welding Installation • Use welding manufacturer's safety recommendations during installation. • Once jack placement is determined, weld the mounting plates to the vehicle's frame. Use four 1" welds for this step (Figure 2). • Use lithium grease to lubricate the scissor jack leveler screw. This step should be repeated yearly.
- Page 7 Product Warranty and Liability GENERAL PRODUCT WARRANTY: Products purchased from the Authorized Dealer (original place of purchase) or Merchant (“Dealer”) will be free of defects in material and workmanship at the time of receipt, and will meet the specifications stated at the place of purchase transaction or online at the Dealer’s website, under normal use and service when correctly installed, operated and maintained.
