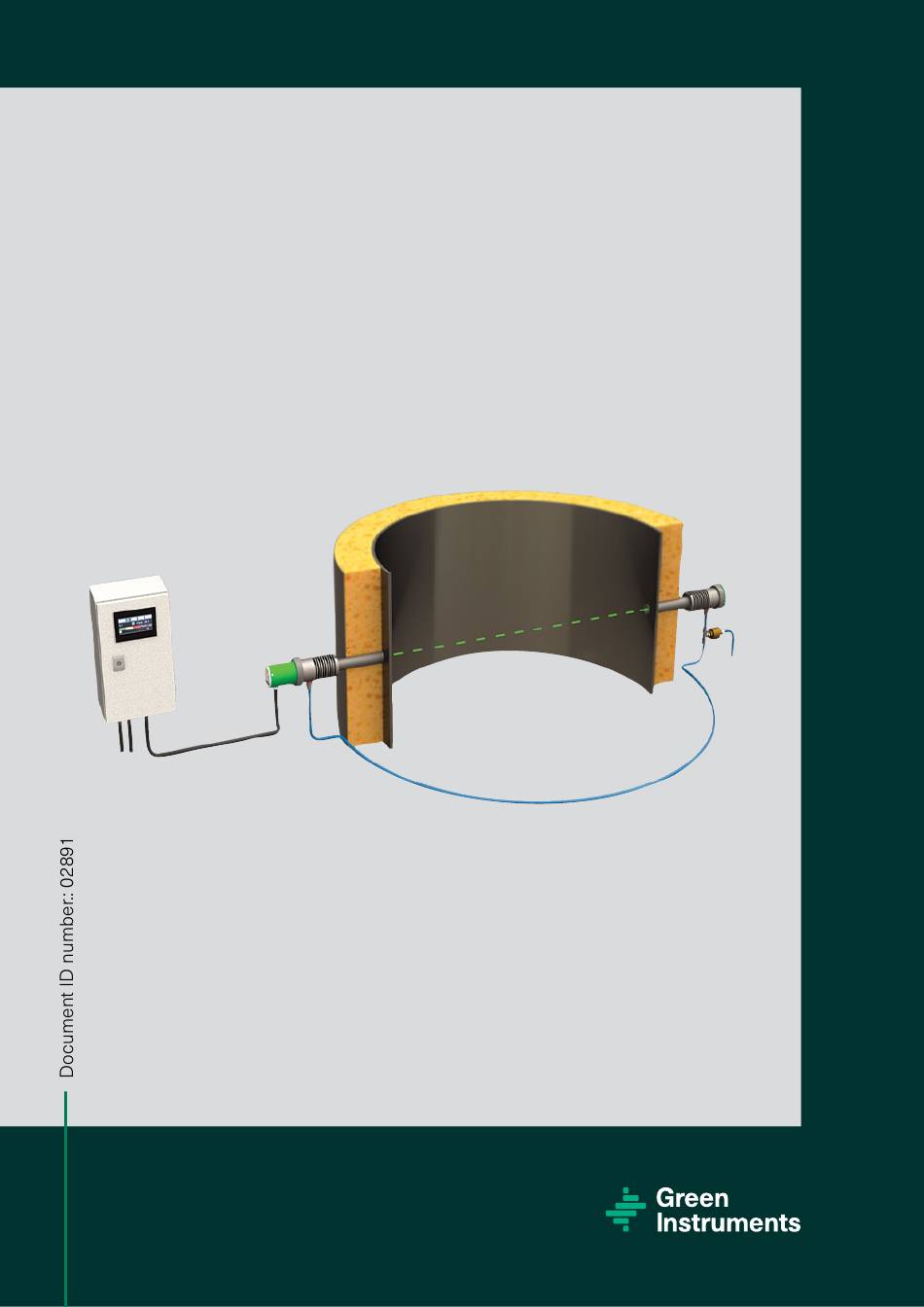

GREEN INSTRUMENTS G16 Instruction Manual

Smoke density monitor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

G16

Smoke Density Monitor

Instruction Manual

Table of Contents

Need help?

Do you have a question about the G16 and is the answer not in the manual?

Questions and answers

Enrico Congson

March 20, 2025

How to change the status number

2 comments:

Mr. Anderson

March 20, 2025

To change the unit address on the GREEN INSTRUMENTS G16:

1. Press and hold the ZERO button for about 5 seconds until all signal strength LEDs turn ON.
2. Release the ZERO button, then press and hold the SPAN button until the unit address appears on the signal strength LEDs.
3. Press the ZERO button to change the unit address to the desired number (e.g., 1 or 2).
4. Release the ZERO button and check if the address is correct.
5. If correct, press and hold the SPAN button until all signal strength LEDs turn ON.
6. To save the new settings, press and hold the SPAN button, then immediately press and hold the ZERO button for about 5 seconds until all signal strength LEDs turn ON.

Addresses 3-15 are not in use.

This answer is automatically generated

Enrico Congson

March 20, 2025

@Mr. Anderson what are the steps to change the sensor status code for example 0000 0000 0000 0000

Enrico Congson

March 20, 2025

what are the steps to change the sensor status code for example 0000 0000 0000 0000

1 comments:

Mr. Anderson

May 14, 2025

The sensor status code (Green/Yellow/Red) on the GREEN INSTRUMENTS G16 is not changed manually. It changes automatically based on the system's alarm and warning status:

- Green: No alarm or warning
- Yellow: Active warning
- Red: Active alarm

These colors indicate the global alarm status and cannot be manually configured.

This answer is automatically generated

Summary of Contents for GREEN INSTRUMENTS G16

Page 1 Smoke Density Monitor Instruction Manual...
Page 2 Page 2 of 46...
Page 3: Table Of Contents
G16 Smoke Density Monitor Contents ......................3 ONTENTS ....................6 NTRODUCTION ......................6 BOUT THIS ANUAL ....................7 NQUIRIES AND EEDBACK ......................7 BOUT THE YSTEM 1.3.1 System components ..................7 1.3.2 Optional components..................8 ....................9 PECIFICATIONS .................... 11...
Page 4 Contents ......................38 ERO CALIBRATION ....................38 PAN CALIBRATION ......................38 PAN CALIBRATION ....................40 OMMISSIONING ..................... 40 TART OF THE SYSTEM ........................40 ALIBRATION ..................... 40 ETTING OF LARM EVELS ..................40 ETTING OF IGNAL OUTPUTS ....................41 AINTENANCE 10 T ..................
Page 5 G16 Smoke Density Monitor Table of Figures 5-1: I G16 S IGURE NSTALLATION OF THE MOKE ENSITY ONITOR 5-2: M IGURE OUNTING OF A SUPPORT AND ALIGNMENT BRACKET 5-3: M IGURE OUNTING OF ODULE UDIT ODULE OPTIONAL RANSCEIVER 5-4: M...
Page 6: Introduction
Green Instruments A/S reserves the copyright of the manual. Without prior written permis- sion of Green Instruments A/S, the manual may not be copied and given to unauthorized people...
Page 7: Inquiries And Feedback
G16 Smoke Density Monitor 1.2 Inquiries and Feedback All claims and inquiries for spares shall be addressed to Green Instruments A/S or our distributors. In all correspondence or when ordering spare parts, please carefully state the equipment type and serial number, which can be found on the label on the equipment.
Page 8: Optional Components
• A sealing air system including 9m purge air hose and a purge air distributor. • A G16 reflector module assembly, which contains a precision reflector to direct the light beam back to the transceiver assembly. • A connection cable of 15 m for connection between the transceiver and the control and monitoring unit.
Page 9: Specifications
G16 Smoke Density Monitor 2 Specifications Control and Monitoring Unit Display Opacity level [%] Accuracy Better than 2 % of full scale Precision Better than 2 % of full scale 24 VDC – 2 A (optional: 100–240 VAC – 50/60 Hz –...
Page 10 Specifications 0°C – 55°C (Class A) Ambient temperature Vibration Class EMC Class Enclosure Class B/IP 66 Dimensions & weight OD 75 mm, length 220 mm, 1800g Reflector incl. Air Module Purge air supply 5-10 NLPM. Air quality to meet ISO 8573-1 Class 3 Flue gas temperature Above dewpoint up to 460°C Flue gas pressure...
Page 11: Safety Aspects
G16 Smoke Density Monitor 3 Safety Aspects Before installing the system, please study the Installation Manual in its entirety. WARNING Follow the installation and operating instructions! Please read the instructions carefully in its entirety before working on the system. Hazardous voltage! Disconnect the power before installing or servicing the equipment.
Page 12 Safety Aspects Symbol Identification Caution, risk of danger Protective earth The CE mark proves the compliance Caution, risk of electrical shock of the instrument with the require- ments of the relevant EU directives Warning Laser Hazard. Visible laser radiation! Avoid eye exposure to di- Caution, hot surface rect or scattered radiation...
Page 13: Control At Delivery
G16 Smoke Density Monitor 4 Control at Delivery All products of Green Instruments A/S are individually checked throughout and carefully packed. Check the equipment upon arrival, ensuring that the equipment has been transported properly. Check for the absence of any damage. If these are noted, immediately make a note on the delivery document.
Page 14: Installation
Caution Installation and operation of the G16 Smoke Density Monitor and associated equip- ment must be carried out by skilled personnel. Green Instruments A/S does not take any responsibility of the operation of the system and associated equipment whatsoever. The equipment must only be applied as specified by Green Instruments. If the equip- ment is used in a manner not specified by Green Instruments, the protection provided by the equipment may be impaired.
Page 15: Standard Installation
G16 Smoke Density Monitor 5.2 Standard Installation The Monitoring Unit can be configured with up to two sets of transceiver/reflector units. The installation of each monitoring point is similar to each other. Figure 5-1 illustrates the installation of a system with only one transceiver/reflector unit.
Page 16: Figure 5-1: Installation Of The Figure 5-2: Mounting Of A Support And Alignment Bracket
Installation Figure 5-1: Installation of the G16 Smoke Density Monitor...
Page 17: Welding Sockets - Pre-Alignment
G16 Smoke Density Monitor 5.2.1 Welding Sockets – Pre-alignment The transceiver and reflector with air modules are installed on 200 mm long 1” socket pipes that are welded onto each side of the stack wall. It is recommended to shorten the welding sockets to match the thickness of the isolation to increase the stability of the in- stallation.
Page 18: Air Modules, Transceiver And Reflector
Installation 5.2.3 Air modules, Transceiver and Reflector After completing the welding of the sockets and the support and alignment brackets, the air modules can be mounted onto the welding sockets. To avoid gas leaks, it is recom- mended to use e.g. Teflon thread tape in between. Fix the air module in position with the lock screw.
Page 19: Purge Air System
G16 Smoke Density Monitor Figure 5-4: Mounting of Air Module and Reflector 5.2.5 Purge Air System Purge air is connected via the non-return valve, air distributor, and hoses to both air mod- ules. A sealing air kit (part no. 00031) includes the necessary parts.
Page 20: Control And Monitoring Unit
Installation 5.2.6 Control and Monitoring Unit The control and monitoring unit handles up to two (2) sets of transceiver/reflector units. It is recommended to install the control and monitoring unit in an easily accessible location. The information of the control and monitoring unit relevant for installation is provided in Figure 5-5.
Page 21: Figure 5-5: Installation Of The Control And Monitoring Unit
G16 Smoke Density Monitor Figure 5-5: Installation of the control and monitoring unit Ver.2.4 – Revision March 2022...
Page 22: Figure 5-6: Installation Of The Figure 6-1: Transceiveri
Installation Figure 5-6: Installation of the Junction Box...
Page 23: Electrical Connections
G16 Smoke Density Monitor 5.3 Electrical Connections 5.3.1 Control and Monitoring Unit The control and monitoring unit is arranged with touch screen and connection terminals inside the unit. Five (5) cable glands (M20) are arranged for incoming and outgoing power and data cables.
Page 24: Menu Structure & Configuration
Menu Structure & Configuration 6 Menu Structure & Configuration 6.1 Transceiver 6.1.1 Transceiver Button Function Figure 6-1: Transceiver Interface The transceiver user interface consists of a green power LED, a yellow warning LED and a red alarm LED, a zero and a span button, and 5 signal strength LEDs. •...
Page 25: Set Laser Aligning Function
G16 Smoke Density Monitor • When the illumination changes to one of the LEDs on the left, it indicates that the reflecting beam becomes weaker, i.e. the beam is scattered or blocked, or the lenses become contaminated. When the illumination changes to the last LED to the left, it means the opacity level is just above the warning level.
Page 26: Set Unit Address
Menu Structure & Configuration Press and hold SPAN and ZERO buttons simultaneously and wait approximately 5 seconds until all signal strength LEDs are ON, there will be a steady light beam sending from the transceiver. Then release SPAN and ZERO, you will see one of the signal strength LED remains ON and the Alarm and/or Warning LED might be ON.
Page 27: Save New Settings
G16 Smoke Density Monitor Figure 6-5: Transceiver Address Settings Press ZERO button to change unit address to the desired one, e.g. address 1 and 2. Release ZERO button and check if the address is as wanted. When the address set- ting is correct, press and hold the SPAN button until all signal strength LEDs are ON.
Page 28: Calibration
Menu Structure & Configuration 6.1.5 Calibration • Zero calibration: While there is no obstruction to the light beam, press and hold ZERO until all blue signal LEDs illuminate. • Automatic Span calibration: After Zero calibration, the auto Span calibration will automatically be performed if the beam is blocked within 1 minute after Zero calibrat- ing.
Page 29: Home Menu
G16 Smoke Density Monitor 6.2.1 Home Menu Figure 6-8: Home Menu with 1 configured sensor - Sensor menu Home menu is the first screen when the system is turned on. The display depends on the number of transceiver/reflector units configured in the system.
Page 30: Sensor Menu
Menu Structure & Configuration The light at each sensor box shows the alarm status at that sensor. Green light means no alarm and/or warning. Yellow means active warning and red means active alarm at that sensor. Black means the sensor is not configured or no data is yet received from the sensor. 6.2.2 Sensor Menu If only one sensor is configured, the sensor menu will be the same as the home menu.
Page 31: Figure 6-10: Alarm List Menu
G16 Smoke Density Monitor Figure 6-10: Alarm List Menu The alarm list menu has 6 function buttons: • Acknowledge the current selected alarm • All: Acknowledge all alarms • Up: Select alarm above • Down: Select alarm below • Info: Show info screen with description of the current selected alarm •...
Page 32: Figure 6-12: Alarm Infos
Menu Structure & Configuration Select an alarm and press Info, an alarm info screen with information about the current selected alarm and suggestion to solve the alarm condition as shown on Figure 6-12 will appear. Figure 6-12: Alarm Info Screen - e.g, Not aligned Alarm The full alarm list is as follow: Alarm Description...
Page 33 G16 Smoke Density Monitor Alarm Description Information Ret 1 H Warning Warning for High Returned light high. Run align function again. In- Returned Light In- crease reflector distance or use filter. tensity Ret 1 H Alarm Alarm for High Re- Returned light to high.
Page 34: Trend Menu
Menu Structure & Configuration 6.2.4 Trend Menu Press Trend on the Sensor Menu, the opacity trends of all sensors will be dis- played Figure 6-13. Figure 6-13: Trend Menu The opacity values (vertical axis) are shown on a time scale (horizontal axis). The scale of vertical axis is -10% - 100% opacity.
Page 35: Figure 6-14: Passwordp
G16 Smoke Density Monitor Figure 6-14: Password Popup window The Sensor Setup Menu has two function buttons: • System: to access the general System Setup menu • Home: to go back to the home menu Figure 6-15: Sensor Setup The light on top of the screen shows the global alarm status. Green/Yellow/Red light means no alarm and/or warning/active warning/active alarm.
Page 36: System Setup
Menu Structure & Configuration To change the name of the unit, press on the grey box beside Unit Name, a pop-up keyboard will appear for you to enter the designed texts and numbers. Beam path The beam path is the distance between the transceiver and the reflector in cm. Value is currently not in use.
Page 37: Figure 6-16: System Setup
G16 Smoke Density Monitor Figure 6-16: System Setup The menu displays the software version of the control and monitoring unit. It also has Home button to go back to the home menu. The following parameters of the system can be configured in this menu: Sensor Count The sensor count is the total number of the transceiver/reflector units to be con- trolled.
Page 38: Calibration
Menu Structure & Configuration 7 Calibration Note ZERO: 0% Opacity = 100% Transmission = All light reflected SPAN: 100% Opacity = 0% Transmission = No light reflected During ZERO calibration, all possible obstructions to the light beam (such as oil mist, smoke or dust) must be absent in the section between the transceiver and the reflector.
Page 39 G16 Smoke Density Monitor • Release SPAN, the first signal strength LED on the left becomes ON and the Warning and Alarm LED remain ON. • The illumination changes to the first signal strength LED on the right and the Warning and Alarm LED become OFF when •...
Page 40: Commissioning
Commissioning 8 Commissioning Before starting the system for the first time after completing the installation, please check and confirm that all parts an installed correctly are installed according to the instructions, and that all the connections are secured and no leaking. Check and confirm all the electrical connections are correct according to the instructions.
Page 41: Maintenance
G16 Smoke Density Monitor 9 Maintenance Besides normal cleaning of the lenses, the system does not require any maintenance. Please follow the instruction to clean the lenses in section 9.1 maintenance instruction. Attention The lenses can only be cleaned when the boilers/engines stop and there is no ex- haust gas in the stack.
Page 42: Troubleshooting
Commissioning 10 Troubleshooting Trouble shooting should always be carried out by trained and certified personnel. The G 16 Smoke Density Monitor is connected to hazardous electric voltages, which can cause per- sonal injury if not handled correctly. Possible Cause →Action Trouble →Check the power supply –...
Page 43: Spare Parts
G16 Smoke Density Monitor 11 Spare Parts Spare parts are not included in the standard delivery. Spare parts can be ordered when necessary. When ordering spare parts, please mention the serial number of the equipment, which you can find on the label of the equipment.
Page 44 Part Part Description sub- ject change without notice; the function however will not change 02871 G16 Reflector Module Assembly G16 Control & Monitoring Unit - 24 02906 G16 Control & Monitoring Unit - 110- 02970 240 VAC 02905 Junction box...
Page 46 EUROPE Green Instruments A/S Erhvervsparken 29 9700 Brønderslev, Denmark Tel: +45 96 45 45 00 sales@greeninstruments.com AMERICA Green Instruments USA, Inc. 6750 N. Andrews Avenue Suit 200 Fort Lauderdale, FL-33309, USA Tel: +1 954 613 0400 usa@greeninstruments.com ASIA Green Instruments (S) Pte. Ltd. 4008 Ang Mo Kio Avenue 10 #01-09/10 Techplace I, Singapore 569625 Tel: +65 3100 0577 sales.sg@greeninstruments.com...
