Summary of Contents for EXPANSION ELECTRONIC ECOKITCHEN 1

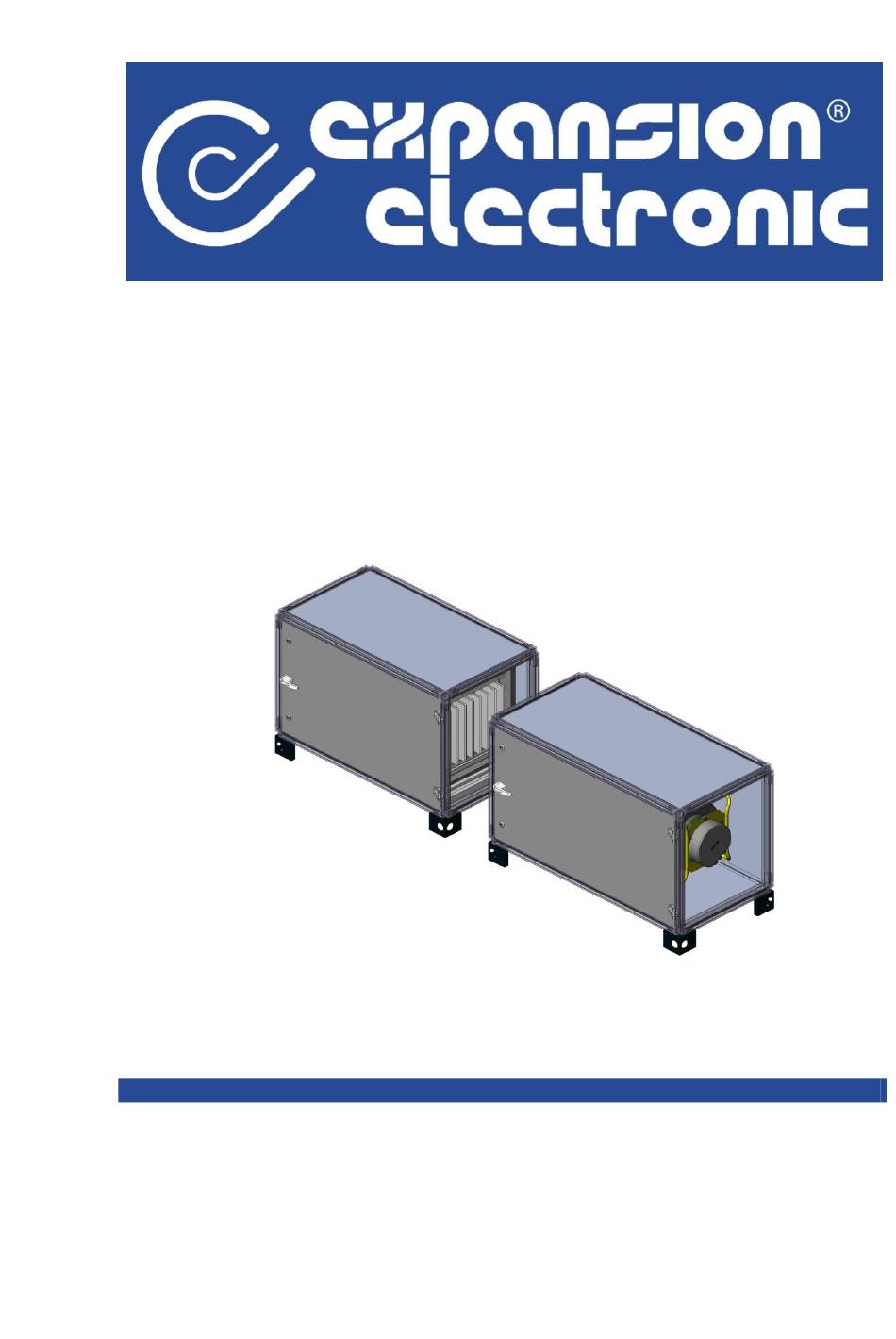

- Page 1 USE AND INSTRUCTION MANUAL File 20190402-001 ELECTROSTATIC PURIFIER MODEL ECOKITCHEN TYPE 1-2-3...
- Page 2 EXPANSION ELECTRONIC s.r.l. via Delle Industrie, 18 36050 Cartigliano VICENZA Web : www.expansion-electronic.com e-mail : info@expansion-electronic.com...
-
Page 3: Table Of Contents
TECHNICAL INFORMATION ........................23 16.1. TECHNICAL CHARACTERISTICS OF PURIFIER ..................23 16.2. CHARACTERISTICS OF ELECTRIC FAN ....................23 16.3. ECOKITCHEN 1 INSTALLED FILTERS ...................... 23 16.4. ECOKITCHEN 2 INSTALLED FILTERS ...................... 24 16.5. ECOKITCHEN 3 INSTALLED FILTERS ...................... 24 SPARE PARTS .............................. 24... -
Page 4: Ecokitchen Electrostatic Purifier
ECOKITCHEN ELECTROSTATIC PURIFIER The ECOKITCHEN cleaner, as it is supplied, cannot be used directly, but must be completed by all the other elements that allow air collection and channelling. The machine provides the electrostatic filter section and the deodorising activated carbon section for purification and the electric fan for air intake. -
Page 5: Overall Dimensions
OVERALL DIMENSIONS TRANSPORTATION AND PACKAGING The machine is normally packed with a number of layers of bubble wrap and stretch film. Normally it does not require a pallet as it is already equipped with feet that lift it from the ground and make it easy to move with forklifts equipped with through-brackets. -
Page 6: Field Of Application
FIELD OF APPLICATION The machine can be used for: - extracting fumes through a hood placed above the fumes emission point and connected to the machine by means of a channel of suitable dimensions - positioning the machine in a place that does not block normal work operations - positioning in a point that does not cause danger during the handling of goods with transport and lifting equipment (forklifts, bridge cranes ...) - filtration of fumes that the machine is suitable for... -
Page 7: Machine Installation
MACHINE INSTALLATION The place where the machine will be placed is under the sole responsibility of those who install and use this equipment. It is therefore necessary to remember that the machine must not endanger people who pass through or work nearby. All risks arising from normal work procedures as well as from extraordinary ones that may occur, must be assessed. - Page 8 The 2 sections that make up the unit must be positioned on the same plane to connect them together. Bring the units close together, with the outlet of the filtering section in front of the inlet of the ventilation section Apply the supplied adhesive gasket all along the entire perimeter of the filtering section...
- Page 9 Join the 2 sections with the relative screws, using the relative self-centring blocks. Close with a 6mm Allen key. The two joined sections will form a single body and will then be electrically connected together by the special electrical connector.
- Page 10 6. ELECTRIC PANEL INSTALLATION The electrical panel is supplied with brackets for wall mounting and it is connected and wired up to the first junction box by a flexible sheath with a standard length of 3m. Mount the special brackets on the panel and fix it to the wall with suitable plugs. Deliver the supply voltage by the supplied socket, observing the neutral and earth connections.
-
Page 11: Disposal
DISPOSAL For scrapping the machine, proceed according to provisions of law in force in the user's country. In demolition phases (disassembly, transport, etc.) observe the safety provisions in the user manual. Divide the various components of the machine by type of material, grouping them by: - electrical and electronic components - electric cables - plastic materials (sheaths, sound-absorbent material, rubber ..) -
Page 12: Working Parameters
8. WORKING PARAMETERS TABLE OF FLOW-EFFICIENCY OF THE MACHINE The purifier is suitable to operate at different air flows adjustable by means of the special potentiometer, equipped with 2 trimmers for adjusting the minimum and maximum points that it can work within. Increasing the air flow above the set maximum point leads to a reduction in filtration efficiency. - Page 13 9.1 METAL+SPONGE PRE-FILTER This filter is made of a stratified pressed aluminium mesh filter, combined with a high quality sponge and a galvanised sheet frame. The frame consists of 2 shells that can be opened and re- used to wash the filter components. The sponge air filters are made in standard dimensions ac- cording to EN standards compliant with ASHRAE standards to fit perfectly inside the air treatment unit.
- Page 14 9.3 FI IONISATION SECTION The new FI negative ionisation cell has been designed and built to be applied inside air handling units or along air distribution channels. FI represents a brand new development in the air handling field and its insertion after electrostatic or absolute high efficiency filtering, guaran- tees a reduction of odours and sterilisation of the walls, along with greater environmental comfort.
- Page 15 9.6 LABYRINTH ACTIVE CARBONS SECTION The active carbons section shows a series of flat filters ar- ranged in a labyrinth to create an air passage on a larger surface compared to a classic panel and at a lower speed. A longer contact time between air and activated carbons is obtained in this way, subsequently increasing the odour ad- sorption effect and reducing pressure drops.
-
Page 16: Filter Maintenance
FILTER MAINTENANCE Maintenance differs by method and time of intervention depending on the type of filter: a) replacing the filter fibre in fabric pre-filters b) washing pre-filters and the electrostatic cell c) maintenance of the FI Ionisation and FX Ozonisation sections d) replacing the activated carbon e) washing the droplets separator or turbulator These operations are very important and must be carried out with great care to always keep your equipment... - Page 17 c) extract the filter, let it drip over the tank, rinse it generously with running water, being careful not to break the ionisation wires. d) let it dry keeping it raised off the floor with wooden strips or in a dryer with a maximum temperature of 60 °C.
-
Page 18: General Control Of The Electrostatic Cell And Pre-Filter
10.3. FX OZONISATION CELL MAINTENANCE The FX ozonisation module does not require frequent maintenance. Every 2-4 months the emitter wires must be checked and kept clean and every 12 months they must be replaced. To clean the wires it is recommended to use a cotton swab dipped in multi-purpose degreasing detergent. -
Page 19: Controls On The Electrostatic Filter
CONTROLS ON THE ELECTROSTATIC FILTER Perform periodic checks to verify the status of its basic components, proceed to replace them in case of breakage or perform preventive maintenance. Do the following: - clean the ionisation wires - replace the ionisation wires of the electrostatic cell. 12.1 CLEANING THE IONISATION WIRES Some types of pollutants cause slight encrustation or oxidation of ionisation wires. -
Page 20: Electric Panel
ELECTRIC PANEL Connect the power supply to the electrical panel as explained in the chapter on electrical panel installation. START-UP 1) Open the door and turn the main switch from 0 (zero) to 1 (one). 2) The signal lamp must light up with GREEN light to indicate correct operation of all systems. -
Page 21: Adjustments Potentiometer
For all the checks, use the wiring diagrams. Always cut off the voltage before operating on electrical circuits. Electrical maintenance is reserved for instructed and trained personnel only. Some interventions may require to operate on the panel UNDER TENSION, use the necessary precautions. ADJUSTMENTS POTENTIOMETER Inside at electric panel next to the potentiometer for adjusting the flow rate, there are 2 trimmers for setting the minimum flow rate and maximum flow rate. - Page 22 3 – The potentiometer visible in the photo has 2 small adjusting trimmers on the hips. The left trimmer allows you to adjust the maximum fan power point. The Right trimmer allows you to adjust the minimum power point of the fan. 4 –...
-
Page 23: Technical Information
Air outlet Depending on the plant requirements Installation fixed to the floor 16.2. CHARACTERISTICS OF ELECTRIC FAN DESCRIPTION VALUE ECOKITCHEN 1 and 2 MONOPHASE K3G310 Electric power engine 3.4 kW Engine speed 350 to 3450 rpm variable ECOKITCHEN 2 TRIPHASE K3G315... -
Page 24: Ecokitchen 2 Installed Filters
16.4. ECOKITCHEN 2 INSTALLED FILTERS DESCRIPTION MODEL QUANTITY Filter reset CODE Sponge+metal pre-filter PFMST washing PFMST592X592X95 Metal mesh pre-filter FE600 washing B03961 Electrostatic cell FEL600 washing XFE600L Ionisation cell FI600 washing XFI600 Ozonisation cell FX600 washing XFX600 Droplet separator/turbulator CF-FLX washing B02736 Active carbon filter...
