CESSNA 172 BREAKER PANEL MOUNTING
INSTRUCTIONS

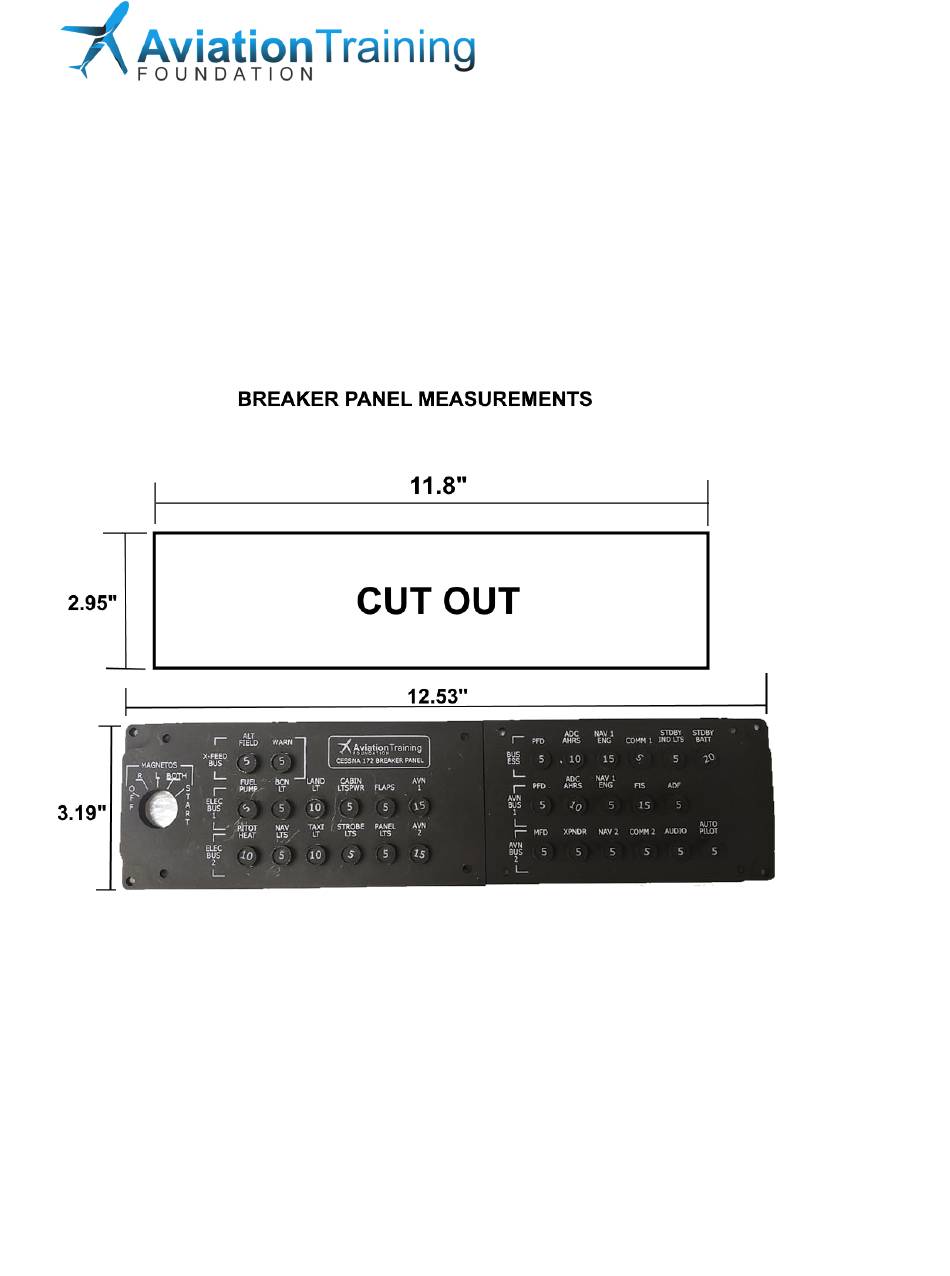

ONCE YOU HAVE UNBOXED YOUR CESSNA 172 BREAKER PANEL, YOU WILL NEED TO
PREPARE YOUR MAIN PANEL FOR THIS UNIT. THE MEASUREMENTS BELOW ARE WHAT
WE RECOMMEND FOR A PROPER FIT OF OUR PANEL. MEASUREMENTS ARE IN INCHES
