Summary of Contents for Biwise trailers DI-100

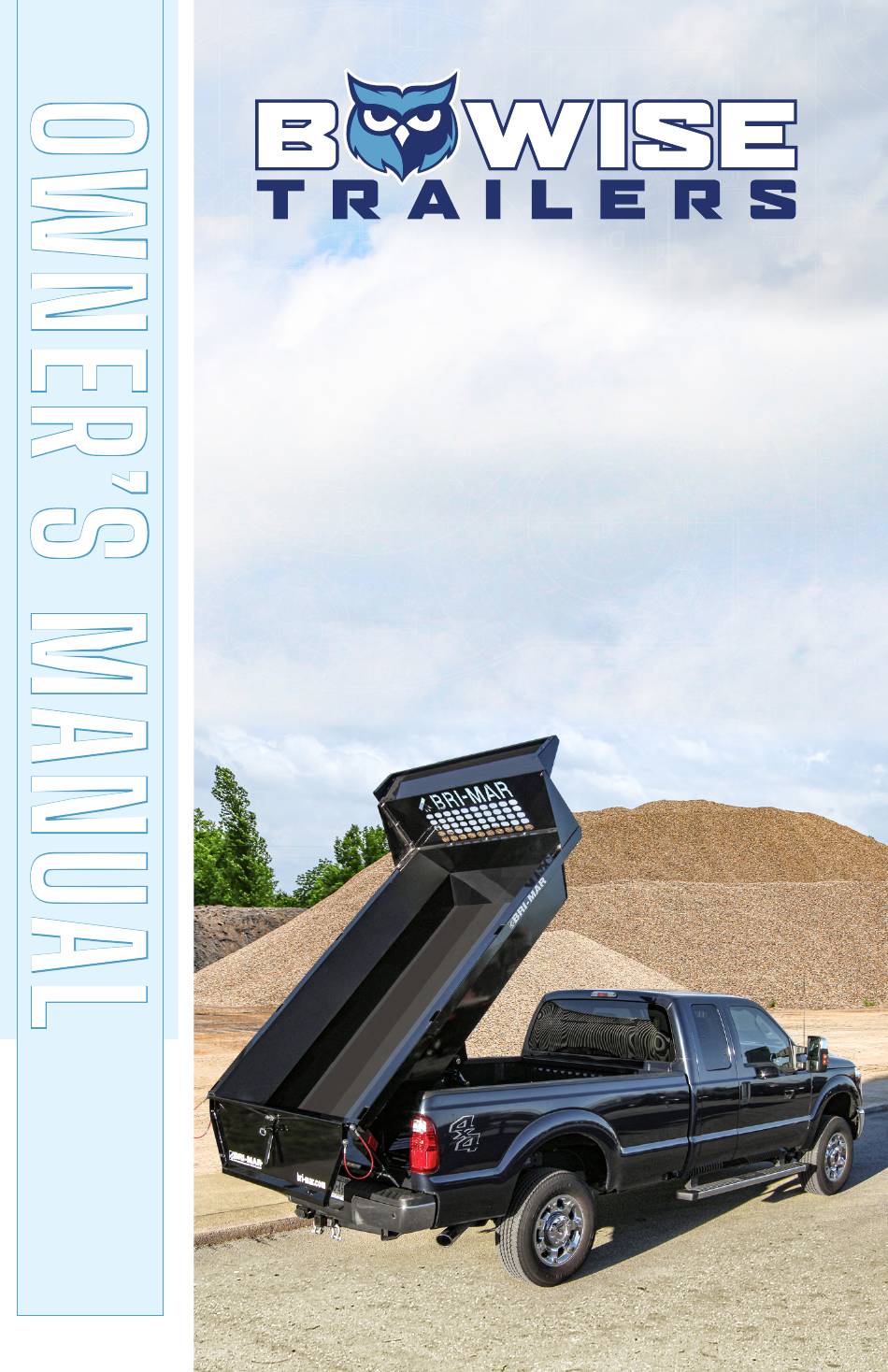

  • Page 1 LEGACY BRI-MAR DI-100 DUMP INSERT...
  • Page 2 1002 Wayne Avenue • Chambersburg, PA 17201 1002 Wayne Avenue • Chambersburg, PA 17201 717.261.0922 • Fax: 717.264.5581 717.261.0922 • Fax: 717.264.5581 DI-100 LEGACY MODEL OWNER’ S MANUAL • General Information • Instructions • Maintenance...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Installation Instructions ..............Installation of Remote Control Cable in Cab of Truck ..................Installation Diagram ................Wiring Schematic - Pump Assembly ........Main Assembly, Front View ............Main Assembly, Rear View ............Parts List ....................Maintenance and Troubleshooting ...........

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS All dump insert units are shipped with an Installation Kit containing (2) battery cables, installation manual and (4) steel clamps. Please check to make sure all items are on hand before installation. The installer must provide bolts and plate washers. 1.
  • Page 6 • When it is necessary to mount through cross member, reinforce with steel plate washers as illustrated in the installation diagram on page 7 of installation manual. • Use minimum of 3/8” bolts with lock washers and shake proof nuts. •...

  • Page 7: Installation Of Remote Control Cable

    INSTALLATION OF REMOTE CONTROL CABLE IN CAB OR TRUCK Drill either 13/16 or 3/4 inch holes through truck bed and through cab of truck behind seat. Place remote control on transmission hump in cab and run end of cable under seat and through drilled hole in cab.

  • Page 8: Installation Diagram

    INSTALLATION DIAGRAM...

  • Page 11: Main Assembly Front View

    MAIN ASSEMBLY FRONT VIEW...

  • Page 12: Main Assembly Rear View

    MAIN ASSEMBLY REAR VIEW...

  • Page 13: Parts List

    BRI-MAR DI-100 PARTS - 405-065 Dumper Body - Box Only - 106-001 Roll Pin 1/4” x 2” - 323-040 Cylinder Cross Pin, 1-1/8” x 29.63” - 405-057 Hoist - 100-054 HHCS 1-8 x 11 GR8 - 405-112 Support Link - 120-053...

  • Page 14: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING Call an authorized dealer for exchange or service parts. To keep your DI-0100 in top operating condition, follow these simple maintenance procedures: 1. If it squeaks, grease it. 2. Do not operate when low on hydraulic fluid. 3.

  • Page 15: Warranty

    WARRANTY Your Bri-Mar Dump Insert is warranted to the original purchaser to be free from defects in material and workmanship for a period of 12 months, except as herein limited, from the date of purchase. The obligations of BWise Manufacturing under this limited warranty shall be limited to repairing or replacing any part or parts which, in the opinion of BWise Manufacturing, shall be proved defective in materials or workmanship under...
  • Page 16 DANGER OPERATOR WARNING DO NOT LOAD OVER 6000 POUNDS ON VEHICLE. DUMP INSERT AND CARGO MUST NOT EXCEED MANUFACTURERS GROSS VEHICLE WEIGHT RATING. PRIOR TO SERVICING UNIT ENSURE SAFETY PROP IS SECURE. DO NOT PLACE ANY PART OF YOUR BODY UNDER DUMP UNIT WITHOUT SAFETY PROP BEING SECURED.
  • Page 17 1002 Wayne Avenue Chambersburg, PA 17201...
  • Page 18 BWISETRAILERS.COM...
