OPENTEXT Tableau Forensic T35u Quick Reference Manual

QUICK
REFERENCE GUIDE
Tableau Forensic
SATA/IDE Bridge
DC IN
Power
IDE Detect
SATA Detect
Host Detect
Write Bock
USB 3.0 Activity
Update Mode

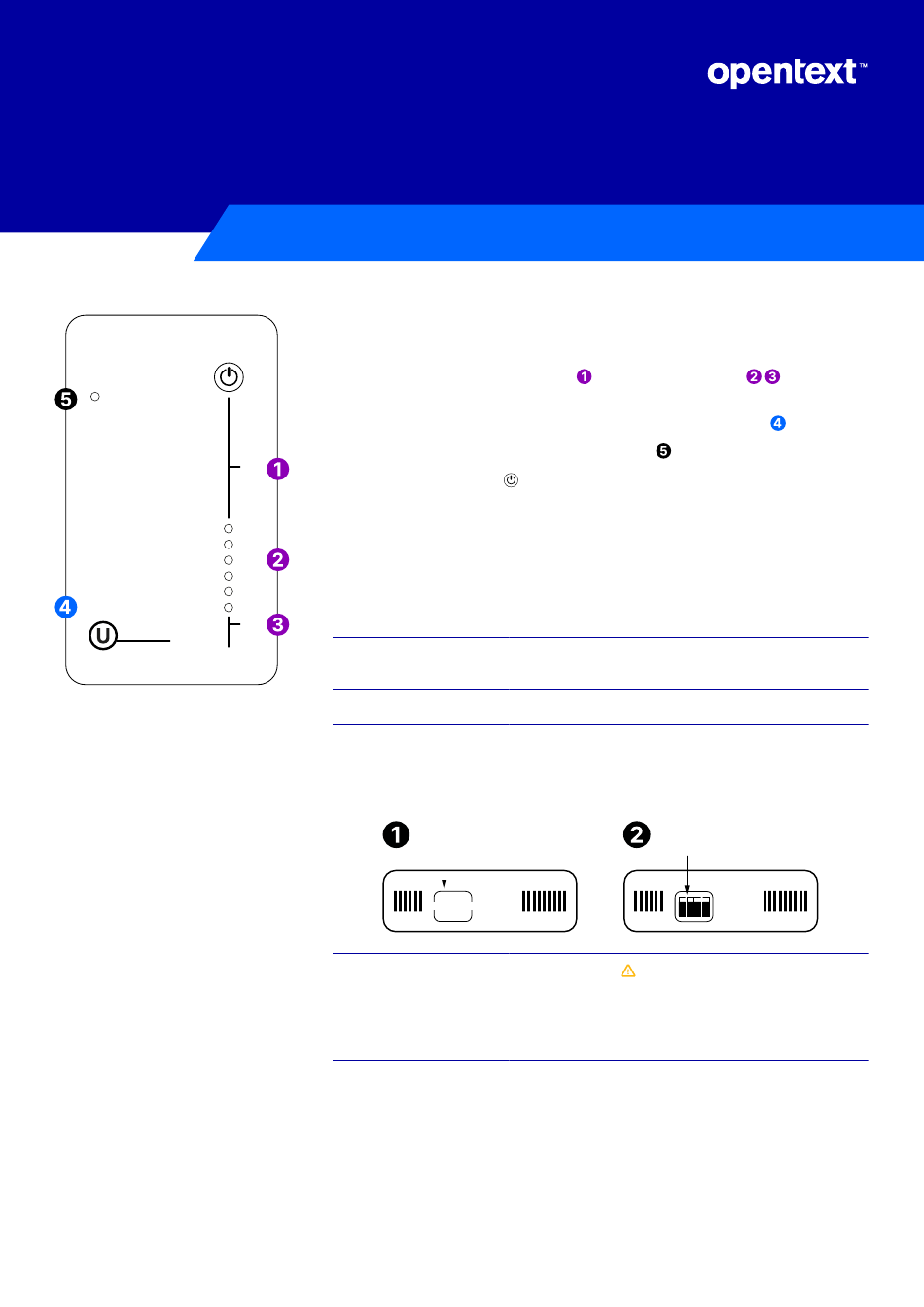

Tableau Forensic T35u/T35u-RW SATA/IDE Bridge

GETTING STARTED

Confirm that the bridge is off before beginning.
1. Connect either an IDE source drive
right side of T35u/T35u-RW
2. Connect the bridge to the host computer using the host USB port
3. Connect the power supply to the bridge's DC In
IDE
4. Press the power button
Before you remove the connected SATA/IDE drive or power down the
T35u/T35u-RW, safely eject or unmount the drive on your host computer.
DC

CONNECTION RECOMMENDATIONS

OUT
For SATA Drive
SATA
For IDE Drive
For the Host Connection
For Power (DC In)

DIP SWITCH SETTINGS

SWITCH 1
SWITCH 2
SWITCH 3
SWITCH 4
, or a SATA source drive
and begin operation
Use a Tableau SATA Drive Power cable (TC5-8-R2)
& SATA Data cable (TC3-8)
Use a Tableau IDE Drive cable (TC2-8-R2) & IDE
Data cable (TC6-8)
Use a Tableau USB 3.0 cable (TC-USB3)
Use a Tableau power supply (TP5 or TP2)
Locate breakaway
plastic & remove
ON = Read/Write
OFF = Read-Only
ON = Hide Write Protect
OFF = Report Write Protect
ON = Hide Write Errors
OFF = Report Write Errors
No Function
* Default setting is OFF for all switches
to the
Adjust DIP switches
for intended use
