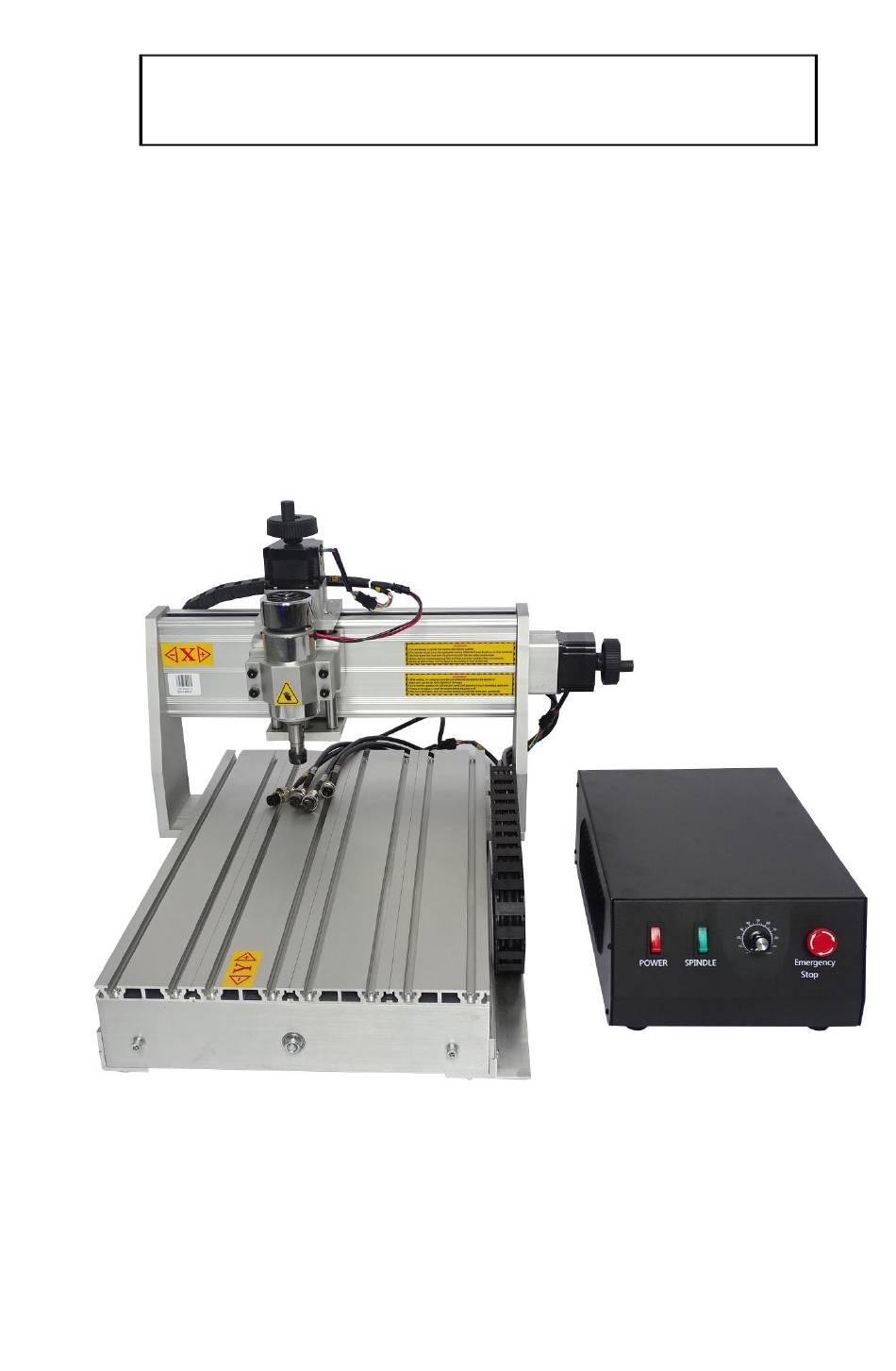

- Page 1 Small CNC User Manual Applicable Model：CNC3020/3040/4060 model...
-
Page 2: Table Of Contents
Table of Contents Foreword................3 1.Equipment overview............4 1.1.Equipment packing list.............. 1.2.Names and functions of various parts of the equipment... 1.3.Equipment technical parameters..........2.Equipment installation and commissioning.....6 2.1.Installation precautions........................7 2.2.Installation instructions ..........9 2.3.Control software installation ........9 2.4.Equipment debugging instructions 3.Equipment instructions............10 3.1.Processing flow............10 3.2.Introduction to common functions of Mach3....12 3.3.Compatible programming software......14... -
Page 3: Foreword
Foreword First of all, thank you for purchasing and using our products. Please read this instruction before installing your machine, so as not to cause unnecessary trouble for your installation and use. The equipment is tested before leaving the factory and meets the shipping standards. -
Page 4: Equipment Overview
1.Engraving overview 1.1.Equipment packing list (1).CNC Engraving machine rack----1 units (2).CNC Engraving machine control box----1 units (3).Test machine carving knife----5 Put (4).Fixed clamp----4 sets (5).Spindle chuck----1PC (6).Spindle wrench----1 pair (7). Allen wrench----5 put (8). power cable----1 Articles (9).USB cable----1 Articals (10).Tool set----1 PC (11).U disk ----1PC (12).The axis of rotation----1 PC... -
Page 5: Names And Functions Of Various Parts Of The Equipment
1.2.Names and functions of various parts of the equipment Electric control box switch description 3020/3040 model Label Button name Key Function Control the power supply of the electric switch control box Spindle start switch Control spindle start and stop Spindle speed Adjust the spindle switch and spindle speed control knob Emergency stop... -
Page 6: Equipment Technical Parameters
1.3.Equipment technical parameters E-3020E-3020A E-3040E-3040A E-4060E-4060A Chinese name 3020 3 axis / 4 axis 3020 3 axis / 4 axis 6040 3 axis / 4 axis Effective work 200(X)x300(Y)x55(Z)mm 300(X)x400(Y)x55(Z)mm 395(X)x600(Y)x70(Z)mm schedule Effective work 500*390*390(H)mm 610*450*390(H)mm 840*640*460(H)mm schedule Maximum ≤65mm ≤65mm ≤100mm thickness... -
Page 7: Installation Instructions
(5).Please be sure to follow the steps of the engraving machine installation instructions during installation. The installation may cause the machine to malfunction due to incorrect installation by the user. (6).If there is an y problem with the operation of the machine during the machine debugging process, please contact the after-sales personnel for disposal. - Page 8 Step 2: Align the wire plug on the motor with the corresponding plug on the machine. Step 3: Connect the engraving machine frame, electric control box and computer wiring (refer to the wiring diagram for connection). The aerial plug-in cable is connected between the rack and the electric control box.
-
Page 9: Control Software Installation
2.3.Control software installation Software installation computer requirements: 1. desktop computer or laptop; 2. USB port; 3. computer system:WindowsXP/Win7/win8/win10 system; Our company provides Mach 3 software for testing and testing. It is only for teaching and personal research. If there is any commercial use, please buy genuine, thank you! Mach 3 official website: www.machsupport.com Basic installation of Mach3 software: Please open the supplied USB flash... - Page 10 Step 2: Power on the control box and switch the power switch to ON. At this time, the emergency reset button “Reset” in the lower left corner of the computer control interface is flashing. Click the “Reset” button to cancel the alarm state. Step 3: After confirming that the emergency reset in the lower left corner is not flashing, use the arrow keys on the keyboard and Pageup/down to control the left and right, front and rear, and up and down movements of...
-
Page 11: Equipment Instructions
3.Equipment instructions 3.1.Processing flow Step 1: the material to be processed is fixed on the machine with the corresponding fixture. Generally, the thin plate is fixed by double-sided glue, the rectangle is fixed by a vise, and the shaped workpiece is fixed by a special fixture. -
Page 12: Introduction To Common Functions Of Mach3
Step 5: Confirm that the “Emergency Reset” in the lower left corner of the software is not flashing. Click “Zero X”, “Zero Y”, “Zero Z”, “Zero A”, click “Load G Code”, then there will be loading. G code pop-up window, file type select "AllFiles" and find the G code you generated is loaded. - Page 13 Button name Button icon Key Function Whenalarming,clickthisbutton to Emergency reset cancel thealarm. Click this button to import the G Load G code code file. After importing the G code The program starts file,Click this button to start running running the program. Clickthisbuttontoreturntothe beginningoftheprogramand re-run.
-
Page 14: Compatible Programming Software
3.3.Compatible programming software Mach3 is a PC software that recognizes international G code and is currently compatible with most software that generates G code on the market. Since the user's purchase of the machine is not the same, here are some recommended G code generation software for common use. - Page 15 List of commonly used tool types Tool type Tool name Tool picture Tool function usual format Mainly used for milling Common specifications for tool holders: grooves of non-metallic Corn milling 3.175 and 4mmCommon specifications materials such as high cutter of the blade: 0.6-3.175mm temperature resistant plastics and wood.
-
Page 16: Common Material Processing Parameters
5. Common material processing parameters Material Processing parameters name Eat the amount of Lower knife speed Cutting speed Spindle speed (r/min) knife (mm) (mm/min) (mm/min) wood 1000 20000 Acrylic 16000 18000 18000 18000 nylon 1000 20000 Double 1000 20000 Bakelite 1000 20000 Fiberglass... -
Page 17: Equipment Service
6. Equipment service (1) screw cleaning and lubrication When the machine is in use, it is a good habit. It is necessary to do a cleaning work for about one month. The screw, optical axis and bearing cleaning must work. You can use a clean rag to manually wipe the optical axis of the screw. The part of the bearing that is not cleaned can be cleaned with a small brush.
