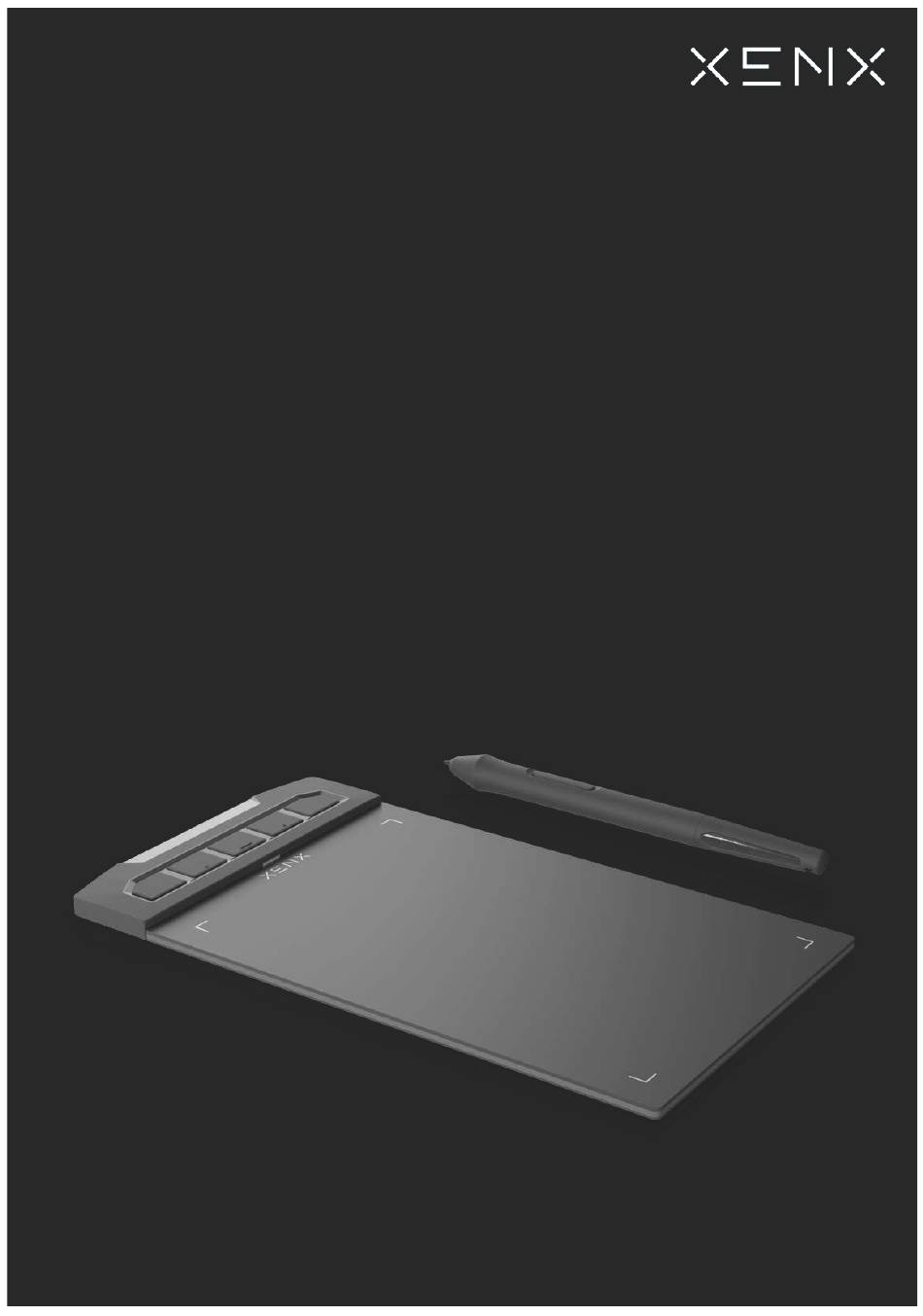

- Page 1 X1-640 Graphics Tablet User Manual...
-
Page 2: Table Of Contents
Setup your graphics tablet on Android OS Xenx Driver settings 1. Mapping settings 2. Shortcut buttons settings 3. Pen settings 4. Advanced settings 5. Device and application 6. Manage Xenx Driver settings file Replace the pen nib Specifications Warranty terms and conditions... - Page 3 Xenx P1-640 captures 266 sets of pen coordinates and pressure data per second. Compatibility Xenx Tablet is compatible with Mac OS 10.12 or later, Windows 7 64-bit or later, Android 6.0 or later. You can also enjoy driver free pen experience with Windows 10 and Android 6.0 or later.
- Page 4 Shortcut Keys -C connector Led indicator...
- Page 5 Packaging content X1-640 X1-640 Battery-free Pen USB Cable Nib Removal Tool Pen Nib*10 OTG Adapter Setup Guide...
- Page 6 X1-640 Starting from Windows 10, Microsoft® has introduced Windows Ink to enhance experience on pen applications. Thanks to this great feature, Xenx X1-640 can simply plug and play for pen pressure enabled applications, no additional driver is needed. If you would like to receive extra tablet features such as customizing shortcut keys and screen mapping, you have to install our Xenx Driver software to open up the full set of tablet functions.
- Page 7 Setup your graphics tablet on Mac OS X1-640 Xenx graphics tablet supports Mac OS 10.12 or later. Please follow the below instructions to install Xenx Driver software on your Mac computer. Download the Xenx Driver software from our official website www.xenx-tech.com/download.
- Page 8 Setup your graphics tablet on Android OS X1-640 Xenx graphics tablet supports plug and play on Android OS 6 or later. Default orientation of the drawing area is in landscape mode. When using Xenx tablet an Android phone, you may find ratio distortion.
-
Page 9: Xenx Driver Settings
Xenx Driver settings X1-640 There are 6 sections on Xenx Driver software: Mapping Buttons Advance Device Application... -
Page 10: Mapping Settings
Mapping settings X1-640 With mapping function, you can customize how the graphics tablet drawing area maps to your monitor(s). Besides, you can define the left-handed or right-handed orientations of the tablet. Tablet orientation Right hand mode - shortcut keys are located at the left side of the tablet. - Page 11 Screen frame You can define the display area to be mapped with the tablet. All – if you have multiple monitors, this option will map the tablet to all monitors as a whole. By monitor – quickly map one of the monitors with the tablet. Partial –...
-
Page 12: Shortcut Buttons Settings
Shortcut buttons settings X1-640 You can customize the on-tablet shortcut button functions via the buttons settings section. There are three options for each button: The preset value - We have pre-defined a set of shortcut keys to work with Adobe® Photoshop®. -
Page 13: Pen Settings
Absolute Absolute By default, Xenx tablet is set to absolute mode on Mac OS. In this mode, the coordinates of the pen location will be absolutely mapped on the screen area. The cursor jumps to the corresponding point on your screen when you place your pen on the tablet. - Page 14 Relative Relative This is also known as mouse mode where the behavior of the pen will work like a traditional mouse device. The cursor will stay at the point you lift the pen and it will continue at that point when you put the pen back on the tablet.
- Page 15 Pen side button settings There are two side buttons on Xenx pen and you can customize the functions to enhance your work efficiency. Default Default By default, both buttons on pen are set to be eraser function on Windows OS.
-
Page 16: Advanced Settings
You can disable the pen tip if you want to pen for cursor moving only so that you can rest the pen on the tablet surface all the time. Open Xenx Driver when plug in tablet Open Xenx Driver when plug in tablet if you do not want the Xenx Driver open up every time you connect the tablet, please uncheck this option. -
Page 17: Device And Application
Device and application X1-640 Device list If you have multiple Xenx devices, Xenx driver will create different profiles for each device. Click the device icon to view the settings of this profile Application List You can also set different settings profile for different software applications. By default, settings will be applied to all applications. - Page 18 Note For Windows OS, you have to locate the application .exe file for this setting. If you are not sure the destination folder, you can first create a shortcut of the application to your Desktop. When choosing the target application, you can simply select the shortcut in Desktop folder. To remove an application specified setting profile: Frist, select the target device from the device list.
-
Page 19: Manage Xenx Driver Settings File
Manage Xenx Driver settings file X1-640 At the bottom section of Xenx Driver, there are four regular buttons: About About You can get the driver and firmware version information. Export Export Backup/export your settings file to your computer storage. Import Import Restore/import your settings file. -
Page 20: Replace The Pen Nib
Replace the pen nib X1-640 Extra pen nibs and nib removal tool are included in the package. Pull out the nib with the nib removal tool. Gently push the replacement nib into the pen until it stops. Note over-tighten the pen nib may results in bad pressure sensitivity... - Page 21 152 x 95 mm (6 x 3.74 inch) 115 mm 207 mm 145 mm Product name Product name Model number Model number Xenx X1 Graphics Tablet X1-640 Product size Product size Tablet Weight Tablet Weight 207 x 115 x 7 (2.8 at drawing area) mm 117.6 g...
- Page 22 XENX, or by other conditions not arising from defects in product materials or workmanship; this also applies to accessories such as USB cable and pen nib exchange ring;...
- Page 23 ABUSE; (B) THAT HAS BEEN THE SUBJECT OF IMPROPER INSTALLATION, USE OR HANDLING; (C) THAT HAS BEEN REPAIRED, MODIFIED, OR ALTERED BY SOMEONE OTHER THAN XENX OR AN XENX AUTHORIZED SERVICE PROVIDER, OR (D) THAT HAS BEEN EXPOSED TO OPERATING OR ENVIRONMENTAL CONDITIONS IN EXCESS OF XENX’S WRITTEN SPECIFICATIONS OR RECOMMENDATIONS.
