Safety Instructions:
This product and all its components must be fitted by a qualified professional.
•
Ensure the electrical power is off before fitting this product.
•
Ensure the product is securely fastened before releasing.
•
The power supply intended for this product is 12v.
•
This product is not intended for use by children.
•
Do not install it with small children or pets around.
•
Do not use this product externally or in wet / moist conditions.
•
It should be used only indoors in a dry suitable environment.
•
Keep the handset out of reach of children.
•
Never drop, knock, puncture or immerse the handset in liquid.
•
Step 1
1. Unbox all the components. Leave the Blind wrapped in the protective plastic for fitting later.
2. Assemble the aluminium Blind frame. Please note side A of the frame is where the Blind motor will sit. (This is the side
it will retract to when the Blind is fully opened).
3. The 2 x Support Blocks provided will need to fitted first to the Motor side of the reveal (side A). To do this, measure
70mm across from the upstand and 30mm down from the top of the upstand. Mark the points and screw in the 2 x
Support Blocks to the OSB board as per the diagram below. Please do this for side A only.

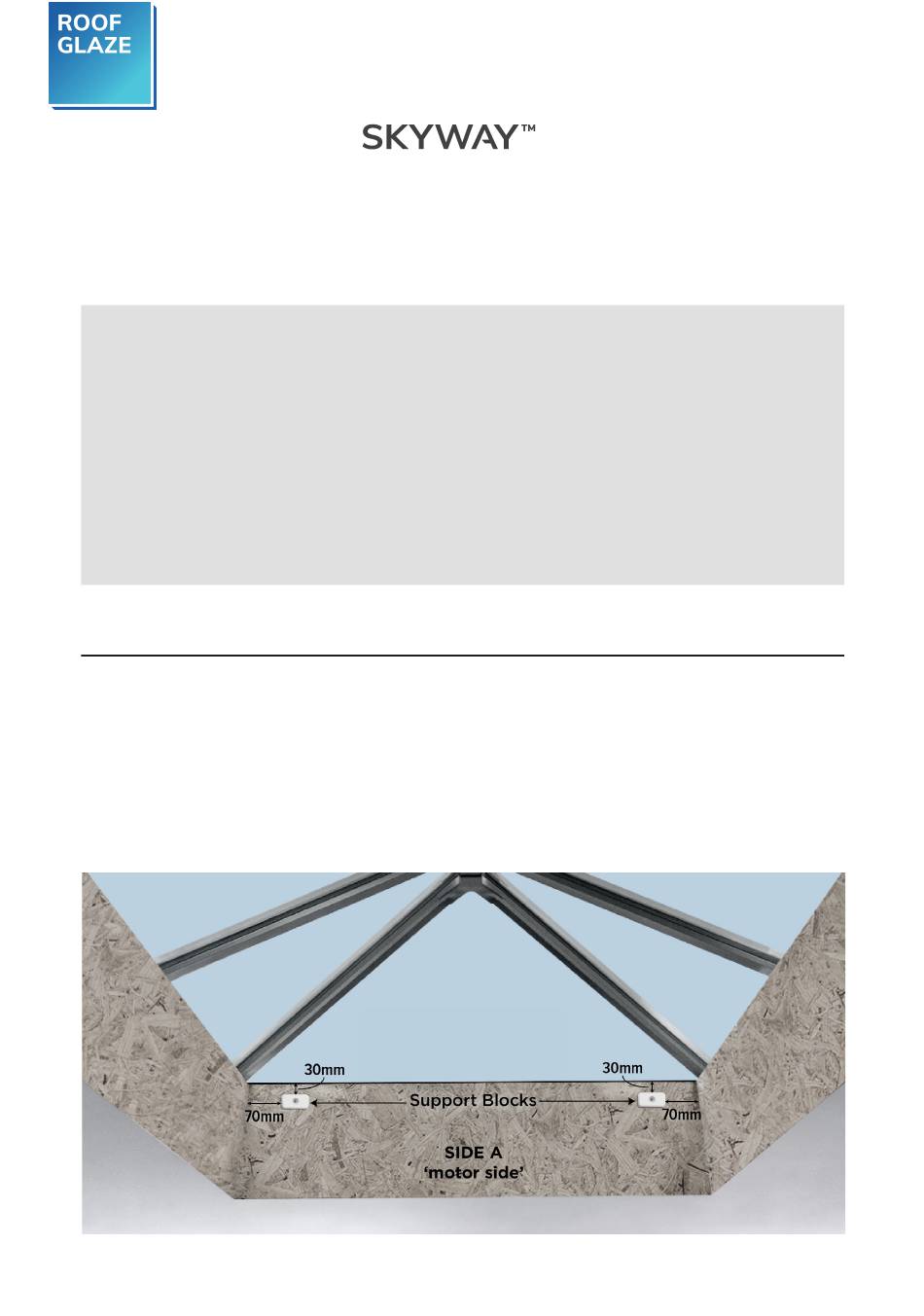

Motorised Blind Fitting
Guide (V.1)
Fitting Guide (V.1) | 1 of 6
Advertisement
Table of Contents
Summary of Contents for ROOF GLAZE SKYWAY
- Page 1 Motorised Blind Fitting Guide (V.1) Safety Instructions: This product and all its components must be fitted by a qualified professional. • Ensure the electrical power is off before fitting this product. • Ensure the product is securely fastened before releasing. •...
- Page 2 4. Now that the 2 x Support Blocks have been securely fitted to side A, lift in the Blind frame and rest it on the Support Blocks. Then lift up the frame for side B, once in position get assistance to screw in the remaining 2 x Supports Blocks into the OSB board as per the diagram below.
- Page 3 Step 4 1. Clip in side A (the motor side) of the Blind to side A of the reveal. This will require some force to clip it in the Blind securely to the frame. Start at one end moving across to the opposing end. Clip in the Blind as per the diagram - a loud ‘clicking noise’...
- Page 4 4. Calibrate the Blind by pressing the down arrow on the handset or switch to fully close, then the middle 'STOP' button, then the up arrow to fully open. This may need to be done several times to calibrate. The blind is now ready for normal use. Troubleshooting Q.1) When the Blind is operating it is making a scraping / juddering sound? A: Check the Railing edges, they may require cleaning off any debris, dust or grit with a damp cloth / baby wipes.
- Page 5 Q.8) The Blind is getting stuck in operation? The frame has been installed incorrectly. Measure both ends and the centre of the frame, all measurements should be equal - a maximum of 2mm tolerance is allowed. Reduce the packers from either side is this is an option, if not please contact customer support.
- Page 6 Addendum Wall Switch / Remote Control Operation Due to time delay protection in-built into the blind actuation, to reverse the direction of the blind travel while in motion, the stop button must be pressed on either the remote control or the wall switch.
