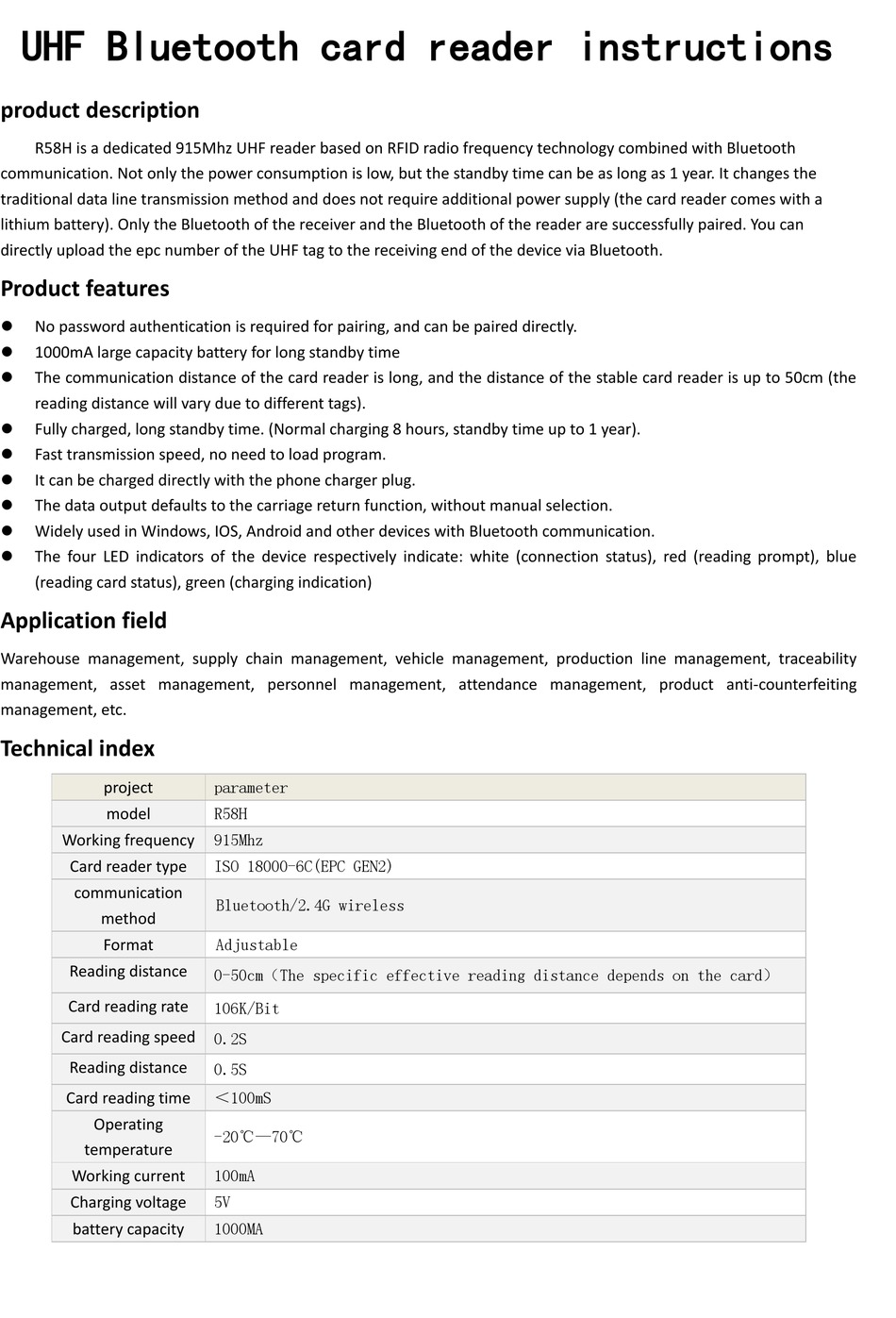

UHF Bluetooth card reader instructions
product description
R58H is a dedicated 915Mhz UHF reader based on RFID radio frequency technology combined with Bluetooth
communication. Not only the power consumption is low, but the standby time can be as long as 1 year. It changes the
traditional data line transmission method and does not require additional power supply (the card reader comes with a
lithium battery). Only the Bluetooth of the receiver and the Bluetooth of the reader are successfully paired. You can
directly upload the epc number of the UHF tag to the receiving end of the device via Bluetooth.
Product features
⚫
No password authentication is required for pairing, and can be paired directly.
⚫
1000mA large capacity battery for long standby time
⚫
The communication distance of the card reader is long, and the distance of the stable card reader is up to 50cm (the
reading distance will vary due to different tags).
⚫
Fully charged, long standby time. (Normal charging 8 hours, standby time up to 1 year).
⚫
Fast transmission speed, no need to load program.
⚫
It can be charged directly with the phone charger plug.
⚫
The data output defaults to the carriage return function, without manual selection.
⚫
Widely used in Windows, IOS, Android and other devices with Bluetooth communication.
⚫
The four LED indicators of the device respectively indicate: white (connection status), red (reading prompt), blue
(reading card status), green (charging indication)
Application field
Warehouse management, supply chain management, vehicle management, production line management, traceability
management, asset management, personnel management, attendance management, product anti-counterfeiting
management, etc.
Technical index
project
model
Working frequency
Card reader type
communication
method
Format
Reading distance
Card reading rate
Card reading speed
Reading distance
Card reading time
Operating
temperature
Working current
Charging voltage
battery capacity
parameter
R58H
915Mhz
ISO 18000-6C(EPC GEN2)
Bluetooth/2.4G wireless
Adjustable
0-50cm（The specific effective reading distance depends on the card）
106K/Bit
0.2S
0.5S
＜100mS
-20℃—70℃
100mA
5V
1000MA
Advertisement
Table of Contents
Related Manuals for Sycreader R58H
Summary of Contents for Sycreader R58H
- Page 1 R58H is a dedicated 915Mhz UHF reader based on RFID radio frequency technology combined with Bluetooth communication. Not only the power consumption is low, but the standby time can be as long as 1 year. It changes the traditional data line transmission method and does not require additional power supply (the card reader comes with a lithium battery).
- Page 2 Instructions for use Wireless connection steps 1. Press the power button on the device for 1 second. When the white indicator light of the device flashes, it indicates that it is in a waiting state. 2. Insert the USB receiver provided by the device into the USB port of the host. When the white light of the device stops flashing, it means the connection is successful.
- Page 3 Output format setting 1、Connecting devices and software Connect the card reader with the computer, double-click to open the application program , and click the read button. The current format of the card reader will be displayed in the status box on the right side of the software. If the connection fails, see the figure below...
- Page 4 2、Reader status output format 2.1 Output format setting 2.2 Reader type settings...
- Page 5 2.3 Restore factory settings and version number query 3、Prefix and suffix data entry 3.1 Prefix and suffix settings Fill in the prefix and suffix that need to be added here, up to four bytes. After completing, click the setting button behind, the status window on the right side will display the successful setting, as shown in the figure:...
- Page 6 3.2 915M machine information Card search interval value refers to the time interval between two card readings. The larger the value, the longer the interval time; Card filtering times refer to the number of repeated card readings. The larger the value, the longer the interval between repeated readings;...
- Page 7 Precautions 1. If the data cable is directly inserted into the charging plug, the card reading will be unsuccessful. 2. There are many factors that affect the card reading distance. Different protocols, different antenna designs, surrounding environments, and different cards will all affect the actual card reading distance. 3.
