Quick Guide
Connecting with Snapdrill
Hole Saw assembly
Hole cutting
Maintenance

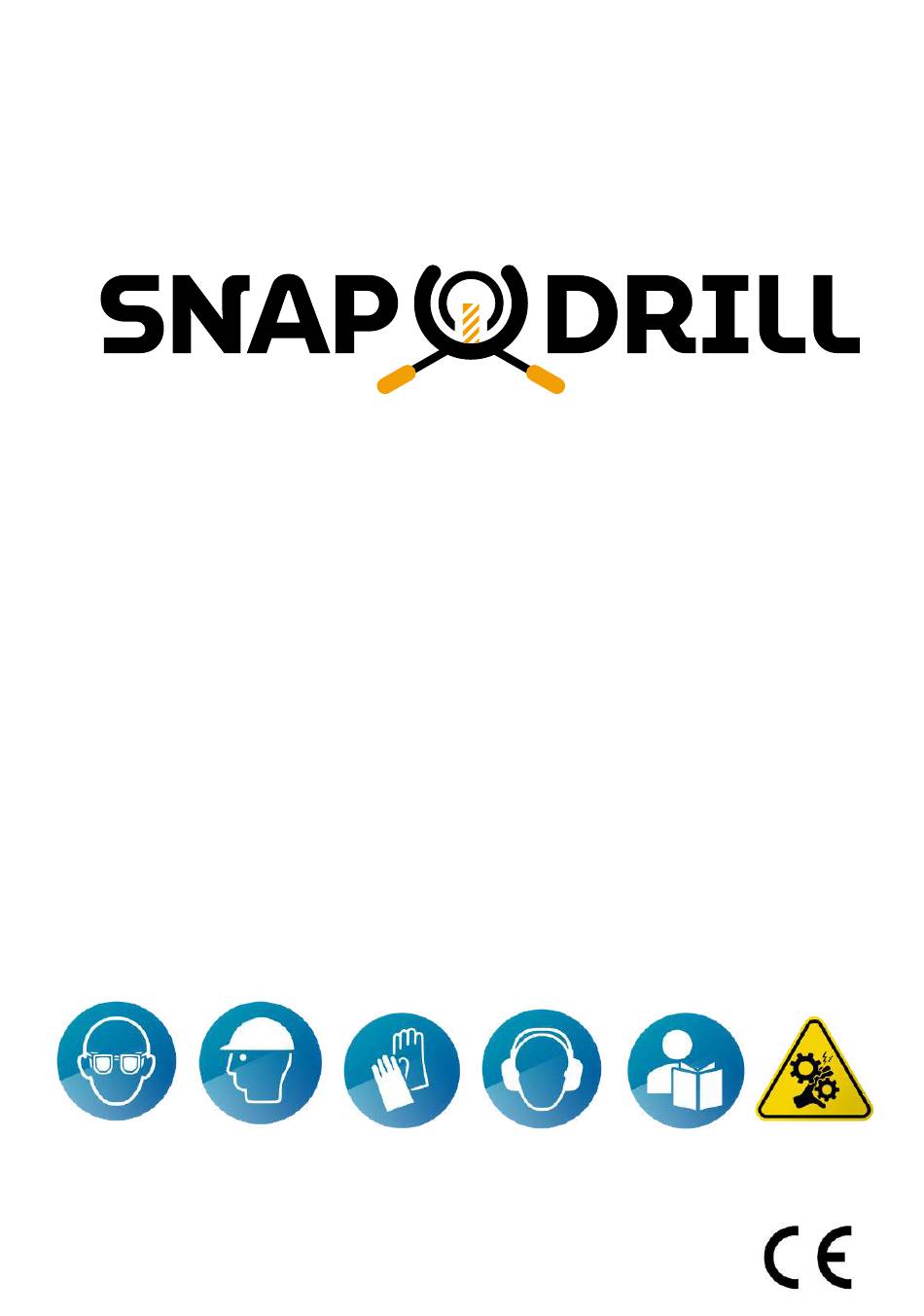

HEALTH AND SAFETY WARNING:
Keep hands away from hole saw and clamp..
Wear hearing protection, work gloves and
safety glasses during operation. Read full
Snap Drill AS, Norway, 2021
techincal guide before use.
Advertisement
Related Manuals for SNAP DRILL SD42,4
Summary of Contents for SNAP DRILL SD42,4
- Page 1 Connecting with Snapdrill Hole Saw assembly Hole cutting Maintenance HEALTH AND SAFETY WARNING: Keep hands away from hole saw and clamp.. Wear hearing protection, work gloves and safety glasses during operation. Read full Snap Drill AS, Norway, 2021 techincal guide before use.
- Page 2 Connecting with Snapdrill Snapdrill connects directly to its drive unit with the quick lock. Turn and hold the locking nut counter clockwise. Interlock the two with their respective connective patterns. It is easily done with Snapdrill already on the pipe. Alternatively freehanded.
- Page 3 Hole Saw assembly Snapdrill and the battery drill need to be connected in order to insert hole saws. Tighten the feed nut. Pull the trigger and let the insert area come forward.
- Page 4 Hole Saw assembly Remove the bolt. Use the included socket and flex handle. Clean the surface area. Insert the hole saw, and assemble the bolt. Tighten, and then give it a nudge.
- Page 5 Hole Cutting with Snapdrill Before drilling, make sure of the following. The power tool is put in gear one On max torque (drill symbol) Has at least two dots on the battery.
- Page 6 Hole Cutting with Snapdrill The hole saw needs to be in its starting position. Ensure this by tightening the feed nut and reverse the rotation on the drill, check that the hole saw will not go any further back. Always return the feed nut before drilling. Apply lubricant to the hole saw.
- Page 7 Hole Cutting with Snapdrill For precise hole cutting: Measure the diameter of the outer ring. Mark the radius' distance from the holes center. Aim with the outer ring.
- Page 8 Hole Cutting with Snapdrill Extend the foldable handles, open the clamp, and tighten Snapdrill to the pipe. (Fasten clockwise, loosen counter clockwise) First with one hand, adjusting with according to the spirit level Then with two hands. Do not over tighten...
- Page 9 Hole Cutting with Snapdrill Put the drill in forward rotation. Fully activate the trigger, drill continuously. Start adjusting feed when the hole saw starts cutting. More feed is faster, but will is also wear down the hole saw quicker. A functional Snapdrill and hole saw will finish the drilling operation within 15 to 45 seconds.
- Page 10 Hole Cutting with Snapdrill Once drilling is completed, do not yet return the hole saw, loosen the handles. First with two hands, then with one hand while holding the battery drill with the other. Remove Snapdrill from the pipe. Tighten the feed nut for and return the hole saw for removal of debris.
-
Page 11: Maintenance
Maintenance Regularly clean Snapdrill for metal shavings Ensure that the hole saw sits properly Apply lubricant frequently Refer to our website, www.snapdrill.no for contact info...
