CUT225

CUTTING MACHINE MANUAL

Table of Contents

Need help?

Do you have a question about the CUT225 and is the answer not in the manual?

Questions and answers

Summary of Contents for BFluid CUT225

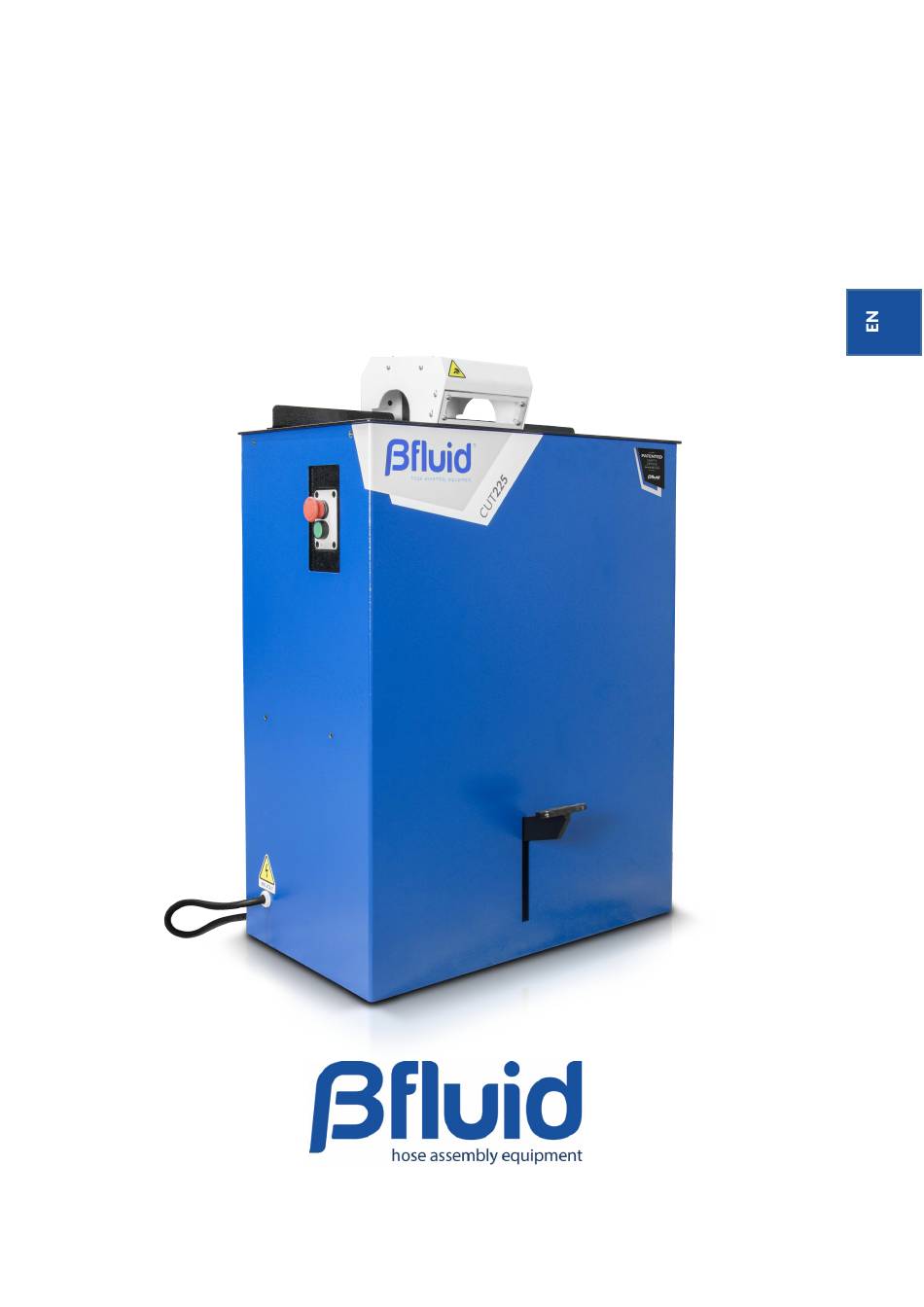

Page 1 CUT225 CUT225 CUTTING MACHINE MANUAL...
Page 2 CUT225 English...
Page 3: Table Of Contents
CUT225 A. INDEX A. INDEX ........................................23 B. IMAGE INDEX ....................................... 24 C. GENERAL INFORMATION ................................25 D. WARRANTY AND LIABILITY ................................. 30 E. INSTRUCTION AND MANUAL PROPOSE ..........................31 F. TRANSPORTATION ................................... 32 G. EQUIPMENT SPECIFICATIONS ..............................33 H. MACHINE INSTRUCTIONS ................................34 I.
Page 4: Image Index
B. IMAGE INDEX Image 1 – BFLUID Name plate ................................26 Image 2 – Identification of each machine ............................29 Image 3 – Eletrical diagram ..................................34 Image 4 – Controls components ................................. 34 Image 5 – Blade refining ..................................35 Image 6 –...
Page 5: General Information
C. GENERAL INFORMATION 1. Company overview BFLUID is a market leading Portuguese company in the manufacture and distribution of industrial flexible hydraulic hoses, components and machinery. It’s a dynamic SME, with the motto «If better is possible, being good is not enough», which translates into an ongoing research towards providing client satisfaction in terms of know-how, quality, expertise, innovation, flexibility and naturally good prices.
Page 6: Image 1 - Bfluid Name Plate
2. Manufacturer Identification Image 1 – BFLUID Name Plate BFLUID Estrada D. Miguel 2734-2758, D-E-F-G 4510-243 Gondomar Portugal TELEFONE: +351 224 664 690 FAX: +351 224 664 699 EMAIL: barboflex@barboflex.pt Hose Assembly Equipment...
Page 7 CUT225 3. CE Declaration CE DECLARATION OF CONFORMITY (Directive 2006/42/CE, Annex II, Chapter A) Manufacturer information: BFLUID Estrada D. Miguel 2734-2758, F-G-D-E 4510-243 Gondomar Portugal Phone Number: +351 224 664 690 FAX: +351 224 664 699 Email: barboflex@barboflex.pt Identification of the person authorized to compile the technical file: BFLUID Estrada D.
Page 8 BFLUID declares that the CUT225 cut machine with the following details: Function: Cutting hydraulic hose Brand: BFLUID Serial N.º: ________________ Complies with the guidelines of the following community directive: - Directive 2006/42/CE of the European Parliament and of the Council of 17 May, on machinery, transposed into Portuguese law by Decree-Law 103/2008 of 24 June;...
Page 9: Image 2 - Identification Of Each Machine
CUT225 4. Machine model and serial number Each machine will be provided with a label placed on its back, containing the following information: • Name • Address • Machine description • Machine model Serial number • Year of manufacture •...
Page 10: Warranty And Liability
Furthermore, the goods must be returned in their original packaging. During the term of this warranty, BFLUID will repair or replace the equipment - at your option - assuming the costs arising therefrom, provided that it is informed by the client within three (3) days after the onset of the operation interruption or defect.
Page 11: Instruction And Manual Propose
CUT225 This manual was developed by BFLUID's technical department and aims to compile all necessary information in order to establish guidelines concerning the assembly, installation, maintenance and operation of the cut machine. These rules are essential to assure the proper function of the machine while maintaining the necessary safety requirements.
Page 12: Transportation
• Make sure the cut is always performed in safe conditions, never insert hands into the cutting area when the engine is running and always keep them at a minimum distance of 200mm from the blade. • Use appropriate gloves and protective gear. •...
Page 13: Equipment Specifications
CUT225 EQUIPMENT SPECIFICATIONS TÉCNICAL INFORMATION Corte CUT 225 CORTE CUT 225 MEASUREMENTS SINGLE-PHASE THREE-PHASE Cutting capacity 3/16>2" 3/16>2" Engine Power 2.2KW 2.2KW Revolution p/ Min. 2900RPM 2900RPM Disc Ø250MM Ø250MM Measurements 1025mm x706mm x 563mm 1025mm x 706mm x 563mm...
Page 14: Machine Instructions
MACHINE INSTRUCTIONS CONTROLS: 1-Switch ON and Emergency Button 2-Foot pedal 3 -Acrylic protection Image 3 – Controls components 1. Protection system and machine description This machine was designed for cutting hydraulic hoses. The machine consists of a rotating blade in a geared electric gearmotor, used to cut hydraulic hoses internally and externally.
Page 15: Machine Operation Instructions
CUT225 3. Three-phase circuit diagram Motor 2.2KW 400V 50Hz Disjuntor motor 5,5/8A MACHINE INSTRUCTIONS 1. Adjusting and refining instructions • Remove plastic part. • Place Key • Rotate intended direction (Right – Go up / Left – Go Down) Image 5– Blade refining 2.
Page 16: Image 7 - Emergency Button
• The tool must be installed as shown in image 6. 3. Emergency Stop 1. Emergency Button Image 7 – Emergency Button 4. Information on prohibited operation methods • It is strictly forbidden to use the cut machine for purposes other than those previously mentioned.
Page 17: Inicial Check-Up
CUT225 J. INITIAL CHECK-UP Place the machine on a stable surface. Make sure the power cord is equipped with a safety differential circuit breaker and overload cut-out. • A ground connection in accordance with the provisions of the electrical installation safety standards is mandatory.
Page 18: Lighting
1. Rotation Direction Image 8- Rotation direction K. LIGHTING The equipment does not have its own lighting and so it should be used in properly lit areas. If the visibility on site is not appropriate, it's necessary to use artificial lighting equipment.
Page 19 CUT225 1. Maintenance Instructions The indicated activities must be carried out by qualified personnel. The following maintenance activities are essential, and must be carried out quarterly: • Check the tightness of all screws used; • Check the machine levelling, and proceed with the necessary adjustments;...
Page 20: Spare Parts
M. SPARE PARTS Image 9- Spare parts Components: 1 – Rear inspection box 10 – Protection 2 – Connection rod 11 – Fixing left protection 3 – Blade set 12 – Open plate 4 – Cutting system 13 – Right Ruller 5 –...
Page 21: Manufacturer Recomendations
CUT225 N. MANUFACTURER RECOMMENDATIONS Cutting machines were developed based on principles that ensure a hazard-free operation, provided that there is a correct usage in compliance with the safety rules. The lack of understanding or failure to comply with these rules may put operators and others in hazardous conditions which may cause serious damage to persons and properties.
Page 24 Hose Assembly Equipment...
