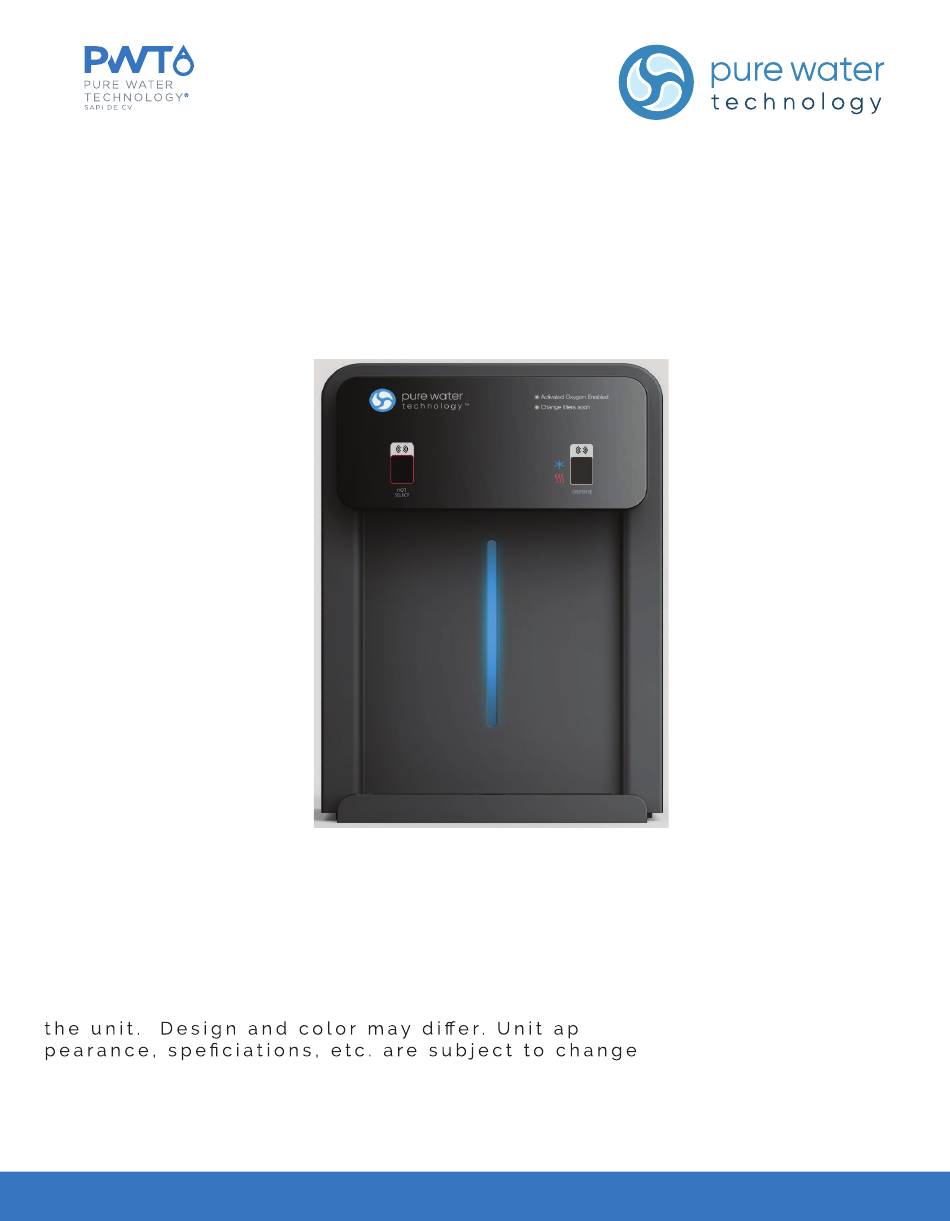

P W 9 0 C T
S e r v i c e M a n u a l
p u r e h y d r a t i o n .
N O T E :
P l e a s e r e a d t h e s e i n s t r u c t i o n s b e f o r e o p e r a t i n g
-
w i t h o u t p r i o r n o t i c e i f n e c e s s a r y f o r i m p r o v i n g
u n i t p e r f o r m a n c e . T h e r a t e d v o l t a g e o f t h i s u n i t i s
A C 1 2 0 V / 6 0 H z .
Manual de Servicio PW90 CT Página 1 de 25
Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados
81-1642-7777
atencion@purewater.mx
purewater.mx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW90 CT and is the answer not in the manual?

Questions and answers

Summary of Contents for Pure Water Technology PW90 CT

  • Page 1 . T h e r a t e d v o l t a g e o f t h i s u n i t i s A C 1 2 0 V / 6 0 H z . Manual de Servicio PW90 CT Página 1 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx...
  • Page 2: Table Of Contents

    Filter Light Reset and Maintenance ............15 Part Diagrams ....................16 Specifications ....................22 Product Limited Warranty .................. 23 Warranty Procedure ...................24 Manual de Servicio PW90 CT Página 2 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 3: Conditions For Use

    Note Always check applicable plumbing codes before tapping into a water or drain line Manual de Servicio PW90 CT Página 3 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 4: System Overview

    • Hot Dispense pump increases available hot water capacity The PURE WATER TECHNOLOGY PW90CT is available in two filter configurations: PW90CT-R : This PURE WATER TECHNOLOGY model filters your water through a series of filters and an RO membrane to remove contaminants.
  • Page 5: Receiving Your Equipment

    Photograph all damages to be submitted with claim. THIS MUST BE DONE WITHIN 24-48 HOURS OF DELIVERY. If not reported within 2 busi ness days, PURE WATER TECHNOLOGY and/or carrier will not be responsible for replacement or repair.
  • Page 6: Safety Precautions

    Power System: Available in operating voltages of 120 V 60 Hz, 100 V 50/60 Hz, 230V 50 Hz. Manual de Servicio PW90 CT Página 6 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 7 •Do not place any type of water container or heavy item on top of the system. Water may leak into the electrical system causing a fire hazard. Manual de Servicio PW90 CT Página 7 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 8: Pre-Installation Preparation

    Allow at least 30 minutes for adequate heating, then press the two Hot Water Buttons simultaneously NOTE: Check UPC and Local Plumbing Codes to confirm that all connections are in compliance. Manual de Servicio PW90 CT Página 8 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx...
  • Page 9: Filter Flushing Procedures

    5. Reinstall the sediment and carbon filters in their original places. Filter flushing is now complete. 6. Replace lower front panel. Manual de Servicio PW90 CT Página 9 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx...
  • Page 10 3. Turn the water on and flush according to the instructions on the filter label 4. Remove the supply and drain lines and reconnect the tubing to their originally installed location. Manual de Servicio PW90 CT Página 10 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx...
  • Page 11 flushed. Please contact technical support for further assistance. Manual de Servicio PW90 CT Página 11 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 12: Flushing The Complete System

    6. It is strongly encouraged to perform this step on each annual service call as well. Manual de Servicio PW90 CT Página 12 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 13: Final Inspection

    Hot Tank immediately after installation of the system. 3. Never lay the system on its side. Manual de Servicio PW90 CT Página 13 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx...
  • Page 14: System Programming And Inspection

    Temperature check (Cold water should be below 50°F, Hot water should be above 160°F) TDS check Manual de Servicio PW90 CT Página 140 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 15: Filter Light Reset And Maintenance

    Replace all internal fittings and tubing. Replace all solenoid and cold/hot valves. Replace battery on main PCB (soldering required). Manual de Servicio PW90 CT Página 15 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 16: Part Diagrams

    Cold Tank Assembly i. Hot Tank Assembly j. Filter Box Assembly – RO k. Filter Box Assembly - M Manual de Servicio PW90 CT Página 16 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 17 P a r t D i a g r a m s Electrical Wiring Diagram Entire System Manual de Servicio PW90 CT Página 17 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 18 P a r t D i a g r a m s Front Assembly Dispense Assembly Manual de Servicio PW90 CT Página 18 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 19 P a r t D i a g r a m s Left Panel Assembly Right Panel Assembly Manual de Servicio PW90 CT Página 19 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 20 P a r t D i a g r a m s Middle Plate Assembly Base Plate Assembly Manual de Servicio PW90 CT Página 20 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 21 P a r t D i a g r a m s Cold Tank Assembly Hot Tank Assembly Manual de Servicio PW90 CT Página 21 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 22: Specifications

    (includ - ing any possible pressure Spikes) could exceed 80 PSI (5.5 bar) Failure to comply will void warranty. PURE WATER TECHNOLOGY accepts no liabili - ty for damage caused by excessive water pressure. Do not use this...
  • Page 23: Product Limited Warranty

    The foregoing is in lieu of all other agreements expressed, implied or statutory and all other obligations to assume any obligations of liability in connection with this product. In no event will PURE WATER TECHNOLOGY be liable for special, incidental, consequential or punitive damages, or for any delay in performance of this warranty agreement due to causes beyond its control.
  • Page 24: Warranty Procedure

    The account management team will then provide a system credit. Manual de Servicio PW90 CT Página 24 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
  • Page 25 Pure Water Technology SAPI de CV Av. las Huertas 116, La Aurora, Santa Catarina, N.L., Bodega 7 www.purewater.mx Tel. (81) 1642-7777 Manual de Servicio PW90 CT Página 25 de 25 Pure Water Technology SAPI de C.V. (2022) Todos los derechos reservados 81-1642-7777 atencion@purewater.mx purewater.mx...
