Summary of Contents for Infinite Peripherals SCP-10

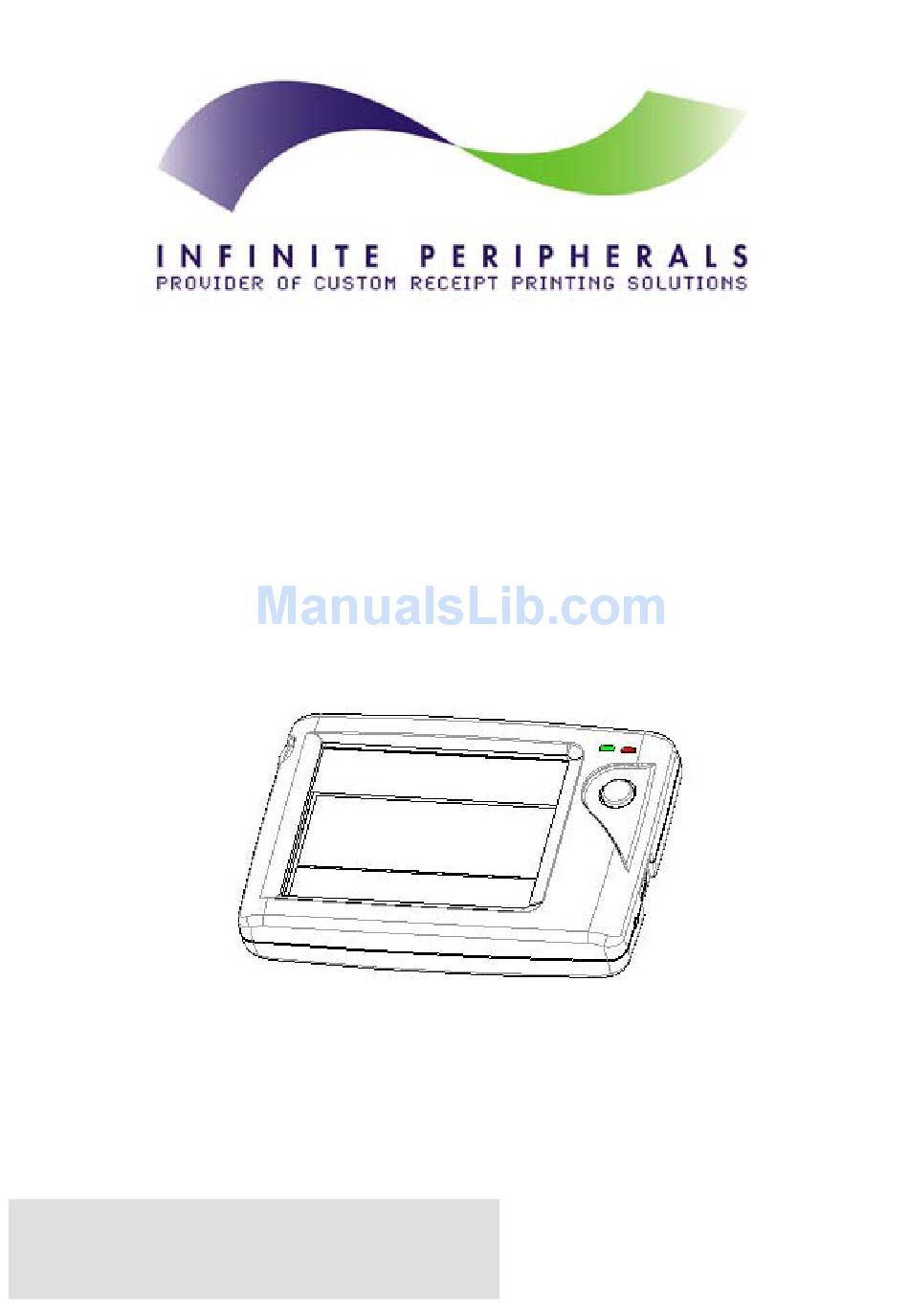

- Page 1 SCP-10 Signature Capture Pad User’s Manual Infinite Peripherals, Inc..... www.ipcprint.com SCP-10 User’s Manual v1.03...
-
Page 2: Contents
Legal notice The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Infinite Peripherals is under license. Contents Contents... 2 Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 .... -
Page 3: Table Of Contents
Technical Data ... 4 Box Contents ... 5 Getting Started ... 6 About Your SCP-10 ... 7 Charging the SCP-10... 8 Status & Operating Modes ... 9 Reset... 10 Clear Last Paired Device ... 11 Compatible Devices ... 12 Attaching Device ... 13 ®... -
Page 4: Technical Data
Battery Life Dimension Weight Drivers & Software Environment Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 Specifications Touch panel Coordinates , Time and Pressure data capturing 256 x 192 points 2 x 16 Alphanumeric LCD display Internal buzzer 2 Two-color LEDs Supports PDA devices with USB - Blackberry, Palm &... -
Page 5: Box Contents
Drivers & SDK are distributed online and is available for download at our website indicated below. For details on using the SCP-10 Drivers & SDK, please refer to the SDK’s documentation. For the latest SCP-10 Drivers & SDK’s, visit our developer web site at: http://www.ipcprint.com/support/default.asp Infinite Peripherals, Inc. -
Page 6: Getting Started
Getting Started The SCP-10 allows you to capture signature information onto your PDA & Smartphone. The following Quick Start guide will help to get your SCP-10 ready for use. Quick Start: Step What to do Charge the SCP-10 rechargeable battery as recommended in this manual. -
Page 7: About Your Scp-10
About Your SCP-10 ♦ SCP-10 USB Overview Strap Eyelet ♦ SCP-10 Bluetooth Strap Eyelet Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 Charging LED On LED Figure 1 ® Overview On LED Figure 2 .... -
Page 8: Charging The Scp-10
Charging the SCP-10 The SCP-10 uses a Lithium Ion rechargeable battery pack. Before first use, the SCP-10 battery pack should be charged for at least 4 hours. To prevent electrical damage to the SCP-10 and/or battery pack, please use approved USB to Mini USB cables only. -
Page 9: Status & Operating Modes
Status & Operating Modes The SCP-10 uses LEDs to indicate various conditions of operation. Possible LED lighting indications may result from charging, active/online status, or because of low battery. The following explains these conditions and LED indication. ON/OFF LED Charging LED ON/OFF LED Infinite Peripherals, Inc. -
Page 10: Reset
To reset the SCP10 use a paper clip and insert into hole slightly pushing on the reset button. Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 Figure 5 ....Page 10... -
Page 11: Clear Last Paired Device
Clear Last Paired Device The SCP-10 Bluetooth version is designed to remember the last paired device. This eliminates the need to reenter the passkey every time the SCP-10 establishes a Bluetooth connection with the device. The table below provides information on using power button functions. -
Page 12: Compatible Devices
PDA & Smartphone USB ® & Bluetooth devices. The SCP-10 can be used in a variety of applications where signature capture is required. * Please visit our website for updates on our compatibility with the latest devices. -
Page 13: Attaching Device
Attaching Device There are two versions of the SCP-10 designed to be used with ® USB & Bluetooth care must be taken to ensure the USB connector and the handset connector are not accidentally damaged. The figures below show how to attach the different device to the SCP-10. -
Page 14: Bluetooth Setup
BlackBerry devices require the use of the device Bluetooth manager. Image on the right shows a typical Blackberry Bluetooth When adding / pairing the SCP-10, use the [0000] pairing key when prompted. Windows Mobile Devices: Creating a New Partnership or Pairing ®... -
Page 15: Blackberry Bluetooth Setup
Click the trackwheel to select the [Add Device] option. Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 ® manager as .... -
Page 16: Searching For Signature Capture Pad
Bluetooth devices. If you have more than one Bluetooth turned ON, you will need to locate the [IPC SCP-10] from the resulting list of found devices. Step 4: When searching has completed, the [Select Device] message in the figure on the right will be displayed. -
Page 17: Entering Passkey
Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 ....Page 17... -
Page 18: Replacing Battery
Replacing Battery To replace the battery in the SCP-10 signature capture pad follow the steps below. Steps: Turn over the SCP-10 and place it on a flat surface. Remove the (2) screws as shown in the figure on the right. -
Page 19: Developing Solution
Devices BlackBerry Windows Mobile Palm / Palm One For details on using the SCP-10 Drivers & SDK, please refer to the SDK’s documentation. For the latest SCP-10 Drivers & SDK’s, visit our developer web site at: http://www.ipcprint.com/support/default.asp Infinite Peripherals, Inc. -
Page 20: Troubleshooting
Version ® * Device Bluetooth radio not on. * SCP-10 not paired with device. * SCP-10 battery low. * SCP-10 driver not installed on device. USB Version * SCP-10 battery low. * SCP-10 driver not installed on device. ® Bluetooth Version ®... -
Page 21: Federal Communications Commission
2) this device must accept any interference, including interference that may cause undesired operation of the device. Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 interference ....radio communications. - Page 22 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 instructions ....satisfying...
-
Page 23: Contact Information
Contact Information National Sales Headquarters: HQ and Main Distribution Facility: Technical Support: Infinite Peripherals, Inc. www.ipcprint.com SCP-10 User’s Manual v1.03 Infinite Peripherals, Inc. 1340 Reynolds Avenue Suite 101 Irvine, CA 92614 Toll Free: 866-278-7860 Phone: 949-222-0300 Fax: 949-222-0375 www.ipcprint.com MobileSales@ipcprint.com Infinite Peripherals, Inc.
