Summary of Contents for MINJCODE MJ5818

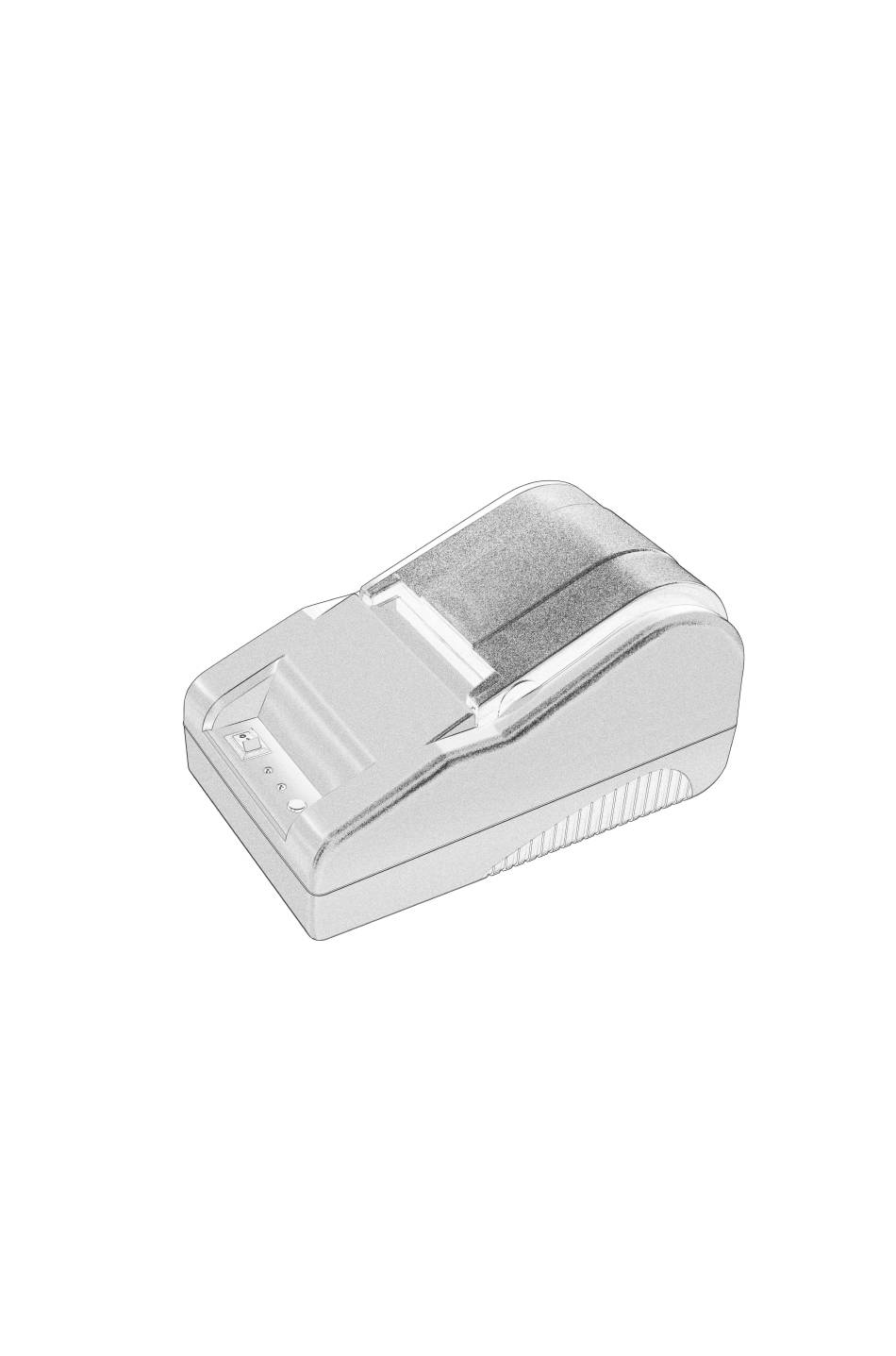

- Page 1 58MM Thermal Receipt Printer User manual Please read this manual carefully before using it, and keep it for future reference.
- Page 2 About this manual Thank you for your purchase of our company's 58MM thermal printer. This manual can help you learn to use this product. Please read this manual before use, and safekeeping, so that all the use of this product can read it.
- Page 3 Package: ◆Printer ◆Adaptor Power line 1 PC ◆Paper roll 1 ROLL ◆USB Data cable 1PC ◆Use manual 1PC ◆Driver CD 1PC Product Features： ◆Low noise, high speed printing ◆Support raster bitmap printing ◆Easy paper install structure,simple and convenient to operate ◆Built-in power supply design, to save space and more convenient to configure;...
- Page 4 Parameters： Items Parameters Printing Method Thermal Line Printing Method 48MM Resolution 384dots/Line（8dots/mm，203dpi） Printing Speed 76mm/Second Interface Type Line Spacing 3.75 mm （Can adjust line spacing by command） Line No. Font A:32 character /Line Font B:42 character/Line Print Simple,traditional Chinese-16 lines parameters Character Standard GB18030 simplified/traditional...
- Page 5 Diameter ≤60mm Feed Method Easy feed (Clamshell feed) Commands Commands ESC/POS Power Power Adaptor Input：AC 100V-240V,50-60Hz Output：DC 12V/2A Casher Drawer DC 12V/1A output Buffer Input Buffer 32K bytes NV Flash 40K bytes Physical Weight 590g characterist Dimension 185*130*112(MM) Environme Working Temp：5 ~ 45℃,Humidity：10 ~ 80% Storage Temp：...
- Page 6 Printer connection: 1 connect the power adapter cable to the printer power supply interface. 2 connect the USB data cable to the printer's interface. 3 the cashier drawer cable connected with printer interface . Install the print paper 58MM series thermal printer using 58MM thermal paper, using easy paper structure, convenient to install paper.
- Page 7 Switch, key name, indicator and function: 1 POWER switch The switch can turned on and off the printer power supply. 2 (FEED) key Press the button can feed. 3 (STATUS) light STATUS light long off indicates the printer is in the normal working state, STATUS light flashing indicates that the printer is short of paper, print head overheating or error and other abnormal conditions.
- Page 8 Printer connection : 1.Windows driver installation Our driver is very convenient to install and use, click on the driver file, the next step directly... then can be used when installation success, no need to configure the USB port.
- Page 11 Printer Repair and maintenance: 1. printer external and warehouse cleaning: please use a wet cloth gently wipe the printer surface and internal paper warehouse. 2. Printer core clean: printer core must be clean on time, especially the quality of printing is decline, cleaning methods are as follows: put cotton dipped in anhydrous alcohol and gently wipe the printer core ceramic parts as shown in the picture below until clean enough.
