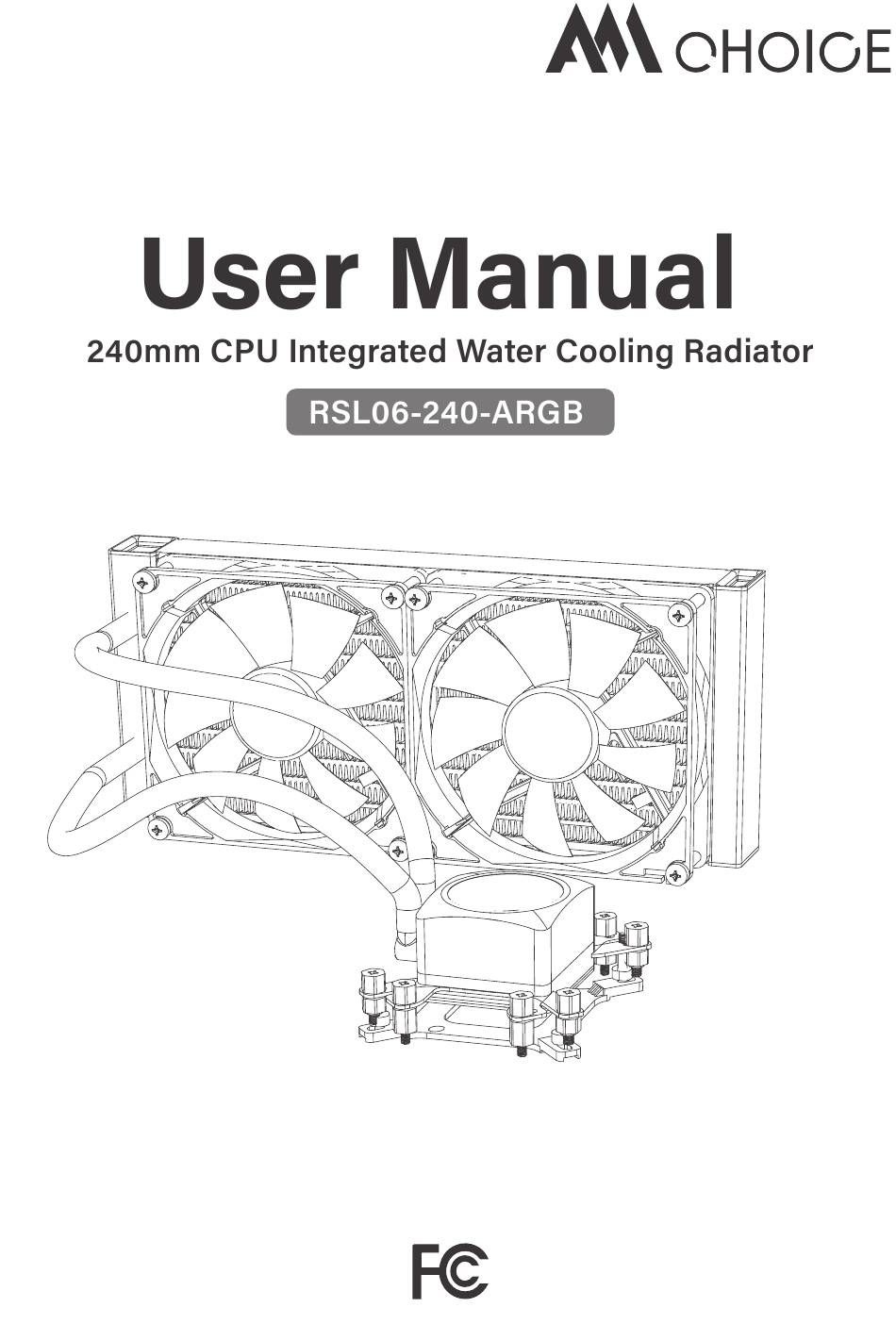

Summary of Contents for AM CHOICE RSL06-240-ARGB
-
Page 2: Components List
Components List 7. 4* Fixing Nuts 1* CPU Integrated Water Cooling Radiator 8. 4* INTEL Double-ended Screw Bolts 2. 2* Fans 9. 4* AMD Double-ended Screw Bolts 3. 8* Case Screws 10. 2* INTEL Brackets 4. 8* Fan Screws 11. 2* AMD Brackets 5. - Page 3 INTEL LGA115X/1366 Assembly Instructions Put the rubber pads into the supporting foots of the back plate and remove the fixing nuts from the screws. Assemble the back plate on the back of the motherboard, and ensure that the fixing nuts stick out from the back of the motherboard to the front.
- Page 4 INTEL LGA2066/2011 Assembly Instructions Fix the INTEL double-ended screw bolts on the motherboard. Assemble the INTEL bracket on the water cooling head and fix it with the fixing nuts. Fasten the water cooling head with the bracket assembled and the INTEL bracket double-ended screw bolts by using the fixing nuts.
- Page 5 AMD Assembly Instructions Take out the AMD assembly frame. Fix the AMD double-ended screw bolts on the motherboard. Assemble the AMD brackets on the water cooling head and fix it with the fixing nuts. Fasten the water cooling head with the brackets assembled and the AMD double-ended screw bolts by using the fixing nuts.
- Page 6 Radiator Assembly Instructions If the radiator is directly assembled inside the computer, please use the fan screws and washers to fix the fan and the radiator first. Then use the case screws and washers to fasten the radiator on the case. If the radiator is directly assembled on the case of the computer, please assemble the fan with the fan screws and washers first.
- Page 7 Connection Connection 4-PIN/CPU_FAN/CPU_OPT AIO_PUMP/W_PUMP CPU_FAN/CPU_OPT Connect the power cable on the water cooling head with the 4-pin plug on the mother- board. Connect the adapter cable with the 4-pin plug on the motherboard, and then connect the power cable of the fan with the adapter cable. Connect the ARGB cable of one fan with the 3-pin plug on the motherboard, and the ARGB cable of another fan is connected in series with the power cable of the fan through the adapter cable.
- Page 8 Contact Us Thank you for purchasing this product. If you have any questions or encounter any problems in the process of using this product, please contact us via amchoice@afterservice.vip. Please provide a detailed description of the problems and proof of purchase when contacting us.
