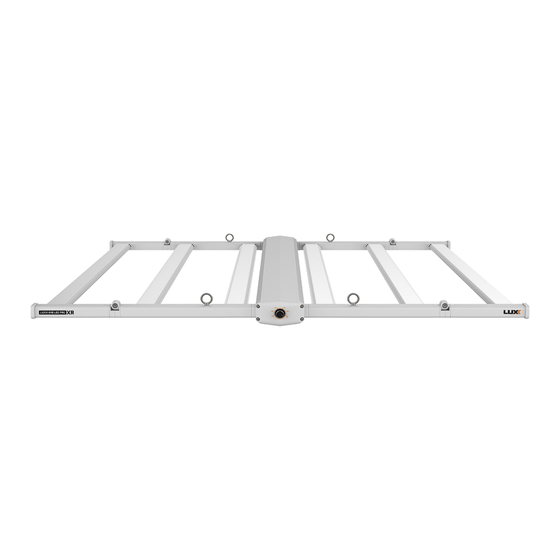

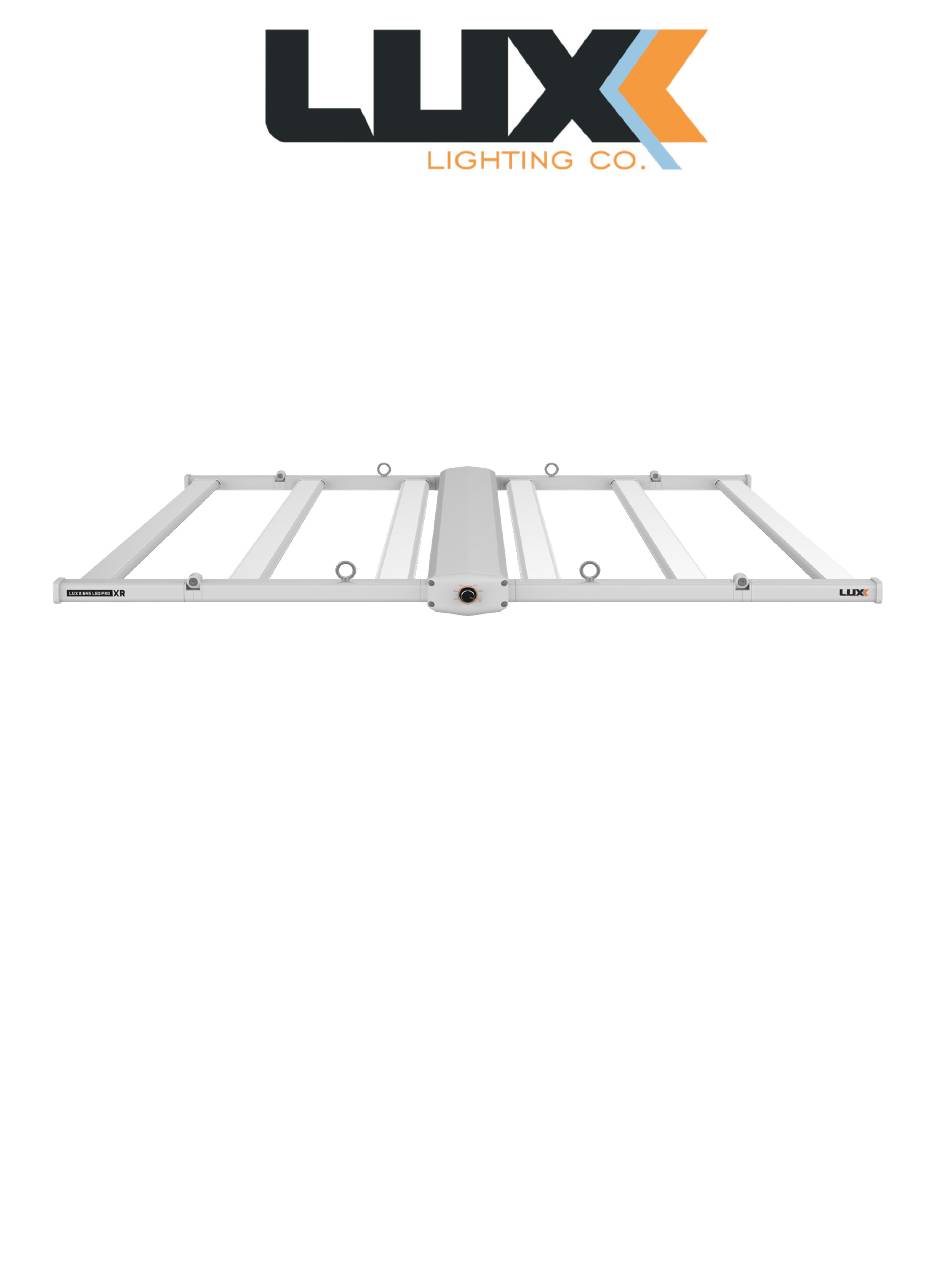

- Page 1 645w LED Pro XR LUX-645-277 Luxx 645 LED Pro LUXX 645 LED PRO XR USER MANUAL...
-
Page 2: Before You Proceed
3+ years. The 645w LED Pro XR series deploys a lens angle of 120 degrees, from a 6 bar design. Luxx Lighting is the new standard for indoor cultivation. -
Page 3: Installation
INSTALLATION WARNING! READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING OR WORKING WITH THE PRODUCT. BE SURE TO MOUNT THE FIXTURE TO SOMETHING THAT CAN HOLD THE WEIGHT OF THE FIXTURE. Installation of the horticultural luminaire and lighting structures described in this manual shall be per- formed by a qualified electrician or person who is familiar with the luminaires, in accordance with ap- plicable electrical codes, and are intended for installation subject to approval by the authority having jurisdiction. - Page 4 Connecting the LED fixture to the mains: • Choose the appropriate cordset for the available voltage and branch circuit. Model HGC906336 for 120Vac, 15A, Model HGC906337 for 240Vac, 15A, Model HGC906339 for 277Vac, 15A, or Model HGC906340 for 277Vac, 20A. •...
- Page 5 à une boîte de jonction standard pour la connexion électrique. CONNECTING UP TO 80 LED FIXTURES A group of up to 40 Luxx Lighting 645w LED Pro XR fixtures can be connected to both the main RJ9 port and the auxiliary RJ9 port of our NX-1 controller.
- Page 6 UNFOLDING THE 645W LED PRO XR WARNING! ALWAYS PLACE THE 645W LED PRO XR ON A CLEAN, SOFT SURFACE TO AVOID DAMAGING THE DIODES. STRUT MOUNTING PART LIST Parts list for mounting the fixture to strut:...
- Page 7 MOUNTING WITH HANGERS • Allow an additional 25” from the top of fixture for the length of hanger. • Locate the 4 eye bolts on the LED fixture and slide the hanger clips onto two opposing eye bolts. • Be sure to hang from the center of the hanger. SOLID DECKING MOUNTING •...
- Page 8 GROWING WITH LED’S BY POETRY OF PLANTS (IG @poetryofplants) When cultivating under LED lighting, a cultivator might be tempted to execute a similar methodology to HPS cultivation. This strategy can lead to frustrating results due to the environmental differences, higher usable lighting levels and subsequent higher photosynthetic rates that stimulate growth with less room for error.
- Page 9 If you find that there are any defects with this product that relate to either the workmanship or the materials but are not due to improper use or user error, Luxx Lighting shall, at its discretion, either replace or repair the product using the appropriate new or reconditioned parts.
- Page 10 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION –...
