- Page 1 User Manual...
-
Page 3: What's In The Box
It also supports Airplay 2, Spotify connect, Tidal connect, UPnP and DLNA protocols. WiiM Mini is capable to stream and output high quality music. WiiM Mini has both analog and digital output and analog input, it is perfect to use to build your own high-res wireless audio system. -
Page 4: Main Features
3. Main Features ● Streaming music via network without distance limitation or Bluetooth 5.0 up to 15 meters. ● Airplay2, Spotify connect, Tidal connect, Qplay, DLNA, UPnP streaming protocols supported. ● Support streaming source from online services, smart device, Support Works with Alexa and Works with Siri voice control, NAS, Bluetooth, analog input. -
Page 5: Specification

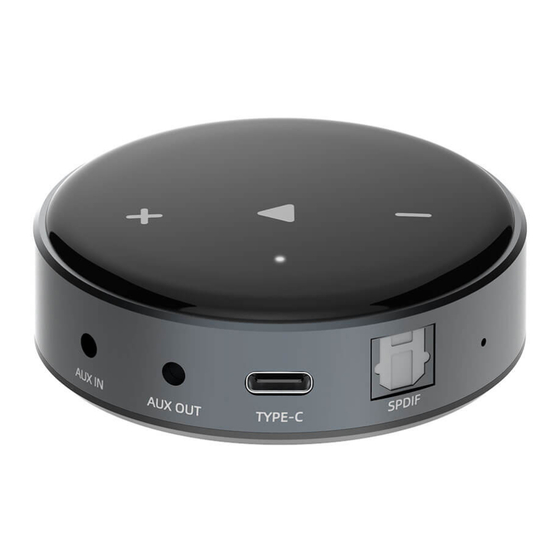

4. Specification IEEE802.11 a/b/g/n/ac 2.4G Wireless Network IEEE802.11 a/n/ac 1x1 5G Bluetooth Bluetooth 5.2 Line in 1Vrms Line in to Line out: BT in to Line out: Power Output =2Vrms Power Output = 2Vrms THD+N Ratio = 0.009% THD+N Ratio = 0.05% Line out SNA = 102dB SNR = 103dB... - Page 6 5. Interface Volume up Volume down Play/Pause LED indicator AUX OUT SPDIF AUX IN USB Type-C Optical Out 1AMIC for AP2 sync 5V/1A Power...
-
Page 7: How To Use
Flashing slow 6. How to Use 6.1 App download Download the WiiM Home application from App Store for iOS based devices and Google Play Store for Android based devices. The application supports English, Spanish, French, German, Italian, Portugese, Korean, Simplified Chinese, Traditional... - Page 8 ● Then you can change the name of the device. You can select a preset one or enter your own. ● After you define the name of the device, you will see it appears in the device list in WiiM Home app and now you can start streaming music.
- Page 9 8.2.3 Bluethooth To use Bluetooth, please swtich to bluetooth via app or by long press + & - button at the same time for 3 secs, then find bluetooth device WiiM Mini from your phone bluetooth setting and pair it .
- Page 10 8.3 App Features 8.3.1 Device Setting Rename: Change the device name. Speaker Info: Display device information like IP address, Mac address, SSID, firmware version, factory reset, etc. Alarm Clock: Setup up to 4 different alarm clocks with music of your choice.
- Page 11 3 secs, the LED will change to green. Open the Bluetooth on your mobile device. Pair the device Bluetooth (WiiM Mini) and play. 8.3.5 To Play Optical or AUX in Mode Once you connect AUX in cable, you can choose AUX mode on the application to play sound from the audio source connected.
- Page 12 If your device is logged into your Amazon account in the WiiM Home App. ● Open the Amazon Alexa app and log in the same Amazon account as the WiiM Home app. ● Click "Devices" at the bottom of the page.
-
Page 13: Streaming Services
8.5 Streaming Services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform. - Page 14 8.5.1 Spotify To use Spotify, you have to own spotify premium account. You will find the device in the device list on the Spotify application and choose the device you want to play. NOTE: One Spotify account can only streaming to one device at a time.
- Page 15 8.5.4 Qplay Our Devices Support QQ Music using the Qplay protocol, you have to turn on the Qplay in the QQ Music player setting and then find the device in the Qplay list. 8.6 Multiroom and Multizone Users can group multiple rooms and zones on the application.
- Page 16 8.6 Left and Right Channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel on device A and choose right channel on device B, and group them together and play in sync to make stereo. 8.7 Preset You can setup 6 preset buttons for quick access to online music and...
- Page 17 9. Play on PC There are Several Tools to Play Music from the PC. 9.1 To Play Music From iTunes on Mac and Windows PC Our devices can stream audio sources from local storage, media library in Mac and Windows PC and online services from iTunes.
- Page 18 9.2 To Play Music From Windows PC via Foobar2000 Our Devices Support UPnP Protocol, With the Popular Foobar2000, You can Play Music from Windows PC to Our Devices. Please follow the steps below: 1. Download the Foobar2000 and install it. 2.
- Page 19 Q: Do your devices support airplay2 and third-party DLNA apps? A: Yes. They support airplay2 and third - party apps like foobar2000, musicbee Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal.
- Page 20 Copyright 2022 by WiiM. All Rights Reserved. The information contained in this guide is believed to be accurate and reliable. WiiM assumes no responsibility for any errors contained in this guide. WiiM reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice.
