ARRL ETP Solder 101 24-Hour Clock Kit Construction Manual
Parts Inventory

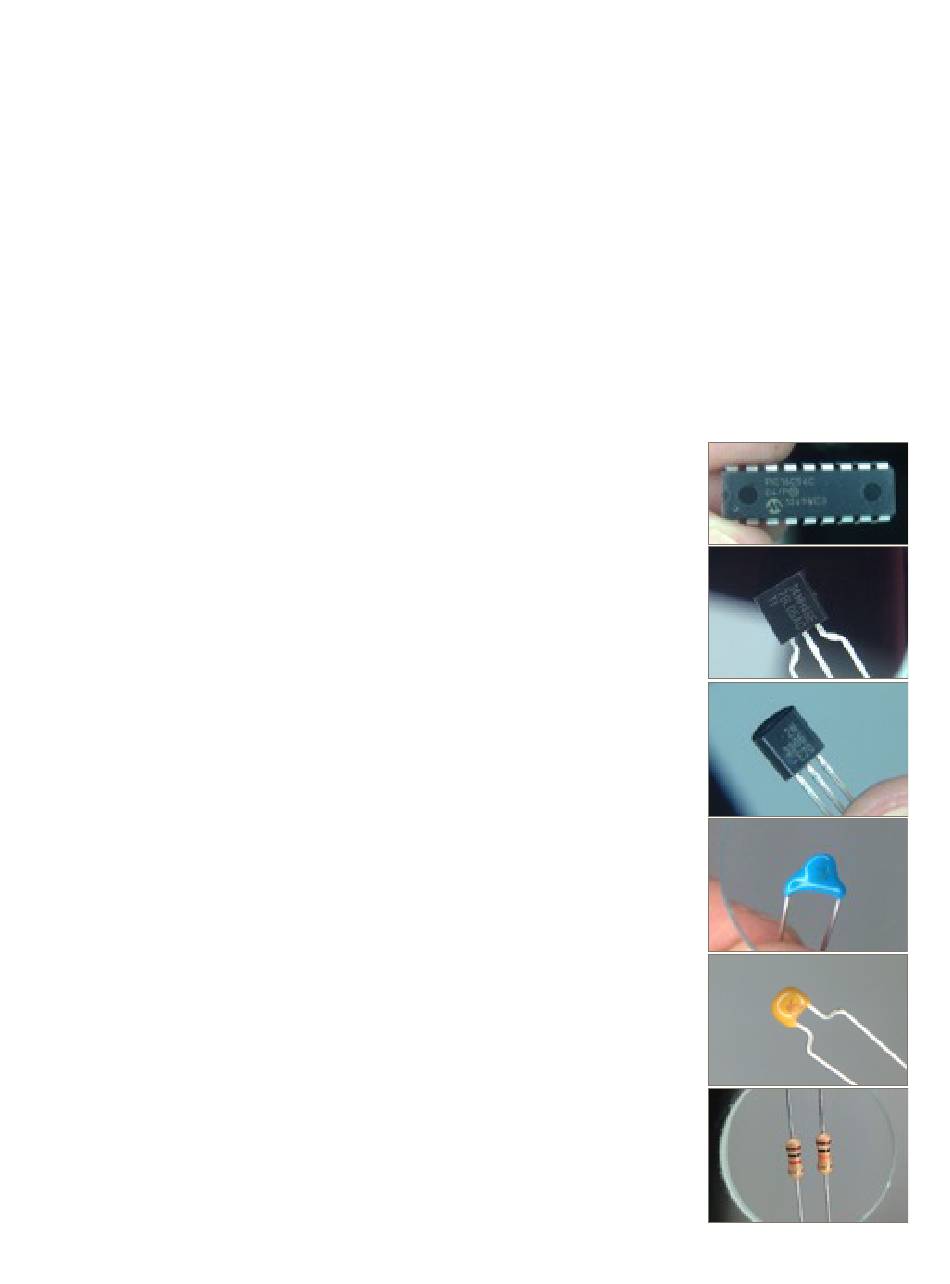

Cross-check the parts against this parts list. Note the resistor color codes,
especially the 10K (brn-blk-org) and 1K (brn-blk-red) resistors, which may
be difficult to tell apart. (Use good lighting and a magnifier.) Use care to
correctly identify the 78L05 voltage regulator, which is similar in
appearance to the 2N3906 transistors. The 0.1µF and 10pF capacitors may
also look very similar.
QTY
Description
❒ 1 printed circuit board
❒ 1 PIC16C54 microcontroller
❒ 1 18-pin DIP socket
❒ 1 78L05 voltage regulator
❒ 4 2N3906 PNP transistor
❒ 4 7-segment LED
❒ 1 1N914 diode
❒ 1 4 MHz crystal
❒ 4 10pF capacitor (100)
❒ 2 0.1µF capacitor (104)
❒ 8 220 ohm 1/4 W resistor (red-red-brn)
❒ 3 750 ohm 1/4 W resistor (vio-grn-brn)
❒ 4 1K ohm 1/4 W resistor (brn-blk-red)
❒ 4 10K ohm 1/4 W resistor (brn-blk-org)
❒ 3 SPST pushbutton switch
❒ 1 3-AA cell battery holder
❒ 1 vertical power jack, 2.1x5.5 mm
❒ 1 2-56 1/2-inch screw
❒ 1 2-56 nut
A Functional Approach
[B]
[C]
[D]
[E]
[A]
[F]
[G]
A
B
C
D
E
G
F
