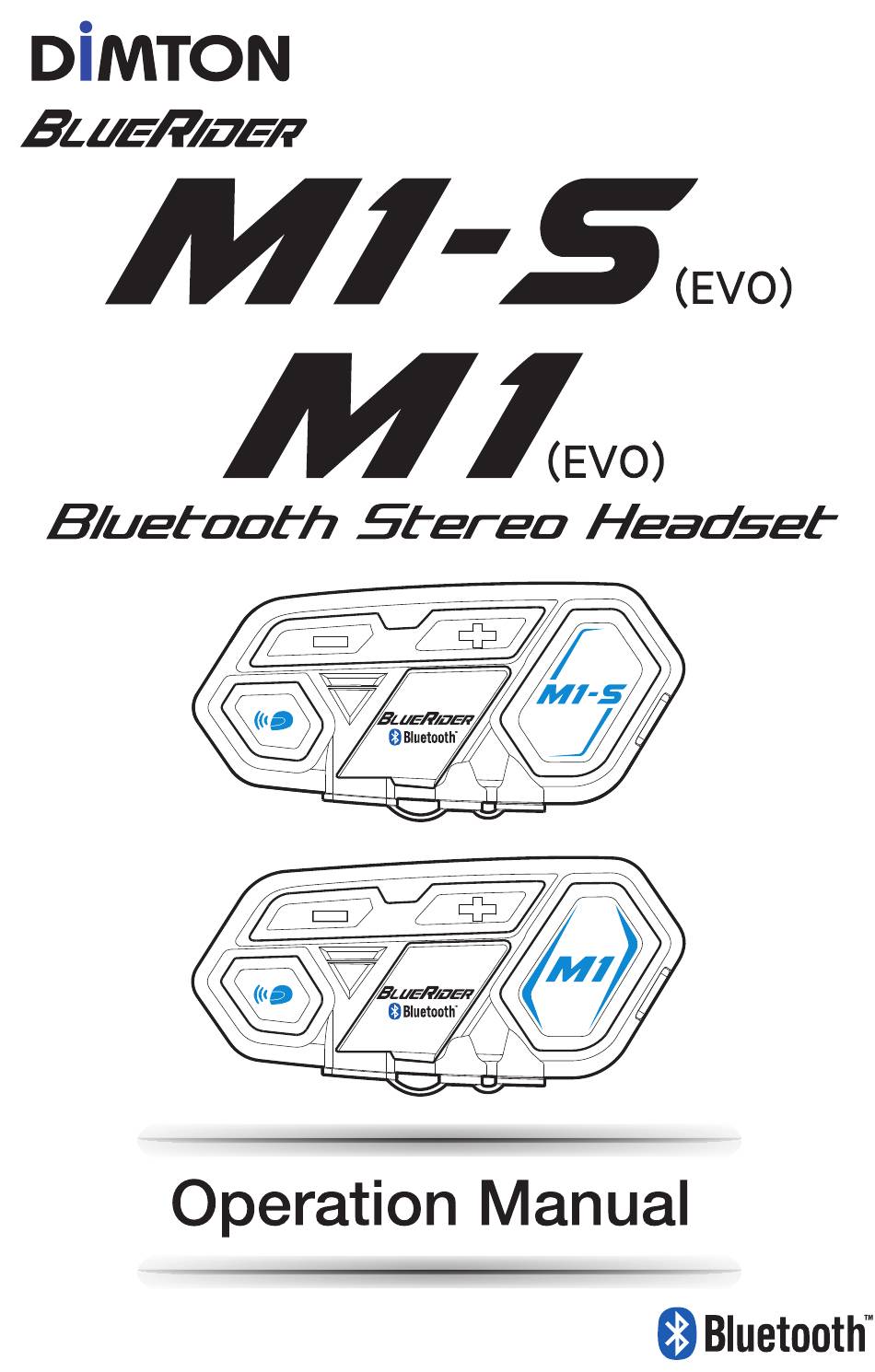

Dimton BlueRider M1-S Operation Manual

Bluetooth stereo headset

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the BlueRider M1-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Dimton BlueRider M1-S

Page 2: Table Of Contents
Operation Manual Attention １ Appearance Design ２ Recharge ４ Lower Power Notification ５ Adjust Volume of Voice Message ５ On/Off ６ Pair Up To Different Devices ７ Pairing With Cellphone ９ Cellphone Function １０ Voice Command １２ Music Selection １３ Memory Clearance / Headset Reset １４...
Page 3: Attention
Attention Thank you for purchasing Dimton M1-S, M1 Bluetooth stereo headsets. For the best user experiences, please read this manual before using. Sound volume warning Listening for long hours or to loud sounds may cause impaired hearing. Disassembly or modiﬁcation The M1-S is precisely made in the factory.
Page 4: Appearance Design
Appearance Design M1/M1-S Volume+ Volume- Function Speaker & microphone set port Intercom USB charger AUX In cable port FRONT 3M Dual Lock Product serial number sticker REAR...
Page 5 M1 EVO/M1-S EVO Volume+ Volume- Function Speaker & microphone set port Intercom USB charger AUX In cable port FRONT Product serial Bracket mounting number sticker chute REAR...
Page 6: Recharge
Recharge Recharge USB charger cable port For ﬁrst time use, please recharge the device until the red light is off. 1. Connect the device and computer port with the USB charger cable. *Bike USB charging ports are not recommended because unstable circuits may damage the headset.
Page 7: Adjust Volume Of Voice Message
Power Detect Function M1-S has a power detection function. When the device is on, short press volume – and volume + at the same time. The voice message will say Power over 90% Power over 50% Power lower 50% Power lower than 10%, please recharge immediately Adjust Volume of Voice Message When the headset is on, long press the intercom button and...
Page 8: On/Off
On / Off Switch On 3 seconds 1.Switch on: Long press function and intercom button at the same time for 3 seconds, until the function button ﬂashes blue light. A voice message will say “Welcome to the Bluerider Bluetooth communication system.” Switch Off 3 seconds 2.Switch off: When the device is on, long press function and...
Page 9: Pair Up To Different Devices
Pair Up To Different Devices M1-S/M1 can pair to different bluetooth devices. Passive Pairing Mode ＳＴＥＰ When the device is on, long press the function button ＳＴＥＰ The device will turn into passive pairing mode The function button will ﬂash red and blue light alternately quickly...
Page 10 Active searching ＳＴＥＰ When the device is on, long press the intercom Button ＳＴＥＰ When the headset is on, long press the intercom button until red and blue light ﬂash alternately slowly, meaning active searching mode. You will hear “du” notiﬁcation sound.
Page 11: Pairing With Cellphone
ＳＴＥＰ Switch on cellphone bluetooth, choose Bluerider M1-S or Bluerider M1, the pairing is complete. Remark: When pairing is complete, please make sure that both cellphone audio and media audio are checked, other call or...
Page 12: Cellphone Function
Cellphone Function Answer / Hang up Press to Answer / Hang up M1-S is set to manually answering incoming calls, when there is an incoming call, besides ringing, blue light will ﬂash. Press the function button to answer and press the function button to hang When talking, press volume + and volume –...
Page 13 Reject to Phone Calls Long press for 2 seconds When there is an incoming call, long press the function button to reject calls. Switch to Automatic Answering Phone Calls When the headset is on, long press the intercom button and volume + –...
Page 14: Voice Command
Voice Command Short press the function button once Automatically switch on voice command function When your M1-S or M1 is paired up with your cellphone, when both devices are on, short press the function button once, it will automatically switch on the voice command function. *Cellphone must be equipped with voice command function...
Page 15: Music Selection
Music Selection Short press volume + twice Play music When cellphone is paired up with M1-S or M1, when both devices are on, short press volume + twice to play music. Pause When playing music, short press volume + twice to pause Long press volume + Previous for 2 seconds...
Page 16: Memory Clearance / Headset Reset
Memory Clearance / Headset Reset Memory Clearance Long press the function button and volume + for more than 5 seconds When the headset is on, long press the function button and volume + for more than 5 seconds. The function button will ﬂash red and blue light, meaning deleting all the pairing memory.
Page 17: Aux 2.5Mm To 3.5Mm Cable / Radio
AUX 2.5mm to 3.5mm cable / Radio Use AUX cable Speed detector GPS directions Music player If the device is equipped with 3.5mm port, M1 headset will be able to receive signal with AUX cable, and the sound can be heard through speaker.
Page 18: Operating Scenario
Operating Scenario 1:One person use, pair to cellphone + bluetooth gps device + bluetooth speed dectector (GARMIN) (cellphone) *After M1-S or M1 is paired with gps, if you don't switch off the GPS's bluetooth, it will interfere when pairing to the speed detector. We recommend to switch gps bluetooth off, after pairing up with the detector, switch the (bluetooth speed...
Page 19: Operating Scenario
Operating scenario 2:Two person intercom, and pairing to cellphone + bluetooth gps + speed detector or radio Rider cellphone Rider Headset Passenger Headset Rider GPS Rider Speed Detector Pairing procedure: Step 1: Switch the rider’ headset to active searching mode and the passenger’s headset to passive pairing mode.
Page 20 Step 3: Keep the rider’s headset in passive pairing mode. Use Bluetooth GPS to search for riders’ headset and pair it up. Rider Headset Rider GPS Step 4: Connect speed detector or radio to M1-S or M1 with 2.5mm to 3.5mm aux cable. All audio integration is complete. Rider Headset Rider Speed Detector...
Page 21 Operating Scenario 3:Two man intercom, rider using cellphone + bluetooth gps, passenger using bluetooth speed detector Rider Headset Passenger Headset Rider GPS Rider Cellphone Passenger Speed Detector Pairing Procedure Step 1: Switch the rider’s headset to active searching mode, and switch the passenger’s headset to passive pairing mode. When red and blue light stop ﬂashing, pairing is complete.
Page 22 Step 2. Set the rider's rider headset to passive pairing mode, use your cellphone to search for the rider's headset to complete pair up Rider Headset Rider Cellphone Step 3: Set the rider’s headset to passive pairing mode, and use Bluetooth GPS to search for the riders’...
Page 23 Multiple Intercom1 Multiple intercom pairing procedure Step 1: Switch on both A and B units. Long press unit A intercom button for active searching mode. Long press unit B function button for passive pairing mode. When the red and blue light is off, pairing is complete. Active Searching Mode Passive Pairing Mode (Slow Flash)
Page 24 Step 3: Long press unit C intercom button for active searching mode. Long press unit D function button for passive pairing mode. When red and blue light is off, pairing is complete. Active Searching Mode Passive Pairing Mode (Slow Flash) (Fast flash) Four units pairing complete.
Page 25 Step 6: Switch on B unit, press B unit intercom button to connect to C and D unit Step 7: Switch on A unit, press A unit intercom button to connect to B, C and D unit. After all four units are reconnected, switch on the original connected bluetooth devices.
Page 26: Multiple Intercom 2
Multiple Intercom 2 Multiple intercom pairing procedure Step 1: Switch on both A and B units. Long press unit A intercom button for active searching mode. Long press unit B function button for passive pairing mode. When the red and blue light is off, pairing is complete.
Page 27 Step 3: Long press unit C intercom button for active searching mode. Long press unit D function button for passive pairing mode. When red and blue light is off, pairing is complete. Active Searching Mode Passive Pairing Mode (Slow Flash) (Fast flash) Four units pairing complete.
Page 28 Step 6: Double press unit B intercom button, enabling unit A, B, and C to intercom. Unit A, B, and C ﬂash blue light slowly. Double press Step 7: Double press unit C intercom button, enabling unit A, B, C, and D to intercom. Unit A, B, C, and D ﬂash blue light slowly. Double press After the intercom pairing is complete, turn on the Bluetooth on other devices (Cellphone, GPS directions, Speed detector).
Page 29: Connect To Other Brand Headset
Connect to Other Brand Headset Connect to Other Brand Headset Long press for 5 seconds Step 1: Long press M1 intercom button for 5 seconds, entering active searching mode Step 2: Enter passive pairing mode on other brand headset Step 3: After completing pairing, the function button and intercom button will ﬂash blue light slowly, meaning pairing complete and that intercom is on.
Page 30: Upgrade Software
Upgrade Software Step 1: Go to Dimton ofﬁcial website, download the software that you want. (Because the software is an executable ﬁle, anti-virus software and ﬁrewall will misjudge the software. Please turn off the anti-virus software and ﬁrewall when you start to download until you ﬁnish upgrading.)
Page 31 Press the function button and volume + for more than 5 seconds Step 5: After you ﬁnish upgrading, you can unplug the USB charger cable. When the headset is off, long press the function button and volume + for more than 5 seconds, to do memory clearance.
Page 33: Content In Package
Content In Package 2.5mm to 3.5mm USB power and data aux in X1 cable X1 (Micro USB type) Manual X1 Brand new anti-noise microphone and speaker set X1 Round velcro, Square velcro Round eva rubber X2 big(loops) X2 (loops) X1 Helmet Bracket x 1 Sticker of bracket X1 Metal Clip x 1...
Page 34: Speaker Installation
Speaker Installation Upper View From Top Of Helmet The Longer wire with The shorter wire plug is the RIGHT side is the LEFT side speaker. speaker. *According to European safety regulations, one side of speaker is removable, thus please make sure both side of speaker are all pluged in correct position.
Page 35 Fit the speaker according to the ear pocket shape so the square plug of the speakers won’t pop out Please make sure the speakers are in the center of the ear to receive the best sound.
Page 36: Microphone Installation
Microphone Installation Remove the helmet lining,slightly hold the microphone by lining and adjust the microphone to the center tight in front of your lips. Square velcro (loops) X1 The newly developed ﬂexible anti-noise microphone housing equipped Cardioid microphone. It will remove all ambient noise and echo of other units.
Page 37 Microphone in correct Microphone away from correct position position, affecting voice receiving The distance between microphone and lips has to be less than 1cm, the closer to lips the better quality. After the microphone is ﬁxed, stick long square velcro in between lining, put the microphone in position, and then fasten the lining.
Page 38: M1/M1-S (3M Dual Lock)
M1/M1-S (3M Dual Lock) M1-S bluetooth headsets are mounted on helmet surfaces by Dual Lock , please follow instructions in order to choose the right surface for the device. Previous simulation is needed before sticking the velcro on the surface. If you are going to connect to another device, please stick the device higher in order not to press connectors while you put the helmet on ﬂat surface.
Page 39 Before placing the device on helmet surface, you can press one side of the device to see if its raising on the other side, if so, The area is not ﬂat enough, this means the device won't be able to stick ﬁrmly.
Page 40 After the spot is conﬁrmed, clean the helmet surface to make sure the glue is effective to its utmost. Stick 3MTM Dual LockTM on the chosen spot. Wait for 30 seconds for ﬁrm sticking.
Page 41 Plug microphone set cable into the device Hide extra wires into helmet lining Install device on 3M Dual Lock ,make sure there is no gap or space, plug the microphone connectin cable into the device. Hide extra wires in the helmet lining.
Page 42: Evo Version-Bracket Installation
EVO version-Bracket Installation EVO-Bluetooth headset on the back Helmet Bracket There is a chute design on the back side of headset. Glue the bracket to helmet surface. Please select a ﬂat surface to glue. Previous simulation is needed before sticking the velcro on the surface.
Page 43 ＳＴＥＰ Back side of bracket 3M tape Before placing the device on the helmet surface, you can press one side of the device to see if it is raising on the other side. If so, the area is not ﬂat enough. This means the device won’t be able to stick ﬁrmly.
Page 44 ＳＴＥＰ Plug microphone set cable into the device Hide extra wires into helmet lining Install device on Helmet Bracket, plug the microphone connection cable into the device. Hide extra wires into helmet lining.
Page 45 M1 EVO/M1-S EVO (Helmet Bracket with Metal Clip) Installing metal clip is not necessary, depending on personal need. Step Install metal clip Install metal clip on the bracket. Please make sure the direction of the metal clip. Once installed, the metal clip can not be dismantled.
Page 46 Step Install the bracket on the helmet Hold the Helmet Bracket inside the helmet When you use metal clip, please disassemble the lining of the helmet ﬁrst, then pull the metal clip, let the metal clip slide into the gap between the helmet and lining.
Page 47 Step Install the headset to the bracket Press to release If you need to detach the headset, please press the bracket. Please make sure the headset is off from the track before you take it out.
Page 48 Dimton social networking service...
