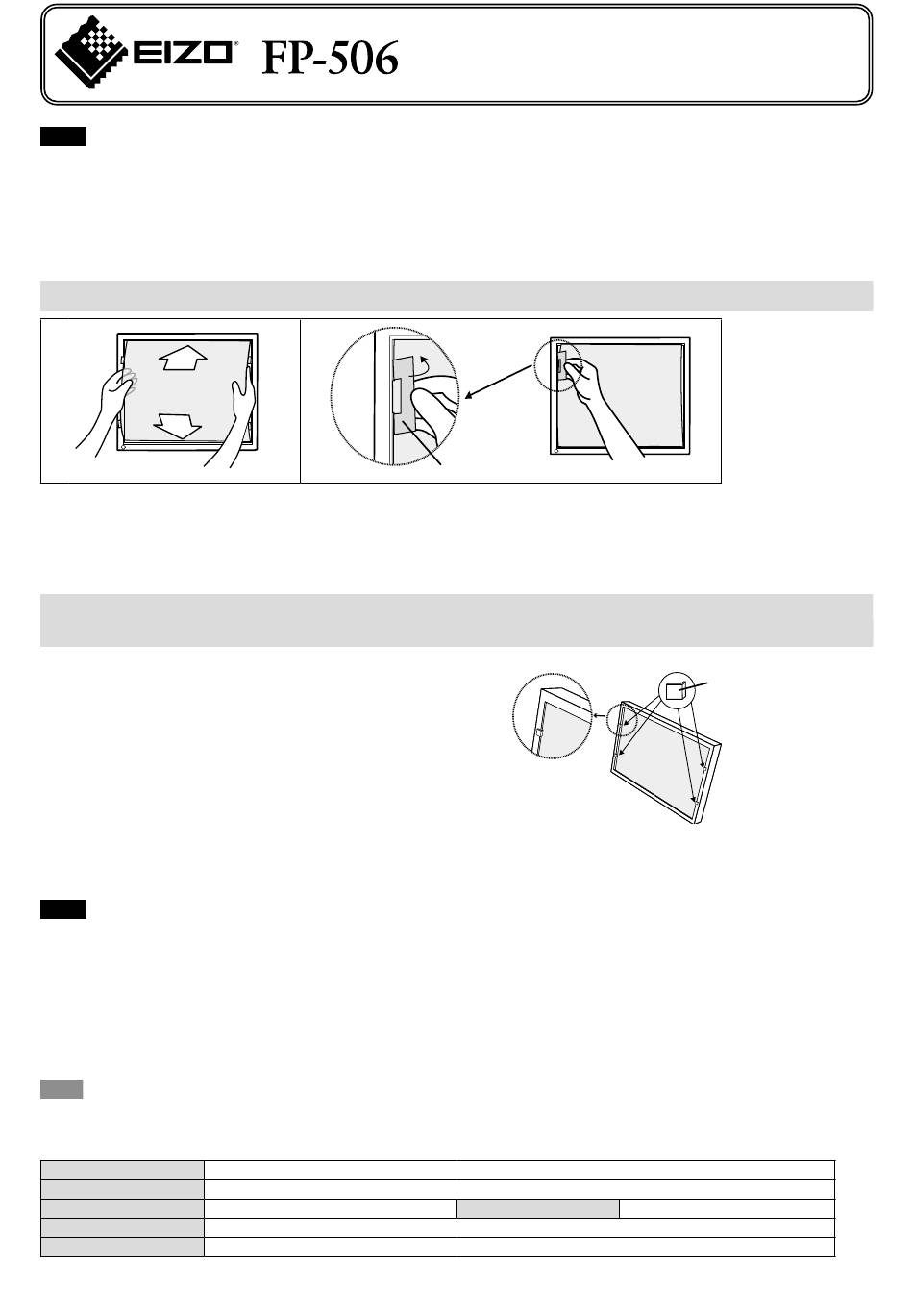

Eizo FP-506 User Manual

Note Note
• Please be careful not to scratch the LCD panel or the cabinet with the panel protector during installation. Also please do not
remove the panel protector often. It may scratch or result in damage to the LCD panel.
• The panel protector has an anti-glare treatment side and a glossy side. Use preferable side.
• When using LCD monitor with optional panel protector, it is preferable to avoid using downwards. In this condition, the panel
protector might become bend or slip out from the monitor.

Installation

Before installation, please remove dust and stains from the LCD panel.
1.
(2)
(1)
1. Set the panel protector into the grooves of the panel frame; the lower first (1), then the upper (2).
2. With the enclosed tool (Lever) set the tabs of the panel protector into the side grooves (4 tabs).
Put the lever on the tabs of the panel protector and move it toward the LCD panel to install. Position the protector into the
LCD panel tightly without leaving an opening.
For the recommendation, please use the stoppers to prevent the panel protector from bending or
slipping out from the monitor.
Before installation the stoppers, please remove dust and stains from the cabinet of the monitor. Follow
these steps to install the stoppers.
1. Remove the protection paper from the stoppers.
2. Install the stoppers on the cabinet of the monitor.

Removing

Release the stoppers from the cabinet. Put the lever on the tabs of panel protector and move it toward the
cabinet to remove.

Cleaning

Note Note
• Please be sure to keep the panel protector immobilized while cleaning it. Otherwise it may scratch the surface of the LCD
panel. To hold the panel protector by hand, use a soft cloth to avoid dust or finger prints.
• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel,
and also quality deterioration of the image.
• Never use any solvents or chemicals, such as thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or
panel.
If necessary, the stains on the cabinet and panel surface can be removed by moistening part of a soft cloth
with water.
Tips
• The optional ScreenCleaner is recommended for cleaning the cabinet and panel surface.

Specification

Surface treatment Anti-glare side: anti-glare hard coating / Glossy side: hard coating
Coating strength 2H
Reflectivity Less than 6.8 %
Dimension/ Weight 341.2 mm (W) × 273.5 mm (H) × 0.8 mm (D) / approx. 95 g
Accessories Lever (for Panel Protector) x 1, Stoppers x 4, User's Manual
User's Manual
Panel Protector for EIZO 43 cm (17.0 inch) class LCD Monitors
2.
Lever
Light transmission
Stopper
More than 90 %
