Installer: Leave this manual with the proud new owner

Also be sure to check the grill box completely for ALL parts

including the rotisserie spit rod (if applicable)

Renaissance Cooking Systems

Owner's Manual

For Outdoor Use Only

America's Best Value in Outdoor Kitchen Equipment

Installation, Operation, Maintenance

Instructions & Parts List

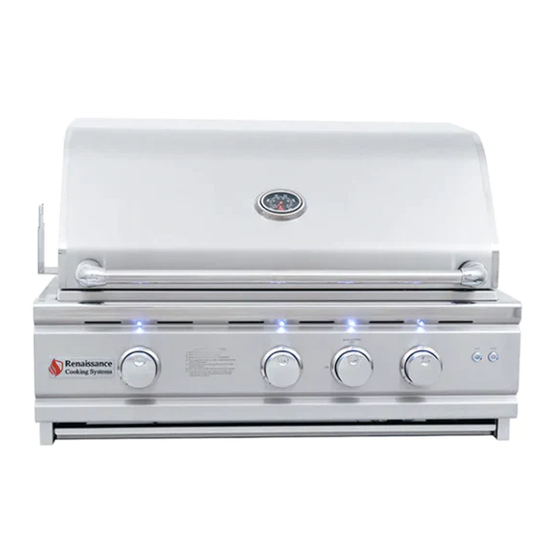

Models:

ARG30, ARG36, ARG42

These grills are tested and certified to the ANSI-Z21.58/CSA 1.6.standards.

This owner's manual was updated February 16, 2022

For the latest news, recipes and cooking tips for your new

Renaissance Cooking Systems grill, check out www.RCSGasGrills.com

CALIFORNIA PROPOSITION 65 WARNING

The burning of gas cooking fuel generates some by-products which are on the

list of substances which are known by the State of California to cause cancer

or reproductive harm. California law requires businesses to warn customers of

potential exposure to such substances. To minimize exposure to these

substances, always operate the unit according to the use and care manual,

ensuring you provide good ventilation when cooking with gas.

Table of Contents

Troubleshooting

Need help?

Do you have a question about the ARG30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Renaissance Cooking Systems ARG30

Page 1 This owner’s manual was updated February 16, 2022 For the latest news, recipes and cooking tips for your new Renaissance Cooking Systems grill, check out www.RCSGasGrills.com CALIFORNIA PROPOSITION 65 WARNING The burning of gas cooking fuel generates some by-products which are on the list of substances which are known by the State of California to cause cancer or reproductive harm.
Page 2: Table Of Contents
Contents Page For Your Safety Safety Rules First Time Operation Gas Connections Gas Barbecue Specifications LP Tank Requirement Clearance to Combustibles Installation Location/Cut Outs 12-15 Gas Connections Electrical/Wiring Diagram 16-17 Burner Adjustments 18-20 Lighting Instructions 20-21 Operation Cleaning and Maintenance Gas Conversion /Trouble Shooting 23-25 Troubleshooting...
Page 3: For Your Safety
Safety and Installation Instructions GRILL INSTALLATION This gas grill must be installed in accordance with all local codes. If installation is planned in an area with no local codes, the gas grill must be installed in accordance with the National Fuel Gas Code ANSI Z223.1 and storage and handling of liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural gas and propane installation code.
Page 4 FOR YOUR SAFETY 1. Do Not store or use gasoline, caustic or other flammable vapors and liquids in the vicinity of this or any other appliance. 2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance..
Page 5 Model/Part Number RWGM - ARG30 RWGL - ARG36, ARG42 BEFORE...
Page 6 Adequate Ventilation: Ensure there is adequate ventilation for both the barbecue, cylinder and all appliances located in this cabinet. Adequate ventilation is required for proper combustion and to prevent gas build up. Kitchen vents (RVNT1) are required every 4 feet to help ventilate and prevent dangerous gas build up, remove excess heat, add air to help with air/fuel mix for the grills and allows moisture/ condensation to evaporate.
Page 8: Safety Rules
Safety Rules • It is important to follow these rules to avoid fire hazard, property damage or bodily injury from improper installation or usage of the grill. For safety, READ all rules carefully and check local codes. • It is prohibited to install the grill in recreational vehicles/mobile homes, trailers, boats, etc. The grill is for outdoor installation and use only.
Page 9: First Time Operation
First Time Operation Your RCS Appliance comes per-assembled and requires very little setup. We do however; recommend the use of professional help during the installation of your unit as improper installation may affect your warranty. Remove the unit from the box along with all accessories and check that no damage has occurred to the unit or any parts.
Page 10: Gas Connections
Gas Connections Check gas type – use only the type of gas indicated in the rating plate. -The rating label is located on the left or right hand outside of the unit. RATING PLATE LOCATION DO NOT connect high pressure gas to this grill. This grill uses low pressure 1/2" psi to operate.
Page 11: Gas Barbecue Specifications
GAS BARBECUE SPECIFICATIONS BURNER INPUT RATING Total BTU’s Grill Model Main Burners 25000 ARG30 50000 ARG36 25000 75000 ARG42 25000 75000 Natural Gas Connection: Appliance pressure 4” W.C. Inlet pressure 5” – 14” W.C. Check with your local gas utility company or with local codes before installing gas lines.
Page 12: Lp Tank Requirement
To connect, insert the regulator inlet into the tank valve and turn the black coupler clockwise until the coupler tightens up. DO NOT OVER TIGHTEN THE COUPLER. After completion of assembly, make sure all appliance control valves are OFF then turn the propane tank supply valve on and then turn the control valves on the grill to the ‘HI/IGN’...
Page 13: Clearance To Combustibles
Installation Location for All Models Choose a location where the flow of air on the front or rear of the grill is not obstructed. Due to high temperatures, place the grill out of traffic and keep away from clothing, furniture, or any combustible materials.
Page 14 Model/Part Number RWGL - ARG36,ARG42 RWGM - ARG30 BEFORE AFTER Built-in Installation For non-combustible cabinet enclosure installation only. Follow the cut-out dimensions as shown. ALL outdoor kitchen cabinets MUST include ventilation. There must be 12 square inches of opening for each (running) 4 feet of counter top. See Item # RVNT1 for approved vents.
Page 15 “B” Depth Model “C” Height “A” Width ARG30 23 1/4" 28 5/8" 10 3/16" ARG36 23 1/4" 34 5/8" 10 3/16" ARG42 40 5/8" 23 1/4" 10 3/16" REAR HOOD CLEARANCE Hood Clearance Model 26 1/4” ARG30 26 1/4” ”...
Page 16 Exhaust Hood Requirements When using an exhaust hood, the area above the cooking surface of the grill must be covered with a hood larger than the cooking area of the grill, AND with a minimum of 1200CFM (cubic feet per minute) for proper outdoor application.
Page 17: Gas Connections
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Keep any electrical supply cord and fuel supply hose away from any heated surface. HALOGEN LIGHT: The ARG30, ARG36 & ARG42 are provided with a low- wattage transformer.
Page 18: Electrical/Wiring Diagram
ARG Electrical Wiring Diagram...
Page 19 Troubleshooting-If you have any issues, please look for solutions here before calling us our your local dealer. Also check RCSGasGrills.com for videos with solutions as well.
Page 20: Burner Adjustments
Leak Testing NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS. All gas piping and connections must be tested for leaks after installation or service. All leaks must be corrected immediately. Remember-before exchanging an empty bottle for a new one, make sure all control valves are in the “off”...
Page 21: Lighting Instructions
If flame is lifting, remove the front panel to access the burner front (air shutter) then turn the air shutter clockwise reducing this intake. The screw should be loosened before turning the air shutter. If the flame has more yellow than blue, the air shutter should be turned counter clockwise allowing more air in.
Page 22: Operation
Optional Infrared Burner 1. To install the optional infrared burner, begin by removing the far left cooking grid, flame tamer and zone divider, if applicable. 2. Remove conventional burner by first removing the cotter pin or screws that hold the burner in place (unless they were removed prior to installation), located on the bottom rear of the burner and located inside the rear of the grill body.
Page 23: Cleaning And Maintenance
Cleaning and Maintenance Your grill works better and lasts longer if properly cleaned and maintained. Cleaning: Clean the grill after each use. Turn grill off before starting to clean. Protect your hand with a good mitt when cleaning the hot grill. Use a wire brush, dip in water and scrub the cooking grids to soften and loosen food spills.
Page 24: Gas Conversion /Trouble Shooting
Important Note: For Locations Near Coastal Areas and Pools #304 stainless steel materials used in the construction of your RCS grills are highly rust resistant, however, chlorine in the air from swimming pools or the salt from sea air may cause surface rust to appear and even create some pitting if left on the product.
Page 25 Fuel Conversion of Main Burners: 1- Determine the existing gas type (LP or Natural gas). The method of changing gas types is similar for natural gas or propane gas. 2- You must remove all grates and burner covers to expose the main burners in the grill. 3- On the bottom rear of each burner may be a cotter pin or screws attaching burners to the grill housing.
Page 26: Troubleshooting
Trouble Shooting: Problem and Solution Burner will not light • Check gas supply to burner by manually lighting the burners. • See electrode for visible damage, replace if damaged. Improper Burner Flame • Check burner gas inlet area for blockage •...
Page 27: Parts Diagram/Parts List
ARG30, ARG36, ARG42 Exploded View...
Page 28 ARG30, ARG36, ARG42 Parts List *Rotisserie kit not included.
Page 29: Dimensions
ARG30, ARG36, ARG42 Dimensions...
Page 30 Renaissance Cooking Systems Product Warranty RCS is proud to provide the industries most comprehensive warranty program. All American Renaissance Grills and side burners are warrantied to be free from manufacturer defects for the lifetime of the original owner. (All other components, one year).
