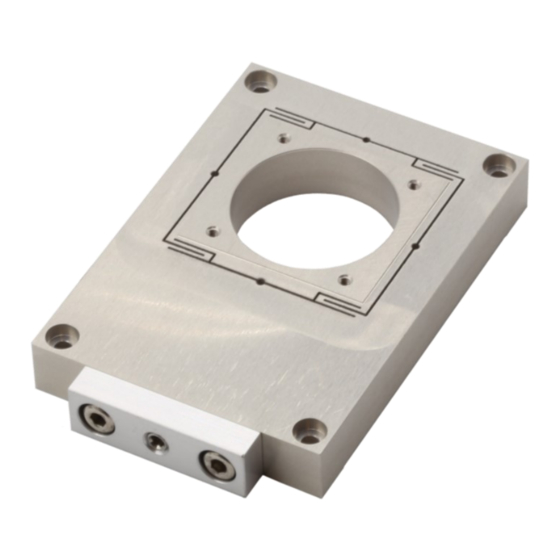

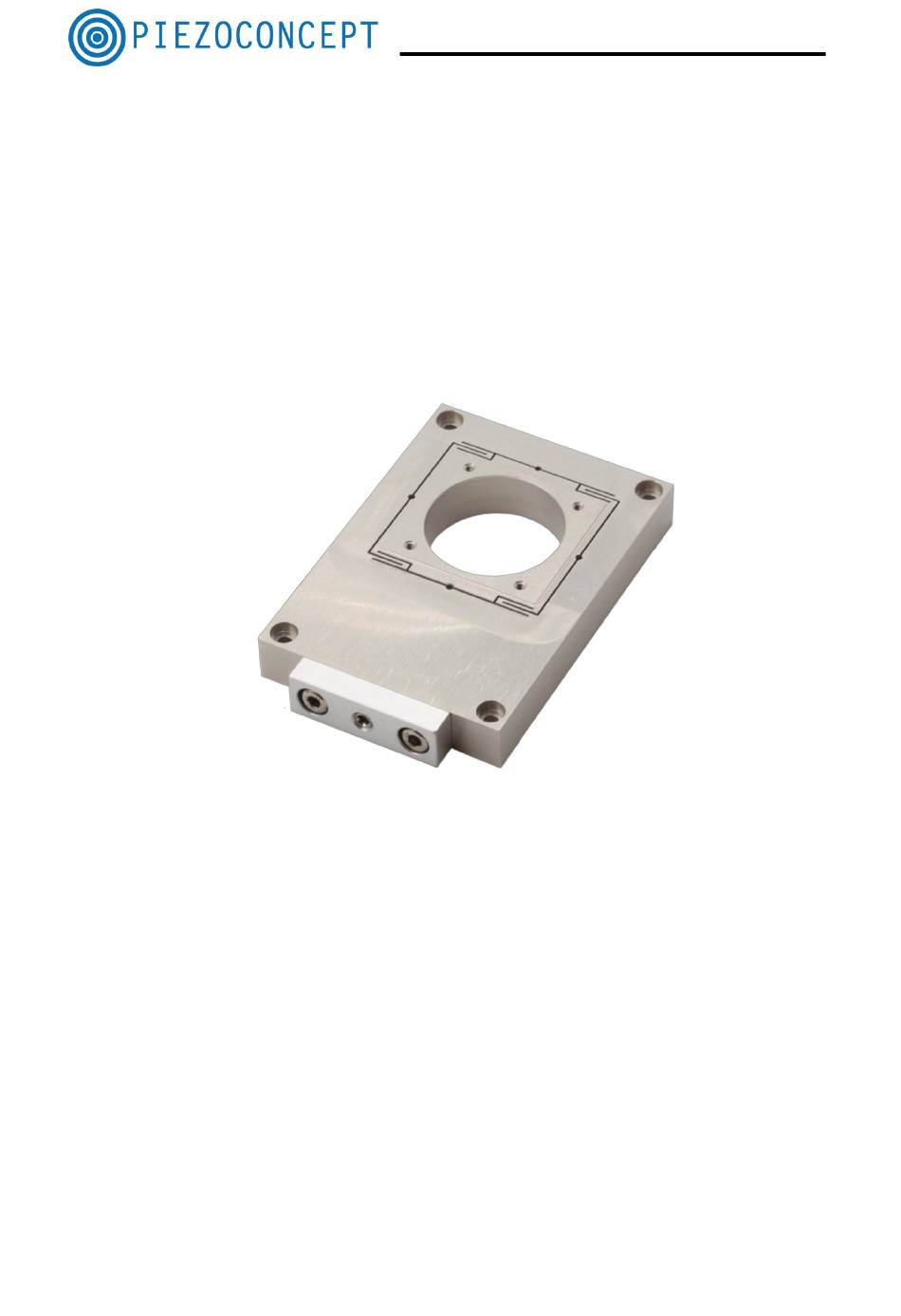

- Page 1 INSTALLATION AND OPERATION MANUAL HS1H PIEZOCONCEPT 15 Rue du Bocage 69008 LYON France...
- Page 2 Before disconnecting the DB-9 connector from the PIEZOCONCEPT controller, first set the command voltage to 0.0V, then turn the AC power to the PIEZOCONCEPT controller off, and finally wait one minute before disconnecting. The HS1H has no user serviceable parts. Only trained service personnel should perform service.
- Page 3 Unpacking the HS1H .......................... 4 Handling the HS1H..........................4 HS1H..............................5 INSTALLATION ............................5 Installing a single axis HS1H unit..................... 5 Installing a two axis HS1H unit ......................6 GROUND LOOPS ............................6 Prevention and identification of ground loops ................. 7 OPERATING THE NANOPOSITIONING STAGE ..................
- Page 4 • Do not lift by the cable. • The surface to which the HS1H is mounted to should be flat and clean. Likewise, the bottom of the HS1H should be free of particles and dust before mounting. • Do not immerse in any liquid. If the HS1H requires cleaning slightly dampen a lint free cloth with iso-propanol or ethanol and lightly wipe the surface.
- Page 5 These M2.5 holes are on a 29mm square. To attach an item to the scanning stage, use the following procedure. • Using a lint free cloth, gently wipe off the top of the HS1H to remove any particles or dust. •...
- Page 6 1. Install the first or bottom HS1H (Y-axis) using the procedures described above in Section 2.1. 2. Using a lint free cloth, gently wipe off the top of the installed HS1H and the bottom of the adapter plate to remove any particles or dust.
- Page 7 PIEZOCONCEPT's controller, which in turn is connected to the ground of the AC power cord. The PIEZOCONCEPT's controller enclosure is also at ground potential. Attaching a grounding wire between any of the PIEZOCONCEPT's controller enclosure screws and the mounting surface may short-circuit the ground loop.
- Page 8 “PIEZOCONCEPT CONTROLLER OPERATION MANUAL”. 4.2 Care during operation The HS1H is a high precision scientific instrument and should be handled with care during operation. Failure to do so may result in permanent damage. During operation ensure that there are no physical constraints on the moving stage or anything fixtured to the moving stage.
