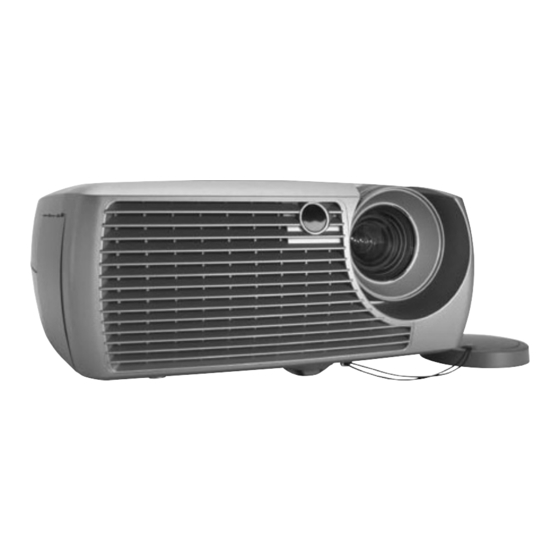

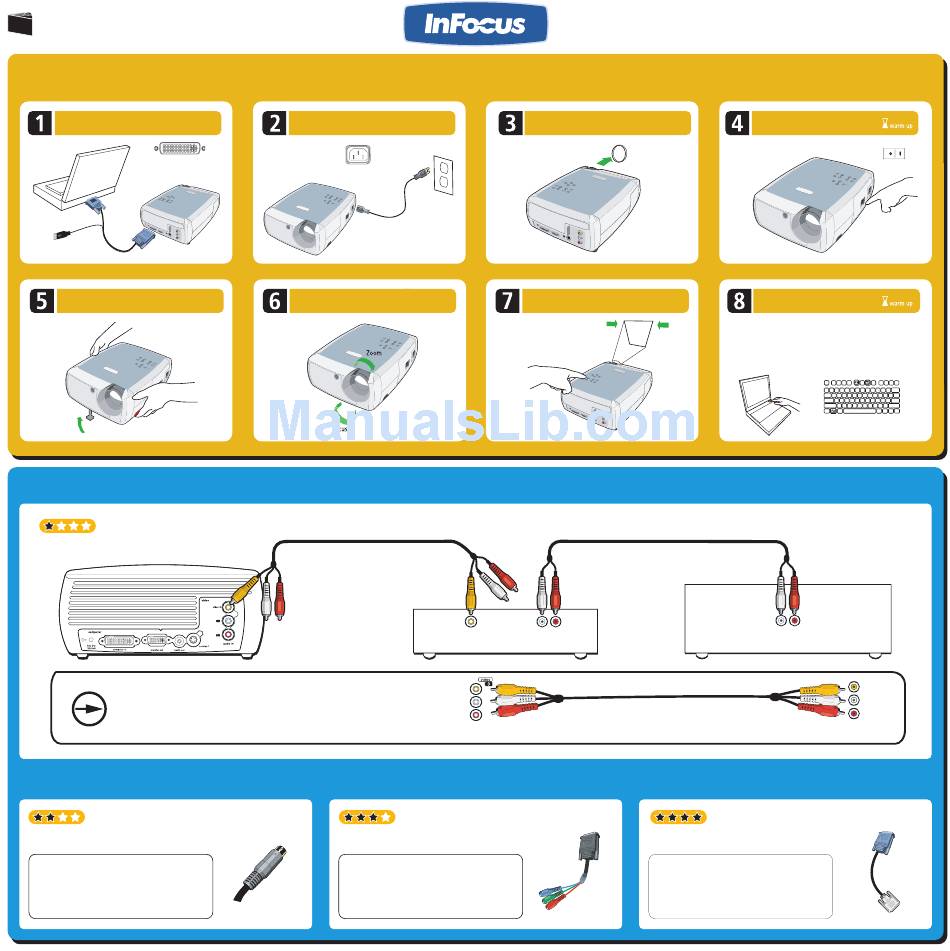

InFocus X2 Quick Setup

See the User's Guide for detailed setup information and troubleshooting.
Please read the Safety Instructions before setting up the projector.

Projector and Computer Quick Set Up

Connect computer cable
Adjust height

Optional Audio/Video Connections

Good Connection

Using the Projector's Speaker
If you can't connect to a home theatre or
receiver, you can use the projector's
built-in speaker instead.
Optional Cables for Improved Video Quality available at www.infocus.com

Better Connection

S-video cable
S-video cable separates the video signal
into two parts and improves video quality
compared to composite video.
Connect power cable
Adjust zoom and focus
Included Audio/Video Cable
VIDEO OUT
DVD, Cable Box, VCR, or Game
Projector

Best Connection

Component cable
Component video cable provides a
high-bandwidth connection that separates
video colors for improved resolution and
color accuracy compared to S-Video and
composite video. Component cables can
transmit high definition (Hi-Def, HDTV signals).
Visit www.infocus.com/service for online registration, FAQ's, product specifications,
user's guides in multiple languages, an interactive image size calculator and more.
Remove lens cap
Adjust keystone
Stereo Audio Cable (Not Included)
L R
AUDIO OUT
Included Audio/Video Cable
Only use Projector Audio if other audio output is not available
DVI cable
DVI cable (Digital Visual Interface) provides
picture information, giving the best possible
image quality. DVI cables can transmit
high definition (Hi-Def, HDTV) signals.
X2/X3
Power on projector
Power on computer
Many laptops do not turn on their external video port when connected to a
projector. A key combo like FN + F3 or CRT/LCD key turns the external display
on/off. Locate a function key labeled CRT/LCD or a function key with a monitor
symbol on the laptop. Press FN and the labeled function key simultaneously.
Refer to your laptop's documentation to learn your laptop's key combination.
If there is still no image, restart computer
AUDIO IN
L R
Home Theatre or Receiver
Video Out
Audio Out
DVD, Cable Box, VCR,
or Game System

Premium Connection
