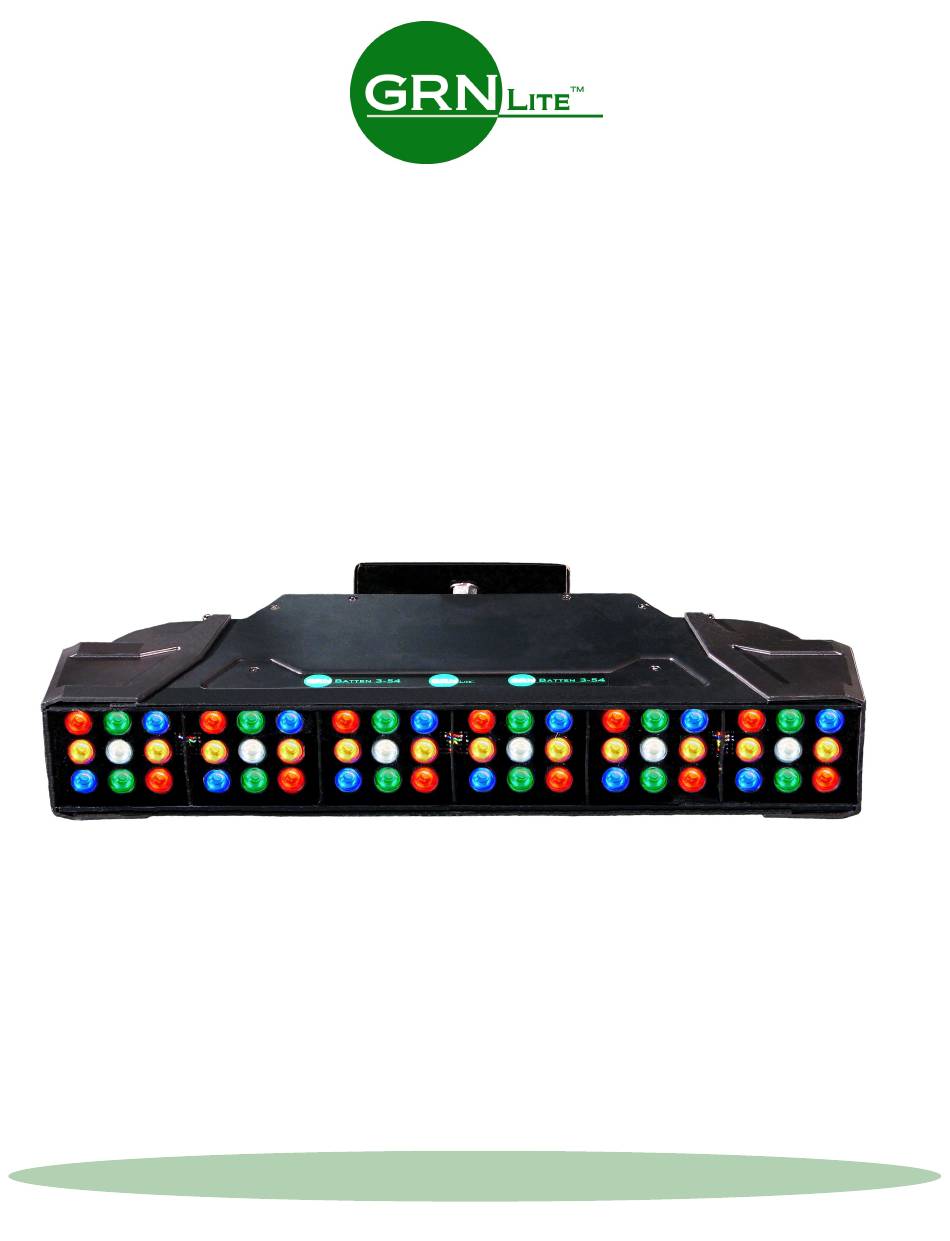

- Page 1 GRN Batten 3-54 User Manual v5.4 GRNlite.com GRN Batten 3-54 v5.4...
-
Page 2: Table Of Contents
Table of Contents Warnings ......................1 About the Batten 3-54 ................2 Power input and Voltage adjustment .............. 3 Data input ....................... 4 Fixture Placement, Hanging & Maintenance ........... 5 Fixture Menu Options ..................6 Cell Configuration for DMX Channel Modes ............ 7 DMX Channel Mode Break down ............... -
Page 3: Warnings
The fixture must have a minimum clearance of six inches from the surface of the fixture. Never attempt to wrap the fixture with any covering, or attempt any cosmetic modification of the fixture. The fixture has no user serviceable parts. GRNlite.com Page 1 GRN Batten 3-54 v5.4... -
Page 4: Grn
Batten 3-54 Batten 3-54 is a high performance LED fixture that gives a multitude of advantages unique to LED technology. The RGBAW LEDs give a much wider color gamut than the usual RGB systems, and with dramatically increased power efficiency over older technologies like Quartz lamps. The LED fixtures eliminate the need for dimmers, gels, and large mains power feeds. -
Page 5: Power Input And Voltage Adjustment
Power Input Batten 3-54 uses a Neutrik PowerCon inlet rated at 20A, 250V as standard. The Fixture will operate at 120VAC or 220VAC See below for voltage adjustment instructions. NOTE: Disconnect power before adjusting the input voltage Fuse – 4A, 250V Fuse must be replaced with the proper type and rating... -
Page 6: Data Input
Data (+) Adapting a 5-pin XLR data feed to 3-pin XLR is as follows: 5-pin XLR 3-pin XLR Pin 1 Pin 1 Pin 2 Pin 2 Pin 3 Pin 3 Pin 4 Pin 5 GRNlite.com Page 4 GRN Batten 3-54 v5.4... -
Page 7: Fixture Placement, Hanging & Maintenance
NOTE: All repairs of electronic or structural issues should be done by qualified personnel. GRNlite.com Page 5 GRN Batten 3-54 v5.4... -
Page 8: Fixture Menu Options
Addr: 001-512, channel modes 5,9,14,15,30 NOTE: Be aware that DMX is only active in “DMX Channels” mode (when the DMX start address is displayed) and DMX is not active in any other mode of operation. GRNlite.com Page 6 GRN Batten 3-54 v5.4... -
Page 9: Cell Configuration For Dmx Channel Modes
Batten 3-54 cell configuration Batten 3-54 has 6 cells that can be addressed individually or in various groups. Cell 4 Cell 2 Cell 1 Cell 6 Cell 5 Cell 3 GRNlite.com Page 7 GRN Batten 3-54 v5.4... -
Page 10: Dmx Channel Mode Break Down
All cells Chase Speed Chase Speed—0-255 (0=Slowest, 255=Fastest) NOTE: Be aware that while running the internal chases & Macros the fixture may of may not be affected by intensity control from the DMX Console. GRNlite.com Page 8 GRN Batten 3-54 v5.4... - Page 11 Fade Chases Sets a preprogrammed chase with fades NOTE: Be aware that while running the internal chases & Macros the fixture may of may not be affected by intensity control from the DMX Console. GRNlite.com Page 9 GRN Batten 3-54 v5.4...
- Page 12 Cells 3,4 Amber 0-255 Proportional Cells 3,4 White 0-255 Proportional Cells 5,6 0-255 Proportional Cells 5,6 Green 0-255 Proportional Cells 5,6 Blue 0-255 Proportional Cells 5,6 Amber 0-255 Proportional Cells 5,6 White 0-255 Proportional GRNlite.com Page 10 GRN Batten 3-54 v5.4...
- Page 13 Cell 5 Amber 0-255 Proportional Cell 5 White 0-255 Proportional Cell 6 0-255 Proportional Cell 6 Green 0-255 Proportional Cell 6 Blue 0-255 Proportional Cell 6 Amber 0-255 Proportional Cell 6 White 0-255 Proportional GRNlite.com Page 11 GRN Batten 3-54 v5.4...
-
Page 14: Technical Specifications
5750 Lux @ 1.5 Meters (All Colors on full) Beam Spread 20° 3 Watt RGBAW LEDs: 12 – Red, 12—Green, 12 -Blue, 12—Amber, 6 – White DMX Channels User Selectable, 5,9,14,15 or 30 3 - Pin XLR DMX Input / Output GRNlite.com Page 12 GRN Batten 3-54 v5.4...
