Summary of Contents for Senzit HD Gen 2

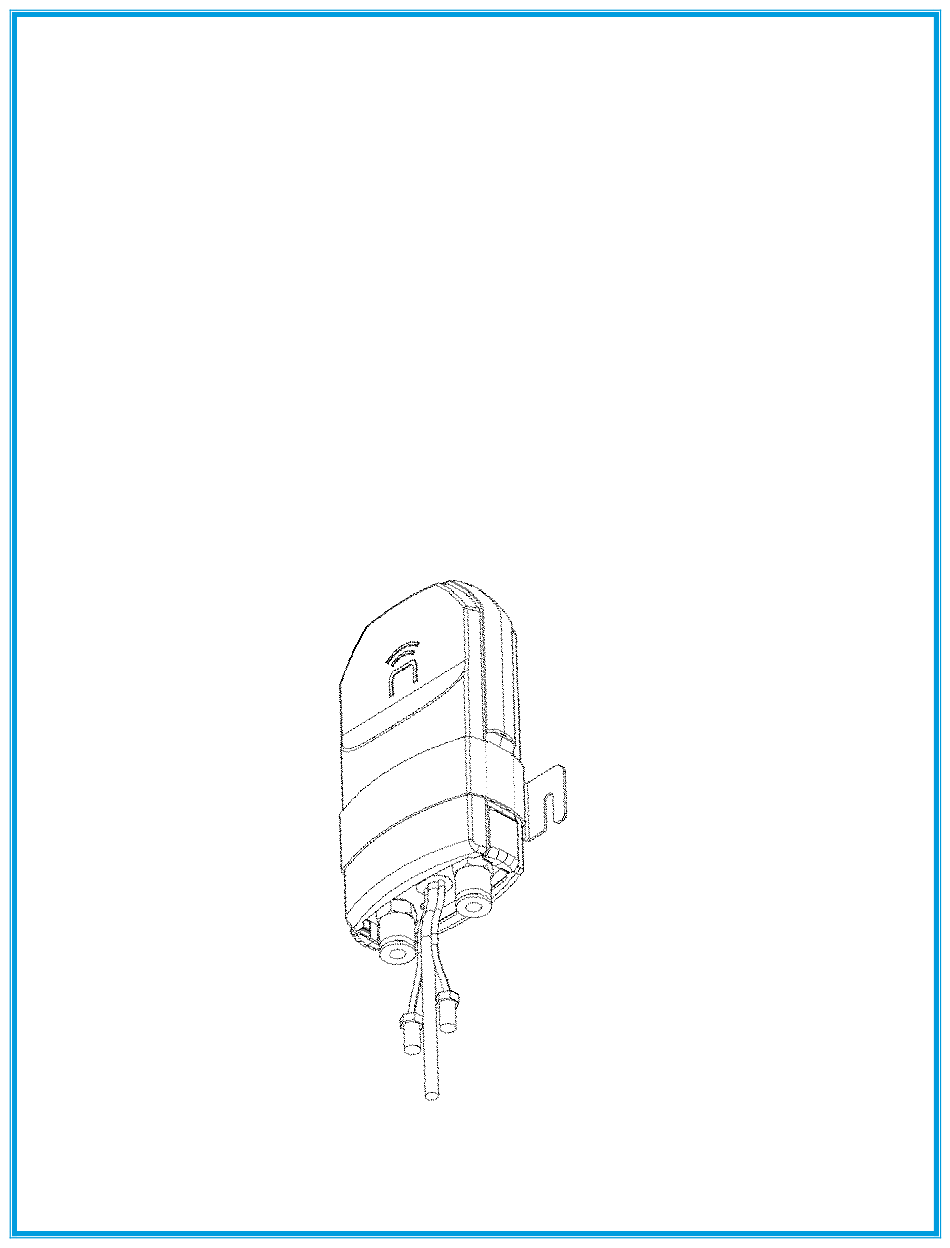

- Page 1 Senzit HD Gen 2 Model Name / Number : HDA200 Installation Instructions...
- Page 2 Certifications • FCC Statement- FCC Part 15 Subpart B Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.
- Page 3 • Radiation Exposure Limit Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Innovation, Science, and Economic Development Canada (ISED) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the ISED RF Exposure limits under mobile exposure conditions (antennas are greater than 20cm from a person's body).
- Page 4 Senzit hardware comes with a standard 1-year i2m warranty. Before Installing Device • Download Senzit-HD App from App Store or Google Play Store. Tap “Add Device” and scan QR code on the device or device packaging. Then follow the in-app prompts.
- Page 5 Devices and Device Parts LED Indicator Lights Mounting Bracket Air System Ambient Pressure Pressure Port Port Cellular/GPS Antenna Extension CAN Bus & DC Connectors Power Cable Front Side Back...
- Page 6 Items Included in Package PARTS QUANTITY ITEM Senzit Monitoring Device Mounting Bracket M10 Tee Adapter M10 Male – 1/8” Female Connector M10 Male Straight Hose Quick Connector M10 Male 90° Elbow Hose Quick Connector Ring Terminal 22 to 16 AWG...
- Page 7 • Materials o Extra cable ties o Fuse tap / in-line fusible link (3-4 amp) o Heat shrink wire wrap o Wire harness flex tubing o Extra wire (22 to 16 AWG) o Extra butt splice connectors o Thread tape o Electrical tape o Self-tapping ¼”...
- Page 8 Locate a flat surface for mounting Senzit Monitoring Device near air filter housing. (NOTE: Senzit is designed to withstand outdoor conditions. For best performance, it should be mounted outside any metal enclosures, with a clear line of sight to the sky. External antenna is available for purchase in cases where Senzit can’t be mounted outside.)
- Page 9 Connect Senzit red power cable (BATT_V) to 12 or 24 volt continuous power source using fuse tap or splice into an existing power cable using in-line fuse. Connect Senzit yellow power cable (IGN_IN) to 12 or 24 volt ignition power source using fuse tap or splice into an existing power cable using in-line fuse.
- Page 10 5-10 minutes and then check the LED Indicator Lights again. C) Senzit will go through automatic updates the first time it is powered on from the factory. This process can take several minutes to an hour. It is suggested to allow Senzit to accumulate a few hours before checking for data.
