User Manual for Premier In-Ceiling Projection Screen

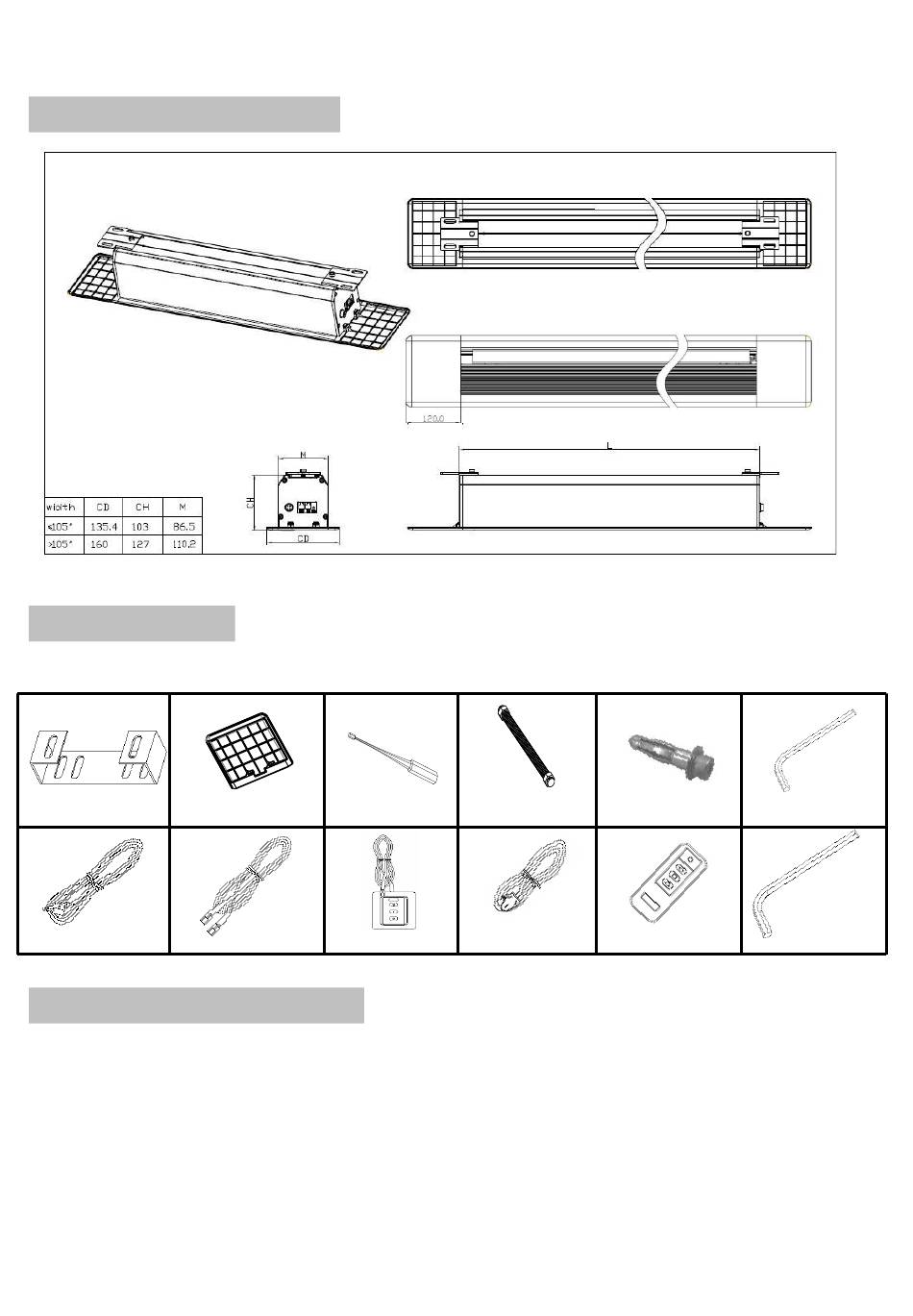

1. Product Dimensions:
2. Accessories:
B
A
Access Panel x 2
Mounting Bracket x 2
H
G
G
Trigger Cable
Central Control Cable
3. Installation Procedure:
Step 1: Measure the overall length of the product (L), prepare a false ceiling opening at size
L+190mm x（CD-25mm）. (See Fig.1)
Step 2: Loosen the locking screw and slide out the mounting plates to both end of the housing.
Make sure the mounting holes are not blocked by the housing. (See Fig.2)
Step 3: Drill 4 holes on the concrete ceiling and install the anchor bolt provided. The distance
between the anchor bolts should be L+40mm x 94mm. Then, install the mounting bracket
and anchor rods (See Fig. 3)
D
C
1m Anchor Rod x 4
S=5mm
I
J
Control Panel
Power Cord
- 1 -
E
F
Anchor Bolt x 4
K
RF Transmitter
S=5mm
S=8mm
Advertisement
Table of Contents
Summary of Contents for Retual PERMW2415ENC
- Page 1 User Manual for Premier In-Ceiling Projection Screen 1. Product Dimensions: 2. Accessories: Access Panel x 2 1m Anchor Rod x 4 Mounting Bracket x 2 S=5mm S=5mm Anchor Bolt x 4 S=8mm Trigger Cable Central Control Cable Control Panel Power Cord RF Transmitter 3.
- Page 2 Step 4: Insert the projection screen into the ceiling opening, make sure 4 anchor rods pass through the holes on mounting bracket. Install a nut onto each end of anchor rod, avoiding the screen fall down from the false ceiling. (See Fig.4) Step 5: Rotate the nuts on anchor rod in order to adjust the horizontal alignment.
- Page 3 4. Connection and Control: Power Cord Jacket 12V Trigger Central Control Manual Control Manual control panel Upper / Lower Limit Adjustment RF Control To lower the projection surface Press the “ “ button on the transmitter, and the screen will fully extend till the lower limit switch activates.
- Page 4 RF Coding & Decoding Coding 1) Press ”UP” button of the transmitter for 3S, the LED indicator blinks 3 times then lights up, keep holding the “UP” button. 2) Connect the Lift to power source. 3) Release “UP” button. 4) Press the “UP” button once, coding process complete.
- Page 5 - 5 -...
- Page 6 - 6 -...
- Page 7 - 7 -...
