- Page 1 MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Revision 2 28 December 2021 by Philip Munts Munts Technologies http://tech.munts.com MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 1 of 11...
-
Page 2: Table Of Contents
Raspberry Pi 4 Extra Serial Port................7 C Bus Controller.....................8 Pin Mapping......................8 Raspberry Pi 4 Extra I C Bus Controller..............8 Pin Mapping......................8 Additional Online Documentation................9 Schematic Diagram....................10 Revision History.....................11 Board.........................11 User Guide......................11 MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 2 of 11... -
Page 3: Introduction

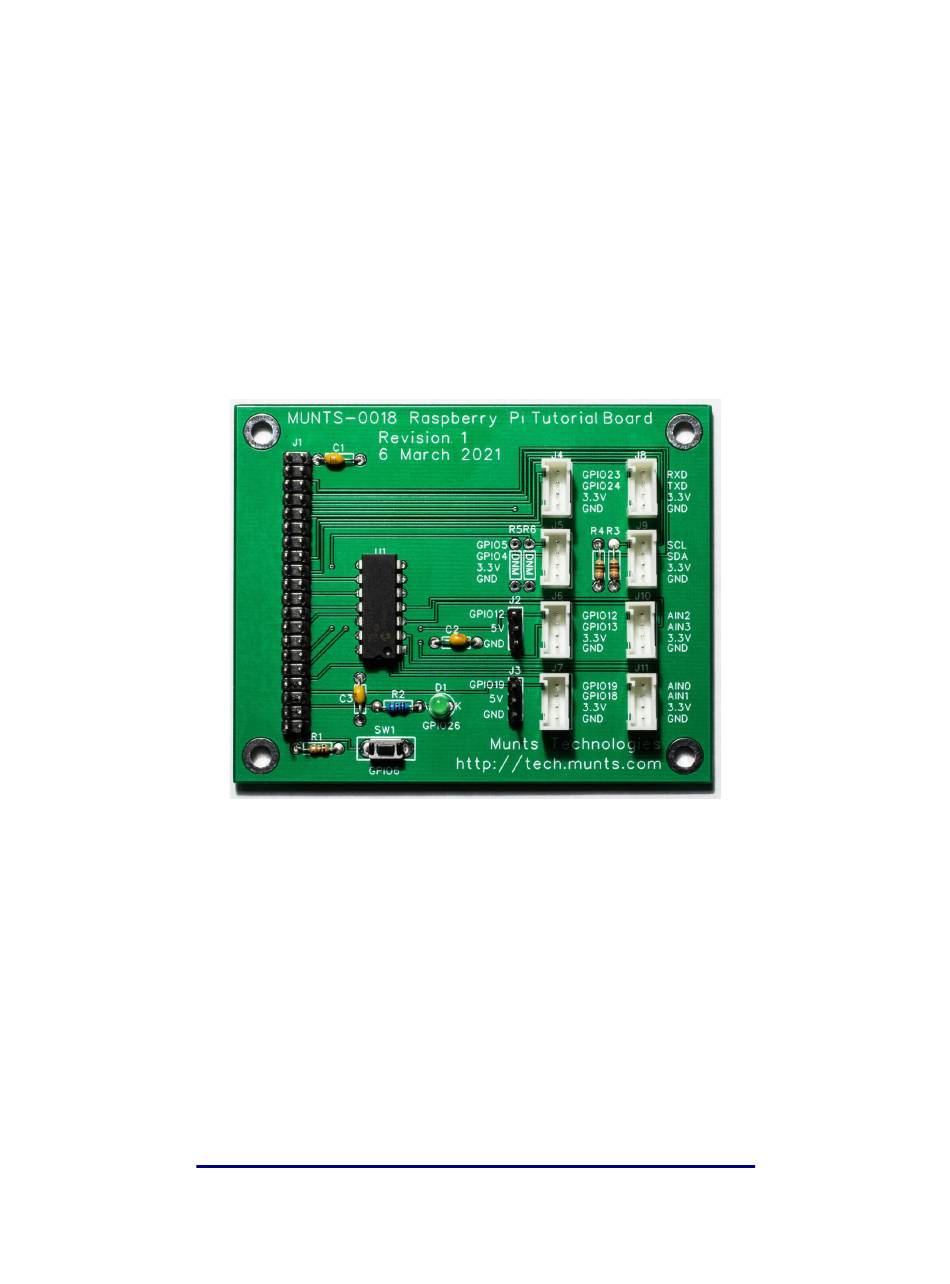

Introduction The MUNTS-0018 Raspberry Pi Tutorial I/O Board is a breakout board for the 40-pin Raspberry Pi GPIO expansion bus. It contains an on-board A/D converter, an LED, a momentary switch, two 3-pin 5V servo headers, and 8 Grove System connectors: ●... -
Page 4: Button
/boot/config.txt to enable Linux kernel support for the MCP3204: dtoverlay=anyspi,spi0-1,dev="microchip,mcp3204",speed=1000000 Pin Mapping J10 Pin 1 AIN2 /sys/bus/iio/devices/iio:device0/in_voltage2_raw J10 Pin 2 AIN3 /sys/bus/iio/devices/iio:device0/in_voltage3_raw J11 Pin 1 AIN0 /sys/bus/iio/devices/iio:device0/in_voltage0_raw J11 Pin 2 AIN1 /sys/bus/iio/devices/iio:device0/in_voltage1_raw MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 4 of 11... -
Page 5: Pulse Width Modulated Dc Motor Driver Outputs
The Raspberry Pi microcomputer supports two hardware PWM outputs: PWM0 and PWM1, each of which can be mapped to several GPIO pins. The following device tree overlay command must be appended to /boot/config.txt to configure the Raspberry Pi PWM subsystem for the MUNTS-0018 Tutorial I/O Board: dtoverlay=pwm-2chan,pin=12,func=4,pin2=19,func2=2 Pin Mapping... -
Page 6: Servo Headers
J3 cannot be used for a servo when J7 is used for a motor driver. Pin Mapping J2 Pin 1 PWM Duty Cycle PWM0 J3 Pin 1 PWM Duty Cycle PWM1 MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 6 of 11... -
Page 7: Serial Port
This maps Linux serial port device /dev/ttyAMA1 to Grove Connector J5. Note: All serial port connectors on this board provide 3.3V TTL line level signals. They are not RS-232, RS-422, or RS-423 compatible. MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 7 of 11... -
Page 8: I 2 C Bus Controller
C slave device on the bus has pullup resistors, you will not need R5 and R6. Pin Mapping J5 Pin 1 C Clock Signal SCL3 J5 Pin 2 C Data Signal SDA3 MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 8 of 11... -
Page 9: Additional Online Documentation
Cytron MD13S 13 Amp 6V-30V DC Motor Driver: https://www.cytron.io/p-13amp-6v-30v-dc-motor-driver Grove System: https://wiki.seeedstudio.com/Grove_System MCP3204 Analog to Digital Converter: https://www.microchip.com/wwwproducts/en/MCP3204 Raspberry Pi device tree overlays: https://github.com/raspberrypi/firmware/blob/master/boot/overlays/README Raspberry Pi GPIO: https://www.raspberrypi.org/documentation/usage/gpio MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 9 of 11... -
Page 10: Schematic Diagram
Schematic Diagram MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 10 of 11... -
Page 11: Revision History
Revision History Board Revision 1 6 March 2021– First revision. User Guide Revision 1 23 December 2021 – First revision. Revision 2 Fixed some minor formatting errors. MUNTS-0018 Raspberry Pi Tutorial I/O Board User Guide Page 11 of 11...
