Reyee RG-R6 User Manual

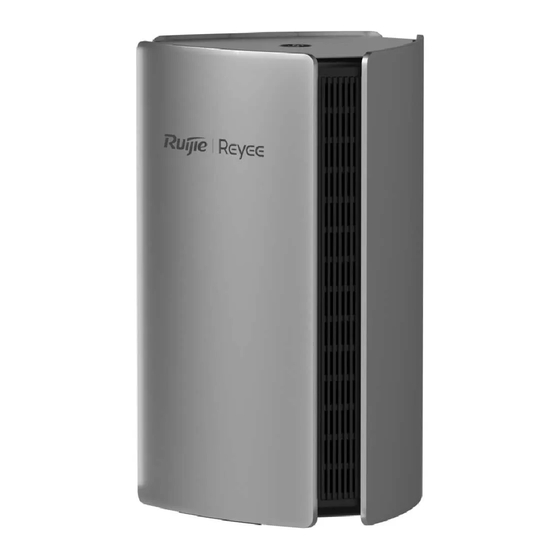

Reyee RG-R6 Mesh Router
Scan to Download Reyee Router App
Packing List
Name Quantity
Router 1
Power Adapter
1
Warranty Card 1
User Manual 1
Network Cable 1
Regulatory Compliance Manual
1
Product Appearance
❶ Reset Button ❷ Power Socket ❸ WAN Port ❹ LAN1/LAN2/LAN3
❺
Status Description
Blinking white The device is being paired.
Four bars are solid white The Mesh network signal is excellent.
Three bars are solid white The Mesh network signal is good.
Two bars are solid white The Mesh network signal is average.
One bar is solid white The Mesh network signal is poor.
Off
The Mesh network is disconnected or not set up.
2. Configure the router.
❻
The router will complete startup in 2 to 3 minutes after being powered on. Wait until the
Status Description
system status indicator turns solid on and the SSID is broadcast (default SSID: @Reyee-sXXXX).
The device is working normally and can access
Solid blue
the Internet.
Solid orange The device does not access the Internet.
The device is starting up or restoring the
factory settings.
XXXX is the last 4 digits of the MAC address on the label of router.
Scenario 1: Configure one single router to access the Internet
Access the Internet by App
①
Download the Reyee Router App
②
Create an account by one click
Login/Register
③ Tap Add Router, and follow the guide for configuration.
Add Router
Access the Internet by Web browser
①
Go to your phone settings page and choose Wi-Fi network @Reyee-
sXXXX, and the configuration page will appear automatically. Or you
can access 192.168.110.1 via browser.
XXXX is the last 4 digits of the MAC address on the label of router.
