AVADA R240 Instruction Manual

Hide thumbs

Advertisement

Table of Contents

R240 Instruction Manual
Last Updated: September 29th, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R240 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVADA R240

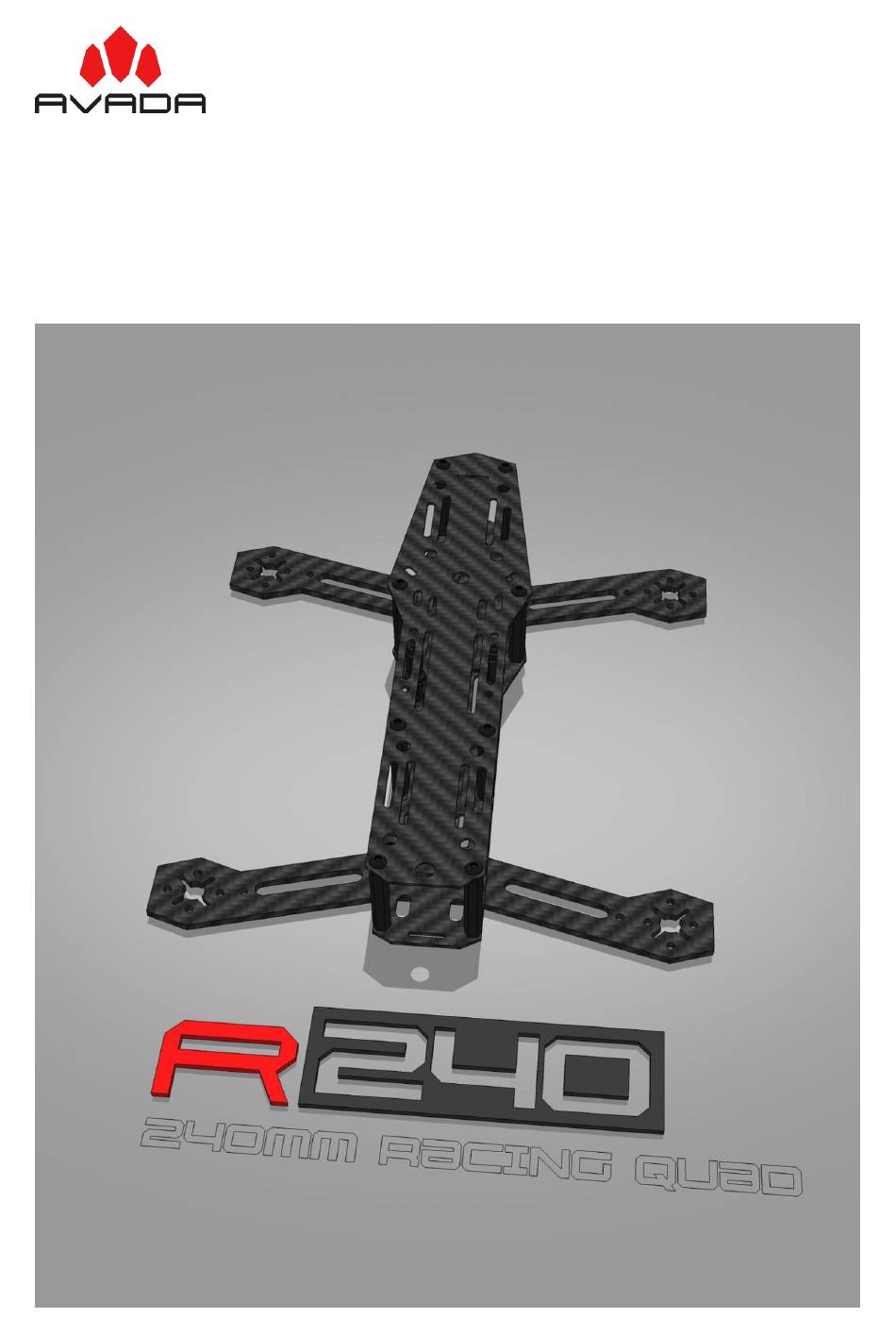

  • Page 1 R240 Instruction Manual Last Updated: September 29th, 2015...

  • Page 2: Kit Contents

     16 x M3x6mm Button Head Screws (Black) R240 #5 – HD Camera Mount Dampeners  4 x Anti-vibration Dampeners R240 #6 – Motor Screws & Spare Hardware  10 x M3x6mm Button Head Screws (Black)  1 x M3x10mm Button Head Screws (Silver) ...

  • Page 3: Specifications

    SPECIFICATIONS Airframe Weight: 100g (excluding camera mounts) Material: 3K twill weave carbon fiber Motor Spacing: 240mm diagonal / 170mm width Frame Geometry: Symmetrical PDB/FC Mounting: 36x36mm Motor Mounting: M3 16/19mm & M2 12/16mm Maximum Prop Size: 5 inch RECOMMENDED GEAR 4S High-performance Motors = 2204 2300kv Props = 5x4.5 / 5x4 / 5x4x3...

  • Page 4: Installation

    INSTALLATION 1. PREPARE THE ARMS - Insert four Silver M3x10mm Button Head Screws (R240 #1) into the Arms. 2. ATTACH THE ARMS – Insert the arm screws into the Bottom Plate and fasten with four M3x10mm Aluminium Spacers (R240 #1).
  • Page 5 3. ATTACH THE PDB/FC MOUNTING SCREWS - Insert four M3x25mm Button Head Screws (R240 #2) into the central holes of the Bottom Plate and fasten with M3x6mm Nylon Spacers (R240 #2). 4. ATTACH THE MOTORS – The arms suit motors with either M3 or M2 style bolt holes.
  • Page 6 Internal - Attach the ESCs to the Bottom Plate either side by side or inline (only suitable for small narrow ESCs). Internal ESCs will sit underneath the Mid Plates and must be less than 10mm in height. This configuration hides the ESCs together with most of the wiring for a cleaner installation.
  • Page 7 ESCs. This configuration also allows easier access to the ESCs for programming or repair. 6. CONNECT THE MOTORS & ESCS - Solder the Motors to the ESCs. 7. ATTACH THE PDB - Press the PDB onto the central mounting screws and fasten with M3 Nylon Nuts (R240 #2).
  • Page 8 9. ATTACH THE MID PLATES - Press the Mid Plates onto the central mounting screws and fasten with M3x6mm Button Head Screws (R240 #1) & M3 Nylon Nuts (R240 #2). 10. ATTACH THE FC - Press the Flight Controller onto the central screws and fasten with...
  • Page 9 It is recommended to use a coaxial extension cable when mounting the antenna. 12. ATTACH THE TOP/BOTTOM PLATE SPACERS – Align the M3x35mm Nylon Spacers (R240 #3) with the outer holes of the Bottom Plate and fasten with M3x6mm Button Head Screws (R240 #4).
  • Page 10 14. SETUP THE RADIO & FC - Setup the radio and flight controller as per the manufacturer’s instructions. 15. ATTACH THE HD CAMERA MOUNT – Insert four Anti-vibration Dampeners (R240 #5) into the HD Camera Mount then attach it to the Top Plate using the sets of 5mm holes.
