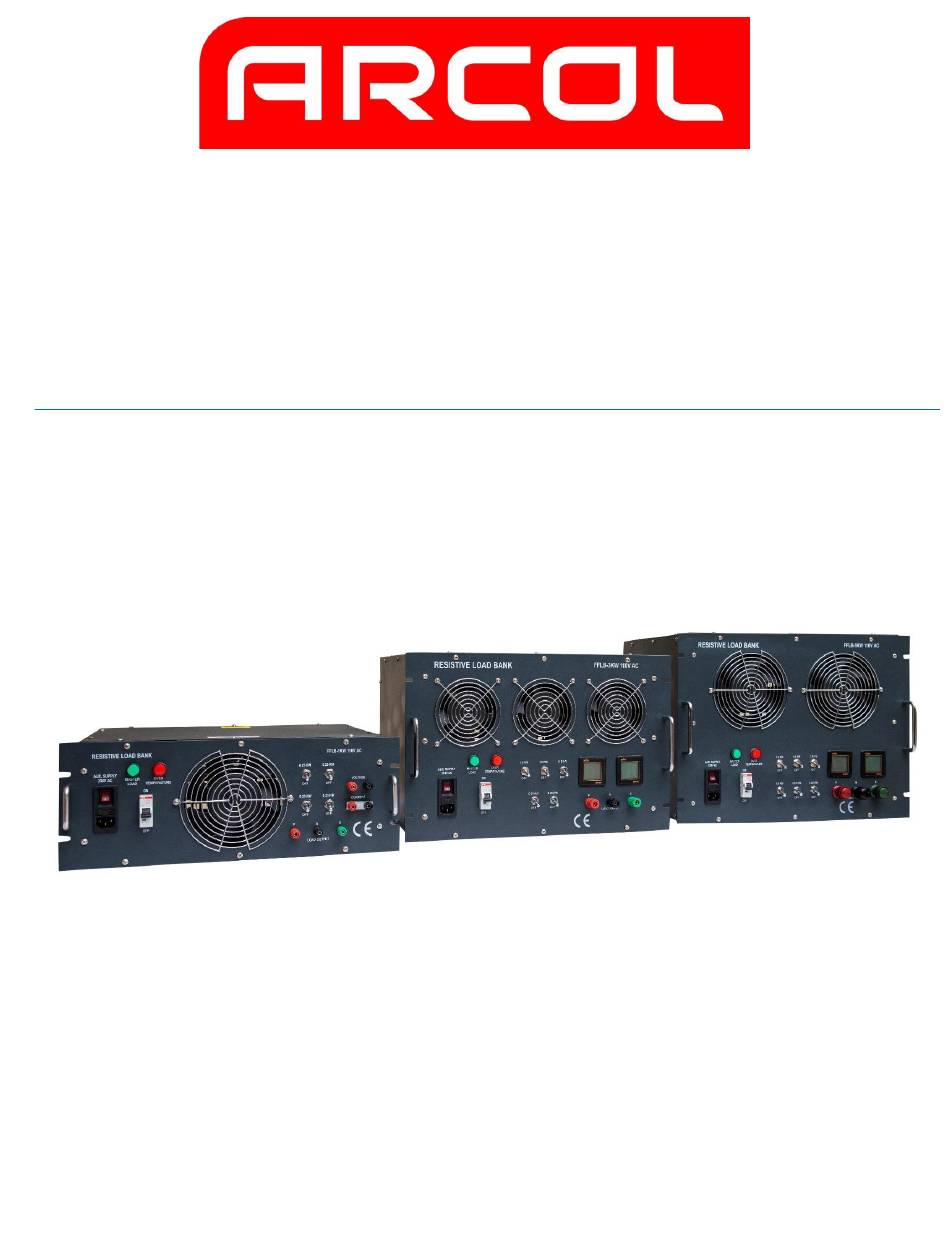

- Page 1 USER MANUAL PORTABLE LOAD – FFLB Series FFLB User Manual 200214 Page 1 of 8...
- Page 2 INDEX . TECHNICAL DATA GENERAL DATA LOAD DATA 2. COMMISSIONING HANDLING INSTALLATION CONNECTIONS SAFETY 3. LOAD CONTROL CONTROL PANEL PROCESS FLOW SHUTDOWN 4. MAINTENANCE GENERAL TROUBLESHOOTING FFLB User Manual 200214 Page 2 of 8...
-
Page 3: Technical Data
TECHNICAL DATA GENERAL DATA Control/Auxiliary voltage 230V AC or 115V AC (Based on Model Selected in Table-1) Control protection Miniature Circuit Breaker (MCB) Over Temperature Protection Thermal Switch Degree of protection IP20 Series W x D x H in mm Overall Dimensions FFLB1KW 482 x 375 x 179... -
Page 4: Installation
COMMISSIONING HANDLING Lifting handles can be used to move the equipment. Please ensure the equipment is handled carefully and that it is not dropped. INSTALLATION The fans on the front panel provides the forced cooling the unit needs to work efficiently. Hence care must be taken to ensure nothing blocks the fan and the air outlet. -
Page 5: Load Control
3. LOAD CONTROL CONTROL PANEL - FFLB1KW MASTER LOAD (Green Indicator) : Indicates load is in ON condition and load step switches can be activated OVER TEMPERATURE (Red Indicator) : Indicates an over temperature in the unit. CIRCUIT BREAKER : Protects the load unit from over current & short circuit. STEP CONTROL SWITCHES (Toggle switches) : The switches control the defined power steps. -
Page 6: Digital Meters
3.2 CONTROL PANEL - FFLB3KW & FFLB5KW MASTER LOAD (Green Indicator) : Indicates load is in ON condition and load step switches can be activated OVER TEMPERATURE (Red Indicator) : Indicates an over temperature in the Unit. CIRCUIT BREAKER : Protects load unit from over current & short circuit. STEP CONTROL SWITCHES (Toggle switches) : The switches control the defined power steps. -
Page 7: Process Flow
PROCESS FLOW Start Connect the Auxiliary Power 230V AC or 115V AC to Load unit Connect the Test supply to Load output (P & N) Terminals Turn on Aux Power switch & Circuit breaker Observe the MASTER LOAD indicator and Fans Check Power Observe Connection &... -
Page 8: Maintenance
✓ Thermal switch is not working ✓ Internal connection may have got disconnected ✓ For any further queries & any information, please contact: ARCOL UK Ltd Unit 5, Threemilestone Industrial Estate Threemilestone Truro Cornwall TR4 9LG FFLB User Manual 200214...
