SD

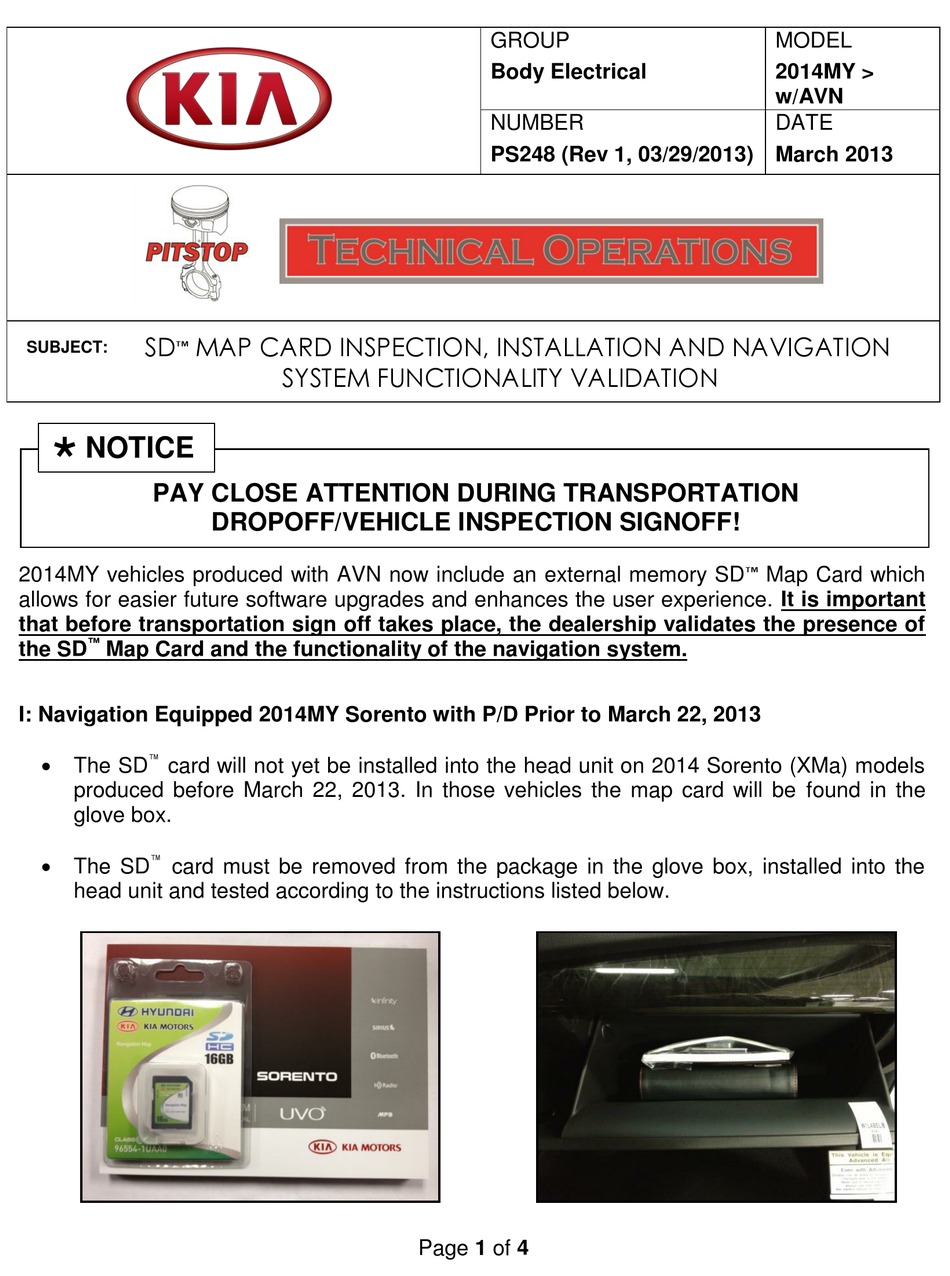

MAP CARD INSPECTION, INSTALLATION AND NAVIGATION
™
SUBJECT:
 NOTICE
PAY CLOSE ATTENTION DURING TRANSPORTATION
2014MY vehicles produced with AVN now include an external memory SD
allows for easier future software upgrades and enhances the user experience. It is important
that before transportation sign off takes place, the dealership validates the presence of
™
the SD
Map Card and the functionality of the navigation system.
I: Navigation Equipped 2014MY Sorento with P/D Prior to March 22, 2013
 The SD
™
card will not yet be installed into the head unit on 2014 Sorento (XMa) models
produced before March 22, 2013. In those vehicles the map card will be found in the
glove box.
 The SD
™
card must be removed from the package in the glove box, installed into the
head unit and tested according to the instructions listed below.

SYSTEM FUNCTIONALITY VALIDATION

DROPOFF/VEHICLE INSPECTION SIGNOFF!
GROUP
Body Electrical
NUMBER
PS248 (Rev 1, 03/29/2013) March 2013
Page 1 of 4
MODEL
2014MY >
w/AVN
DATE
™
Map Card which

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS248 and is the answer not in the manual?

Questions and answers

Summary of Contents for Body Electrical PS248

  • Page 1 GROUP MODEL Body Electrical 2014MY > w/AVN NUMBER DATE PS248 (Rev 1, 03/29/2013) March 2013 MAP CARD INSPECTION, INSTALLATION AND NAVIGATION ™ SUBJECT: SYSTEM FUNCTIONALITY VALIDATION  NOTICE PAY CLOSE ATTENTION DURING TRANSPORTATION DROPOFF/VEHICLE INSPECTION SIGNOFF! ™ 2014MY vehicles produced with AVN now include an external memory SD Map Card which allows for easier future software upgrades and enhances the user experience.
  • Page 2 CAUTION Please exercise caution when inserting ™ the SD card to prevent damage to the audio face-plate. II: All Navigation Equipped 2014MY Vehicles  To validate the presence of the card and the functionality of the navigation system, switch the ignition to the “ON” (vehicle off) or “ACC” position and allow the system to load (Fig.1~2).
  • Page 3  Press the Agree Button (Fig. 3). If the navigation map screen is displayed, the card is in the slot and the navigation system is operational (Fig. 4). Fig .3 Fig .4  NOTICE  If the system does not load, an error message will appear; please check to see if the card is present in the slot (Fig.
  • Page 4 III. Filing a Transportation Claim If missing, note the discrepancy on the BOL/shipping document and open a transportation ™ claim to account for the missing SD Map Card. The following information will be required when filling out a transportation claim form: ...
