DOC SI-RR+ ANG OK der
3/06/03
10:22
Page 1
GB
SI-RR+
A/ INSTALLATION AND GENERAL INFORMATION
1/ Installation
Locate the controller near a 230 V, 50 Hz power source. The
25 cm
controller must be connected to an electrical installation that
conforms to standards and is protected by a fuse in the
electrical panel. Select a sheltered location where the controller
will not be spattered by water.
Remove the "knock out" disk(s) in the bottom of the
controller cabinet.

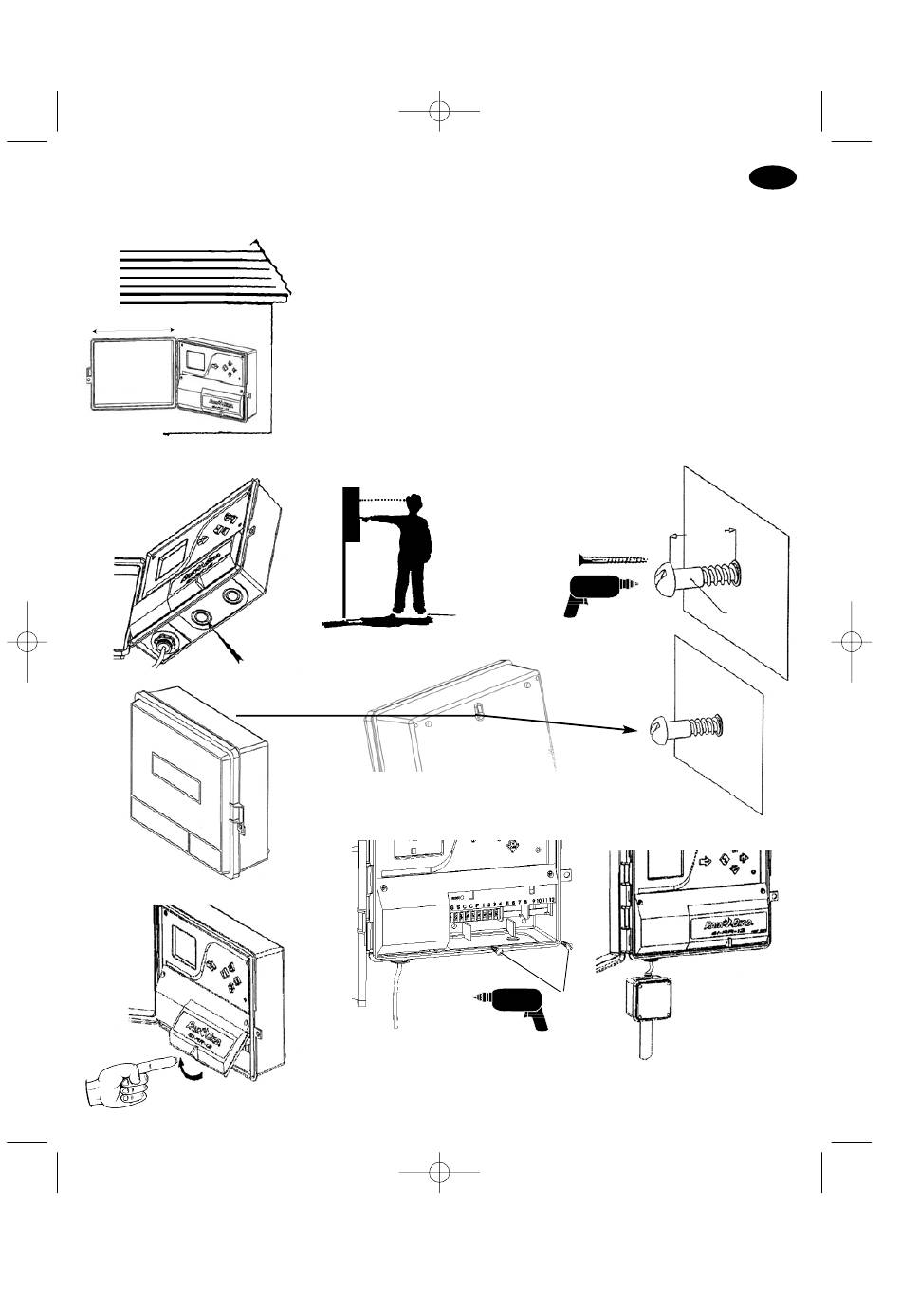

OUTDOOR WALL MOUNT
1
2
3
6 mm
ø 4 mm
4
7
6
5
ø 4 mm
Not included
230 V
2
Advertisement
Summary of Contents for Evergreen Irrigation SI-RR+
- Page 1 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 1 SI-RR+ A/ INSTALLATION AND GENERAL INFORMATION 1/ Installation Locate the controller near a 230 V, 50 Hz power source. The 25 cm controller must be connected to an electrical installation that conforms to standards and is protected by a fuse in the electrical panel.
- Page 2 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 2 2/ General information • Two-color indicator status light provides the following in-formation : • No light :No 230V input. Any power outage is indicated by a blinking icon in the form of a plug which appears in the lower left corner of the LCD display •...
- Page 3 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 3 3/ Adding an extension module 1- Disconnect the 230VAC power supply wires 2 - Unscrew the panel mounting screws. Remove panel 3 - Insert the 4-station extension module. Connect it to the front panel by slightly inclining the module and then use the screw provided to secure it.
- Page 4 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 4 4/ Wiring to the electric valves Multi-valve station capacity :up to 2 RAIN BIRD valves per station plus a master valve or pump start relay. Make sure all wire from the controller to the valves is code-approved for underground low voltage use.
- Page 5 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 5 Wire in Wire in same same conduit conduit Pump Start or Master Valve The terminal marked "P"is used to automatically start a pump with a relay or to open a master valve.The "P"terminal provides power only when one of the stations is operating. Recommended relays : FINDER 55 32 80 24, TELEMECANIQUE RXN 21 E11 B7 or HAGER ES-224 or equivalent.
- Page 6 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 6 4- Connect the phone line to the modem as shown in diagram 4 5 - Connect the transformer wires to the mother board as shown in diagram 5 6 - Replace the front panel and screw it into place 7 - Reconnect the 230VAC power supply wires...
- Page 7 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 7 7/ Rain Check (Option) Wire in same Wire in same conduit conduit 8/ RSD-BEx (Option) Wire in same Wire in same conduit conduit Blue wire not used...
- Page 8 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 8 9/ LPVK-12E (Option) Wire in same conduit Wire in same conduit 10/ Declaration of " CE " conformity I declare that the SI-RR+ type device conforms to the contents of the following Council directives : - N°73/23/CEE of 19/02/73 modified by directive N°93/68/CEE of 22/07/93 - N°89/336/CEE of 03/05/89 modified by directives N°92/31/CEE of 28/04/92 and...
- Page 9 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 9 11/ Glossary • CONTROLLER Device used to automatically open and close electric irrigation valves • STATION A numbered terminal on the controller terminal strip. 1 or 2 electric valves are wired to the terminal.
- Page 10 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 10 1/ Set Clock Icon : clock A- Set the current time of day Repeatedly press the key until this display appears. Now use the +/ON and -/OFF keys. The time of day will appear in hours and minutes. The +/ON key increases the setting.
- Page 11 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 11 3/ Set start times Icon : alarm clock You may operate the same program up to 8 times a day. At each “start time”, all stations on a program will operate in Prog A sequence for the duration you have selected.
- Page 12 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 12 5/Set water budget (Modify the water application). Icon : percentage sign The controller has a Water Budget function used to adjust watering times for each program from 0 to 200 % without Prog A re-setting the watering time for each station.
- Page 13 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 13 7/Manual single station start Icon : hand + STA Repeatedly press the key until this display appears. The station number appears at the left of the display (example: station 1). Repeatedly press the key until the desired station number appears.
- Page 14 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 14 9/System ON / Shutdown Icon : cross The controller has a function which either allows or prevents irrigation. The default mode is ON which allows the programmed watering to take place. You can prevent watering (rainy weather shutdown) without changing the scheduled watering program.
- Page 15 DOC SI-RR+ ANG OK der 3/06/03 10:22 Page 15 Additional screens in Satellite Mode : 1 - Standby Screen. 2 possibilities : a) Automatic watering mode (ON) b) Automatic watering is prevented (OFF) 2 - ON-OFF Screen. Repeatedly press the key until one of these displays appears.
