Core Innovations ANT800BAR User Manual

Core Innovations ANT800BAR User Manual

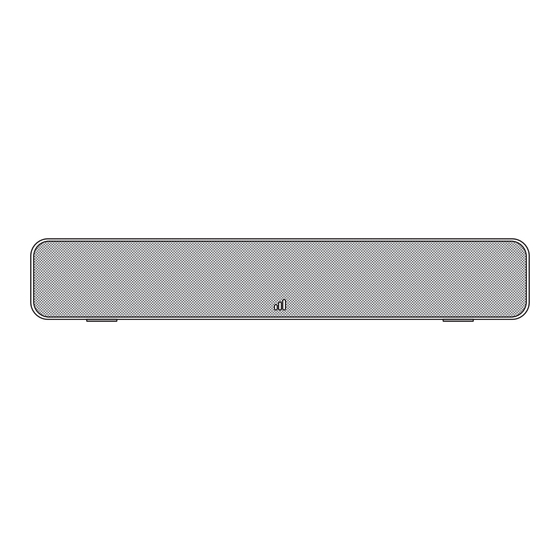

80-mile range amplified indoor tv antenna with signal level indicator

Advertisement

Quick Links

ANT800BAR
User Manual
80-Mile Range Amplified Indoor TV Antenna
with Signal Level Indicator

Advertisement

loading
Need help?

Need help?

Do you have a question about the ANT800BAR and is the answer not in the manual?

Questions and answers

John R Heljenek
March 1, 2025

antenna shows strongest single, but I receive a weak or no single message. the cable connections look ok

1 comments:
Mr. Anderson
March 1, 2025

The Core Innovations ANT800BAR antenna may be showing a strong signal but receiving weak or no signal due to several factors:
1. Interference and Obstructions – The reception may be affected by movement near the antenna, as noted when the picture went haywire if someone walked in front of it.
2. Antenna Positioning – The antenna needed to be adjusted frequently for optimal reception, indicating placement is crucial.
3. Distance from Broadcast Towers – Even though the antenna has an 80-mile range, actual reception depends on obstacles, terrain, and signal strength from the broadcast stations.
4. Channel Availability – Some channels were detected but had poor reception, leading to their removal. This suggests the antenna may pick up weak signals but struggle to maintain a stable connection.
5. Initial Startup Issues – The sound delay and periodic cutouts before repositioning indicate signal inconsistencies that improved with proper placement.

Proper placement, minimizing interference, and rescanning for channels can help improve reception.

This answer is automatically generated

Summary of Contents for Core Innovations ANT800BAR

  • Page 1 ANT800BAR User Manual 80-Mile Range Amplified Indoor TV Antenna with Signal Level Indicator...
  • Page 3 I. Included Parts Antenna with Attached Coaxial Cable (9.8’) Power Supply ’’ x 1’’ Anchors Screws II. Getting Started Here’s what you’ll need to get set up: Digital Converter Box (sold separately - for analog TVs only)
  • Page 4 III. Key Considerations For Your Installation Site • Be sure that installation is in accordance with all local, city and state electrical and building codes. • Understand where broadcast towers are located in your area. Visit www.antennapoint.com or www.antennaweb.org and enter your zip code to identify the channels you can expect to receive.
  • Page 5 Step 1: Connect Your Antenna to Your TV Plug the barrel end of the power supply into the DC input on the antenna, and the AC end into an electrical outlet. If your TV has a digital tuner: Simply connect the antenna’s coaxial output cable directly to your TV’s antenna input port.
  • Page 6 Step 2: Check the LED Signal Indicator The built-in LED signal indicator assists in locating the best channel reception. The LED lights indicate ideal signal strength. GOOD BETTER BEST Step 3: Scan for Channels To perform a TV channel scan: •...
  • Page 7 Step 4: Place Your Antenna Once you have found the optimal location for your antenna, you may choose 1. Tabletop Placement Place your antenna on a console, table or near your TV. 2. Wall Mounted Use the included ’’ x 1’’ screws and plastic anchors to mount your antenna to the wall.
  • Page 8 Troubleshooting I am not getting any channels, or channels are missing. Keep your antenna away from sources of interference, including air conditioners, hair dryers and microwave ovens. Move or rotate your antenna and re-run a channel scan on your TV. Refer to your TV’s user manual for more information.
  • Page 9 Troubleshooting Does my antenna work with any HDTV? Your antenna works with any HDTV or device that has an ATSC tuner. Any TV manufactured after March 1, 2007 is required by US government to have an ATSC tuner. If your TV menu has an option to scan for digital channels, your TV has an ATSC tuner.
  • Page 10 You may also reach a Core Innovations customer service representative by calling 1-833-909-CORE (1-833-909-2673). We are available Monday - Friday, 9am - 5pm PST, except major holidays. Core Innovations strongly urges customers to email their inquiry prior to calling, as this will enable us to better assist you.
  • Page 11: Warranty Information

    Warranty Information Limited Warranty Core Innovations (the “Company”) warrants the product purchased and contained in this package (the “Product”) against defects in material or workmanship for 90 Days (Parts & Labor) and 1 Year (Limited). In order for the Company to honor this limited warranty, you must present a valid proof of purchase (i.e.
  • Page 12 Appendix Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 13 Core Innovations intends to make this manual accurate and complete. However, Core Innovations makes no claim that the information contained herein covers all details and conditions. The information in this document is subject to change without notice at any time.
