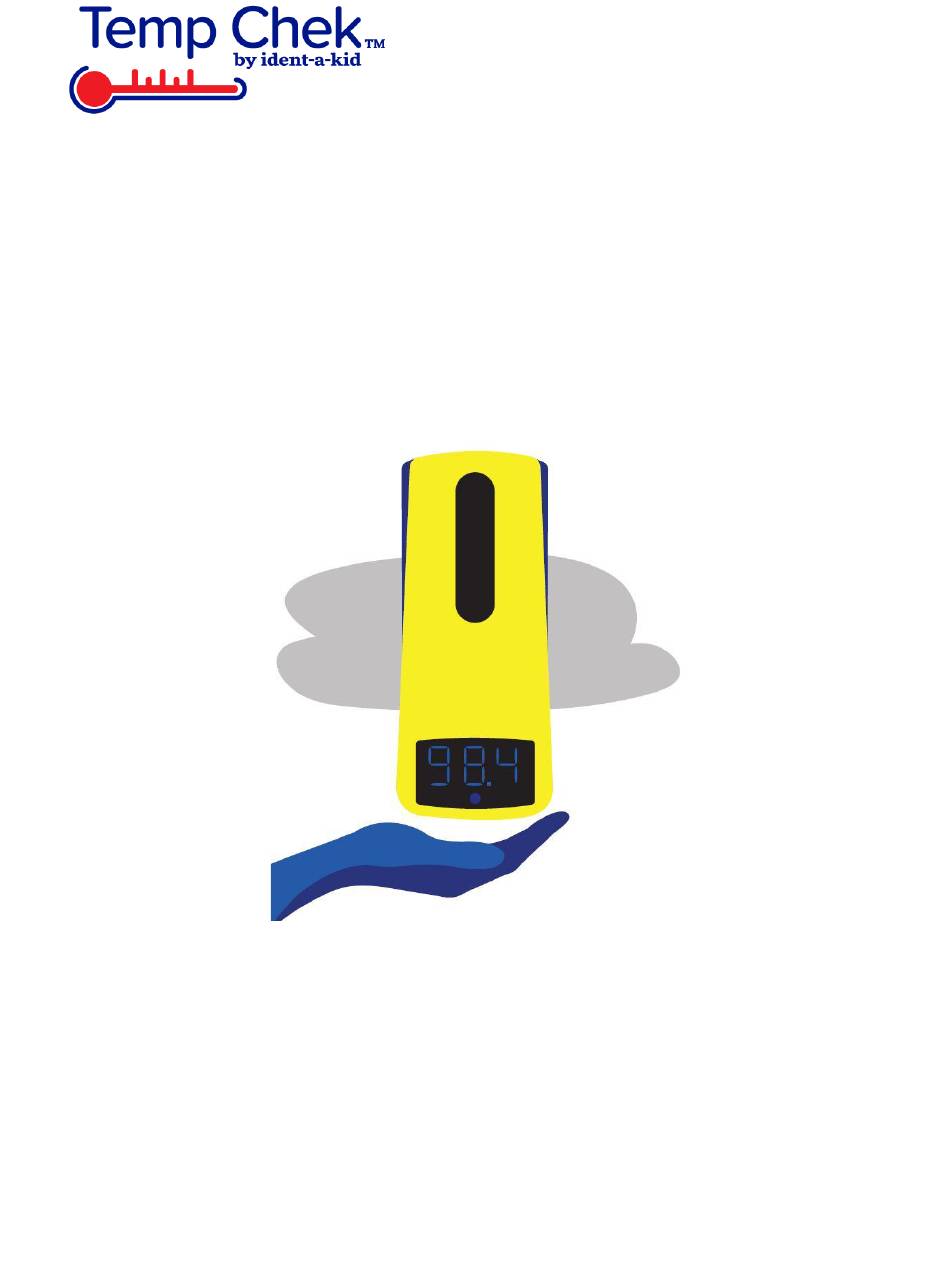

- Page 1 Temp Chek™ Plus Unboxing and Assembly Instructions...
- Page 2 Step 1 - Remove all contents from original packaging and retrieve the Stand Base and both Short and Long Poles.
- Page 3 Step 2 - Remove the Screw from the bottom of the Long Pole and place through the Base. Attach the Long Pole to the Base by tightening the screw using the Allen wrench.
- Page 4 Step 3 - Attach the Short Pole to the Long Pole by twisting the end of the Short pole with a bolt into the top of the Long Pole. Make sure all holes on the both Pole faces front to back. Adjust height by twisting the upper portion of the Long Pole.
- Page 5 Step 4 - Retrieve and place the metal mount with tray on the Short Pole making sure the center hole is matched up to the lowest hole on the Short Pole. Use 2 Long Screws to tighten and secure the Metal Tray to the Short Pole.
- Page 6 Step 5 - Retrieve the Snap Sign and place above the Metal Tray use 2 Long Screws to tighten at the top and bottom of the frame. *(Pictured is the frame without the sign inserted into the frame. However the sign itself can be inserted either before or after attached to the stand.)
- Page 7 Step 6 - Unpackage the Temp Chek™ Plus Unit and hook it onto the Short Screws. Use the Wing Nuts on the back to tighten. Step 7 - Remove cap from from the top of the unit and fill with the sample hand sanitizer that is included and place cap back on.
- Page 8 Step 8 - Install the provided sign in the snap frame if not attached already. Step 9 - Use Strap on the back of the Metal Frame to secure the cables to the pole. Use extras provided in the bag if needed for cable management. Step 10 - Press the Power Button and then the other button to put in Fahrenheit mode.
- Page 9 For an Assembly Video to help with your TempChek Plus go to our Support Page Videos at https://support.identakid.com/videos/ and select our Hardware Feature Videos to see a demonstration of TempChek Plus being setup. Have any questions? Please feel free to contact us at 1-800-890-1000 and select option 2 to speak with our Tech Department.
