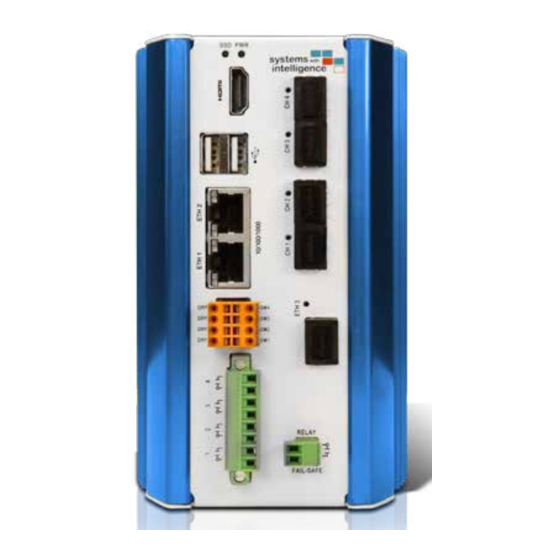

Systems With Intelligence DVS500 Installation Manual

Substation hardened digital video server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DVS500
SUBSTATION HARDENED DIGITAL VIDEO SERVER
INSTALLATION GUIDE
Version 1.0
Note: Please read this manual thoroughly before operating this unit and retain it for future reference.
www.SystemsWithIntelligence.com
support@SystemsWithIntelligence.com
© 2018 Systems With Intelligence. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVS500 and is the answer not in the manual?

Questions and answers

Related Manuals for Systems With Intelligence DVS500

Summary of Contents for Systems With Intelligence DVS500

  • Page 1 DVS500 SUBSTATION HARDENED DIGITAL VIDEO SERVER INSTALLATION GUIDE Version 1.0 Note: Please read this manual thoroughly before operating this unit and retain it for future reference. www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2018 Systems With Intelligence. All rights reserved.
  • Page 2 We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot be completely ruled out. Systems With Intelligence shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 3: Federal Communications Commission Radio Frequency Interference Statement

    Should this device require service please contact Systems With Intelligence Inc. IMPORTANT The DVS500 family of products should be installed in a restricted access location where access can only be gained by service personnel or users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;...

  • Page 4: Table Of Contents

    Copper Ports................................14 Copper Gigabit Ethernet 1000Base-TX Cabling Recommendations..............14 Environmental Specifications........................15 Temperature & Humidity............................15 EMC/EMI/ESD................................. 15 EMI TYPE TESTS ............................16 EMI IMMUNITY TYPE TESTS ......................... 17 www.SystemsWithIntelligence.com support SystemsWithIntelligence.com © 2018 Systems With Intelligence. All rights reserved.

  • Page 5: Product Overview

    Cellular Interface* • 4 x Digital Outputs FAIL SAFE • Fail Safe Relay 5.44 in. 138.2 mm Redundant Power Input • 20VDC-60VDC Mounting • DIN rail mounts Future option available soon. www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 6: Technical Specifications Overview

    EMC/EMI • IEC 61850-3; IEEE 1613; IEC 61000-6-2; IEC 61800-3 Mounting/Dimensions • DIN mountable Warranty • 2 Years Future option available soon. Other CPU models and RAM are available. Please contact Systems with Intelligence for more information. www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 7: Dimensions

    DVS500 Installation Guide - V1.0 2 Dimensions 3.72 in 5.44 in (94.5 mm) (138.2 mm) 2.94 in (74.8 mm) 6.34 in (161 mm) * Note: Units in Imperial (Metric). www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 8: Power Supply

    Chassis Ground is connected to the equipment ground bus. Screw Ground Positive / + Positive / + is connected to the positive (+) terminal. Negative / - Negative / - is connected to the negative (-) terminal. www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 9: Power Supply Wiring

    Notes: • Equipment must be installed according to the applicable country wiring codes. • AConnect the ground terminal on the power source to the chassis ground terminal on the DVS500. www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 10: Failsafe Relay

    An open state will indicate that the server has no power or that something is wrong with the software running in the server. DVS500 OVERALL DIMENSION www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 11: Ip Camera Input

    DVS500 Installation Guide - V1.0 5 IP Camera Input The DVS500 can be equipped with IP video inputs. 4-port IP Camera Input cards are available with fiber optic SFP based LC connectors or RJ45 connectors. All ports support 100Mbps inputs.

  • Page 12: Serial Interface

    DVS500 Installation Guide - V1.0 6 Serial Interface The DVS500 is equipped with a module that provides 4 digital inputs and 4 digital outputs with the following characteristics: • 4 dry contact, current loop inputs + 4 relay switch output (30 VDC, 1 Amp / 50 VAC, 5 Amps)

  • Page 13: Relay Output Interface Connectors

    Common relay output NO_RELAY3 Normally open relay output COM_RELAY3 Common relay output NO_RELAY4 Normally open relay output COM_RELAY4 Common relay output Table 2 - Relay Interface Connector Pin Definition (P2) www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 14: Ethernet Ports

    7 Ethernet Ports Copper Ports The DVS500 has an IEEE 802.3 Ethernet Interface for 1000Base-T, 100Base-TX, and 10Base-T applications (802.3, 802.3u, and 802.3ab) conformance. The RJ45 Ethernet ports features auto negotiating, and auto- crossover functions. The following figure shows the RJ45 port pins configuration.

  • Page 15: Environmental Specifications

    DVS500 Installation Guide - V1.0 8 Environmental Specifications This section summarizes the environmental specifications that the DVS500 has been designed to meet. Temperature & Humidity FUNCTION DESCRIPTION SPECIFICATION Cold Operation - 40°C, 16 hours Dry Heat Operation +75°C, 16 hours...

  • Page 16: Emi Type Tests

    705 VDC, 1 min (Ethernet) Signal ports 705 VDC, 1 min (Relay) Dieletric IEC 60255-5 705 VDC, 1 min (Relay Contacts) Strength D.C. Power ports 705 VDC IEC 60255-5 H.V. Impulse D.C. Power ports www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.

  • Page 17: Emi Immunity Type Tests

    Transient Earth ground ports +/- 4KV Signal ports 705 VDC, 1 min Dieletric IEEE C37.90 Strength D.C. Power ports 705 VDC, 1 min IEEE C37.90 H.V. Impulse D.C. Power ports www.SystemsWithIntelligence.com support@SystemsWithIntelligence.com © 2017 Systems With Intelligence. All rights reserved.
  • Page 18 6889 Rexwood Road, Unit #9 info@SystemsWithIntelligence.com Mississauga, Ontario, CANADA Sales Inquiries: L4V 1R2 sales@SystemsWithIntelligence.com Tel: +1-289-562-0126 Product Support: Fax: +1-289-562-0152 support@SystemsWithIntelligence.com All specifications in this document are subject to change without notice. d017-0003-301-1 © Copyright 2018 Systems With Intelligence Incorporated. All rights reserved.
