Summary of Contents for Satellite Suites ADA+2

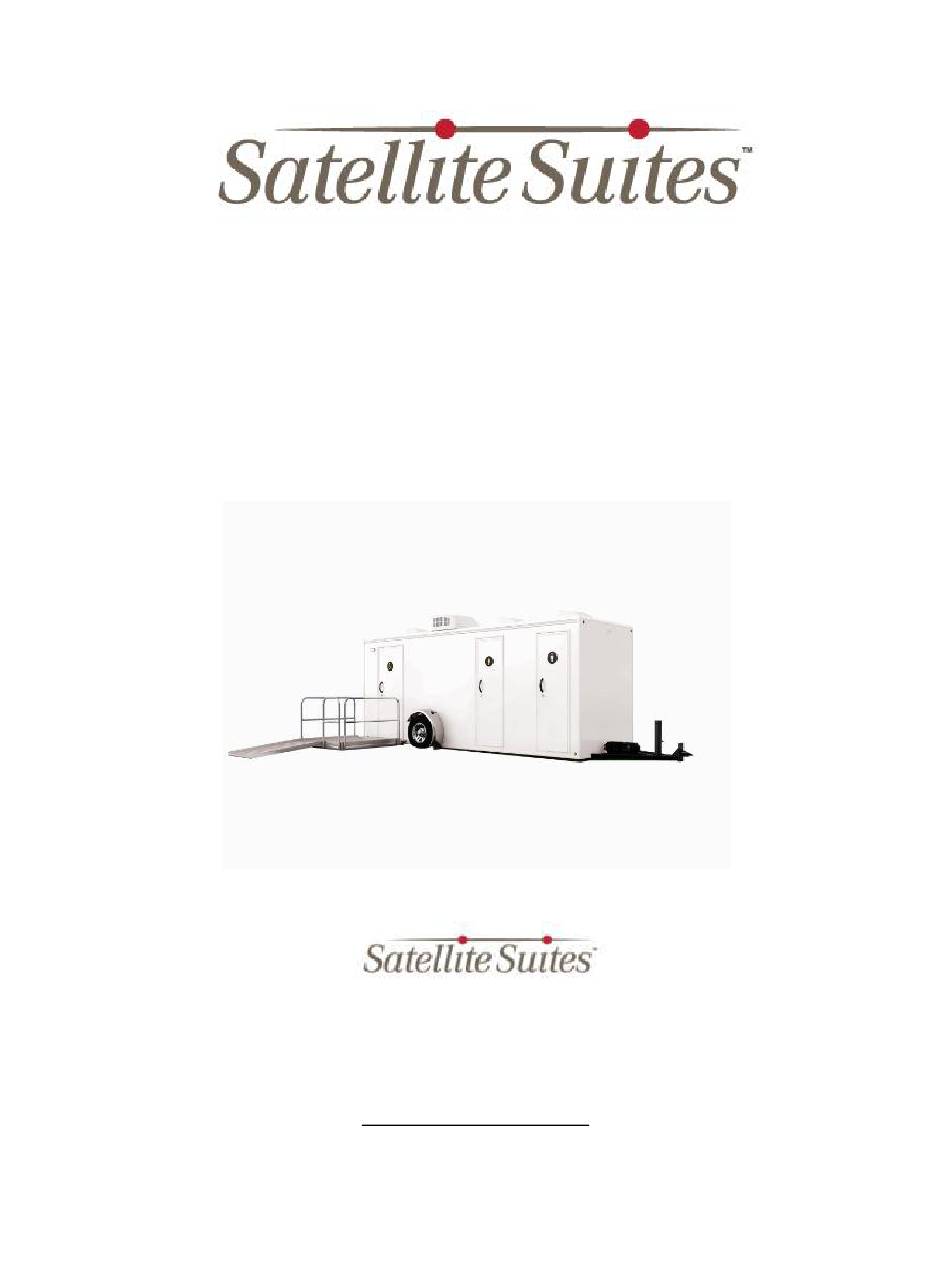

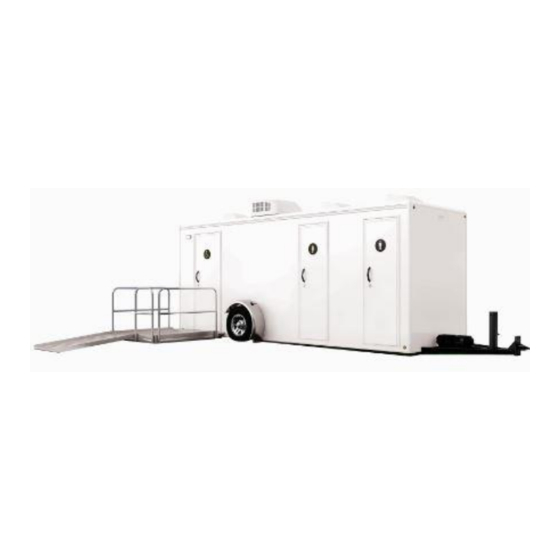

- Page 1 ADA+2 Restroom Trailer OWNER'S MANUAL Satellite Suites ™ 1686 Commerce Drive, Bristol, Indiana 46507 www.satelliteindustries.com 4/17...
-
Page 2: Table Of Contents
BEFORE EVENT SET UP CHECKLIST ....................7 AFTER THE EVENT - TEAR DOWN ...................... 8 INITIAL SET UP ............................ 9-14 Securing the Unit ..........................10 ADA+2 Platform Installation ......................12-13 ADA+2 Handrails Installation ......................14 Sidewinder Leveling Jack Installation ...................... 15 ELECTRICAL CONNECTIONS ......................16 Power Cords, Outlets and Utility Area. - Page 3 Operating Using On Board Fresh Water Tank System.............. 24 HVAC - (Heating, Ventilating, and Air Conditioning) ................ 25 Turning on the Air Conditioning Unit....................25 Turning on the Heat Strip in the AC Unit ..................25 Optional Forced Air Heat ........................26 WASTE TANK............................
-
Page 4: Welcome
WELCOME Thank you for purchasing a Satellite Suites™ Restroom Trailer. Your trailer is designed to give you many years of service. Of course, the better you care for your trailer the longer your investment will last and the more satisfied your customers will be. -
Page 5: Transporting Your Trailer
TRANSPORTING YOUR TRAILER We recommend reading "Transporting Your Trailer Checklist" on page five before transporting the trailer to any event. The Satellite Suites ADA+2 restroom trailer has easy to use front connections for operation and maintenance. The unit has one 10,000 pound leaf spring axle to create a smooth ride to and from events. -
Page 6: Transporting Your Restroom Trailer
Transporting Your Restroom Trailer Outside the Trailer: 1. Make sure the coupler hitch is in the full locked position on a 2 5/6" ball and pin is in place. 2. Check trailer brakes to make sure they are functional. (if installed) 3. -
Page 7: Before Event Set Up Checklist
BEFORE EVENT SET UP CHECKLIST Deploy Sidewinder Jacks. Raise trailer to unpin axles on driver and passenger side. Lower trailer Deploy Platform and Ramp. Connect Power Cord to Power Source. (See Electrical) Level Trailer. Connect 3/4" Garden Hose to Trailer Water Connection. (See Plumbing) At Service Area, Turn on Main Breaker. -
Page 8: After The Event - Tear Down
AFTER THE EVENT - TEAR DOWN After your event has ended the trailer is ready for tear down and transportation home. 1. Lock folding platform and ramp. 2. Raise trailer to unpin axles on driver and passenger side. 3. Shut off all electrical outlets. 4. -
Page 9: Initial Set Up
2 X 8 boards. Rear of Trailer Side-Winder Jack (Front) The Satellite Suites ™ ADA+2 trailer has two 7,000 pound side-winder jacks located in the front of the unit. This is designed to keep the trailer stable and secure when in use. - Page 10 Using the Remote Control At the mechanical room of the trailer, the remote will flash, now hold the button down till it goes to one position retract or extend. At the back of the trailer, extend one Jack at a time.
- Page 11 Repeat process on Driver's Side Raise Jack to Secure. Proceed to the front of The Satellite Suites ™ ADA+2 trailer. Using the remote lower the front jack to secure the trailer. We recommend the following step by step instructions before operating the trailer.
-
Page 12: Ada+2 Platform Installation
Deploying the Platform We recommend the following step by step instructions before operating the trailer. .At the side of the driver's side of the trailer remove the treshold and secure it. At the right side remove the right clip then the left clip. Secure the platform on the ground. The clearance between the door and platform must be checked. - Page 13 Installing the Treshold Install the treshold between the trailer and platform. Treshold Install Treshold Platform and Ramp Assembly. At the driver's side of the trailer, remove the right and left clips to unlock the platform ramp. Lower the platform ramp and carry it to passenger side of the trailer. Secure ramp to platform.
-
Page 14: Ada+2 Handrails Installation
Installing Handrails. At driver's side of trailer, unlock the handrails. Carry handrails to platform. Insert handrails into slots and secure. Unlock Side Rails Install Side Rail Install Side and Front Rails... -
Page 15: Sidewinder Leveling Jack Installation
Sidewinder Leveling Jack Installation The Satellite Suites ™ ADA+2 trailer has two side-winder jacks located in the front and back of the unit. We recommend the following step by step instructions before operating the trailer. Sidewinder Leveling Jack 1. Remove Keeper Pin. -
Page 16: Electrical Connections
Check Blue Light on Trailer Power Cords. ADA+2 Trailer Power Cords Cord 1 - Main (30), Converter (15), Air Conditioning (20) Cord 2 - Main (20), Service Area (15), Water Heater (15) Cord 3- Main (30), Men's Heat (15), Women's Heat (15), ADA+2 Heat... -
Page 17: Electrical Outlets
Electrical Outlet Access Port Service Area The Satellite Suites ™ ADA+2 trailer service area is located at the driver's side of the unit, The ADA+2 trailer has easy access to electrical, plumbing, and auxiliary controls. The following sections will assist you in troubleshooting your trailer if a problem occurs. -
Page 18: Breaker Boxes
Breaker Boxes Single Breaker Multiple Breakers The Satellite Suites ™ ADA+2 trailer has two breaker boxes located in the service area. We suggest checking all breakers you select are in the on position before operation. Breaker One Breaker Two Breaker Box 1... -
Page 19: Volt Panel Converter
Entertainment Center Bluetooth & Code An optional feature to the Satellite Suites ™ ADA+2 trailer is AM/FM Radio and Bluetooth technology. Music can be played from your Bluetooth capable mobile device or the event planners phone by entering the 0000 code. -
Page 20: Electrical Switches
Electrical Switches 12 Volt Switches in Unit 12 Volt Switches The Satellite Suites ™ ADA+2 trailer includes six to eight panel switches to operate various lights, water pumps, and vent fans. 12 Volt Switches 12 Volt Switches 1. Front Stall 6. -
Page 21: Group 24 - 12 Volt Deep Cycle Battery
Note: The battery disconnect switch must be in the on position and the converter plugged in for the system to charge. This operation can take up to 12 hours for a full charge. Group 31 - 12 Volt Deep Cycle Battery A group 31- 12 volt deep cycle battery is located in the back of the unit on the rear side compartment. -
Page 22: Plumbing
PLUMBING Water Connections To operate the system after trailer is leveled and stairs deployed, connect a 3/4" garden hose to the trailer's water connection. The trailer comes standard with a pressure regulator that cuts pressure to 40 psi. If no water is available the system can be operated by using the on-board fresh water tank. -
Page 23: Water Filter
Water Filter The unit is equipped with a water filter. Check and clean the water filter periodically every 30-60 days. City Water Supply - Operating from a Fresh Water Hose Connection. The trailer is designed to operate using standard city water. Once the 3/4" is connected, at the service area, open the bottom city water valve and close the upper water tank valve to operate. -
Page 24: Operating Using On Board Fresh Water Tank System
Operating Using On Board Fresh Water Tank System. If city water is not available, the Satellite Suites ADA+2 trailer is equipped with an on board fresh water tank. To fill the fresh water tank, close the bottom city water valve and open the upper water tank valve. -
Page 25: Hvac - (Heating, Ventilating, And Air Conditioning)
HVAC - (Heating, Ventilating, and Air Conditioning) Turning on the Air Conditioning Unit. Turn on air conditioning at the control panel in the service area to cool. The setting must be colder than the inside temperature to operate. The AC/Heating unit's temperature is measured by the inside cabin thermostat sensor. -
Page 26: Optional Forced Air Heat
Tank. Access Tank The Satellite Suites ™ ADA+2 trailer has an easy to use 4" clean out port for your waste tank. We use a smooth polypropylene tank so waste won’t stick to it when the unit is pumped. We suggested using a power washer to the clean out the tank... -
Page 27: Blade Valve With A 2" Quick Connect Cam
Blade Valve with a 2" Quick Connect Cam. Blade Valve Accessible 4" Clean Out Port. The unit includes a blade style dump valve with a 2" quick connect cam. The blade valve dumps from the bottom of the waste tank with a low point sump. Connect vacuum hose to 2"... -
Page 28: Deodorizer - 300 Gallon Waste Tank
Deodorizer – 300 Gallon Waste Tank Either at the shop prior to delivery, or at the customer site, charge the tank with Safe-T- Fresh™ QuickScents™ Bio packets. Dissolve and disperse 6 to 8 packets with 10% of tank volume to the waste tank through one of the toilets. Ideally, the units should be charged after each event and will be ready to go for the next event. -
Page 29: Winter Operation - Arctic Package
WINTER OPERATION - ARCTIC PACKAGE If your trailer is equipped with the optional Arctic Package, when temperatures approach freezing, the Arctic Package will provide electric forced air heat to the cabin, service area, waste tank insulation and 110 volt waste tank heat pads. The Arctic Package is operated during fall and winter months for heating the waste tank, service area and interior cabin. -
Page 30: Tips When Operating In Inclement Weather
Turn the water system on in the unit. Once the system is primed the toilet and faucet will be able to operate. The ADA+2 f water continues to run too long or short, the faucet cartridge can be adjusted for more or less water flow. -
Page 31: Toilets
TOILETS The Satellite Suites ADA+2 restroom will automatically flush at a touch of a button. FAUCETS Faucet Black Water Tank The Satellite Suites ADA+2 restroom vanity are gravity flow will automatically flush. The unit empties into a gray water tank located on the driver's side of the trailer. After 2 1/2... -
Page 32: Adjusting Water Flow
ADJUSTING FAUCET Adjusting Water Flow If water continues to run too long or short, the faucet cartridge can be adjusted for more or less water flow. Always shut the water off before repairing the faucet. The water shut off valve located at the water port at the side of the trailer. 1. -
Page 33: Troubleshooting
TROUBLESHOOTING Problem Solution I don't have water. Check water connections. Check water source. Check water shut off valves. I don't have power. Check power cord for blue light. Check power connections. Trailer has to be grounded. Jacks must be touching the ground. Check main breaker is on. -
Page 34: Contacting Customer Service
Faucets run too long or short Adjust Sink Cartridge. Urinals run too long or short. Adjust or replace the urinal flush valve cartridge. Toilets won't stop running. Close shut off valve behind toilet. Replace base. CONTACTING CUSTOMER SERVICE CALL THE MAIN BUSINESS OFFICE AT 574-350-2150 FROM 8 AM -5 PM EASTERN TIME ZONE. -
Page 35: Winterizing
WINTERIZING As temperatures fall below freezing your Satellite Suites trailer will need to be winterized, unless it is in operation and equipped with the Arctic Package (see accessories). All water must be removed from the trailer or be treated with RV Antifreeze (propylene glycol). - Page 36 air source. Flush each toilet and urinal until there is only air escaping. Turn off the air compressor when toilets and urinals are clear. Next, make sure the ball valve on the toilet is closed and add a few ounces of RV Antifreeze.
-
Page 37: General Restroom Trailer Maintenance Tips
Other steps for proper storage include making sure all doors are locked and sealed to prevent rain, snow, or bugs from entering the trailer. With the Satellite Suites trailer the roof vents can remain open in mild weather to allow fresh air to circulate (Maxx Air covers keep the rain out). -
Page 38: Warranty
If upon examination by Satellite Suites™, or our representative, any covered part or parts are determined to be defective Satellite will provide, free of charge, the repair or replacement of said items at Satellite’s discretion. - Page 39 CLAIMS EXCLUDED FROM THIS WARRANTY Satellite Suites™ is not responsible for claims relating to any of the following: (1) any type of defacing, including scratches, dents, chips, tears, or defacing on any surface not caused by the Manufacturer; (2) Floor wear; (3) damage due to unauthorized repairs, abuse, misuse, neglect, or overloading (as determined by the GVWR);...
