Product introduction

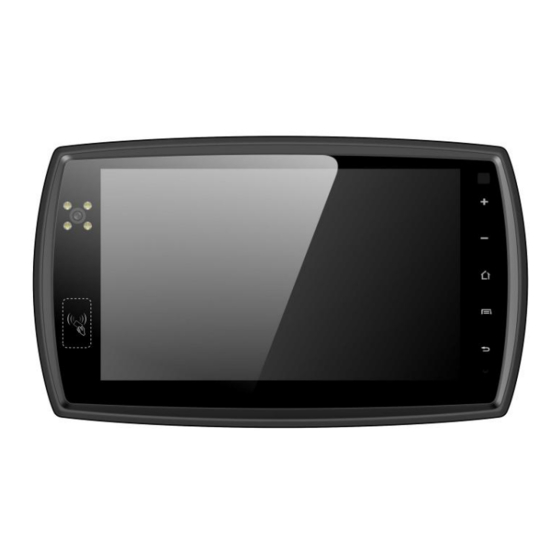

MDT750 has optional features (WiFi, BT, GPS, 3G, RFID, LoRa, Back camera, Front camera, Video input,
GPIO, Lightsensor, Gyroscope, Accelerometer)
Highlights:
3G – pls insert the SIM card when the device if complete off
front camera – there are 6 IR LED around the camera. if you enable the flash function in front camera,
then you will see the IR LED is on. In this case, the picture will be in black and white

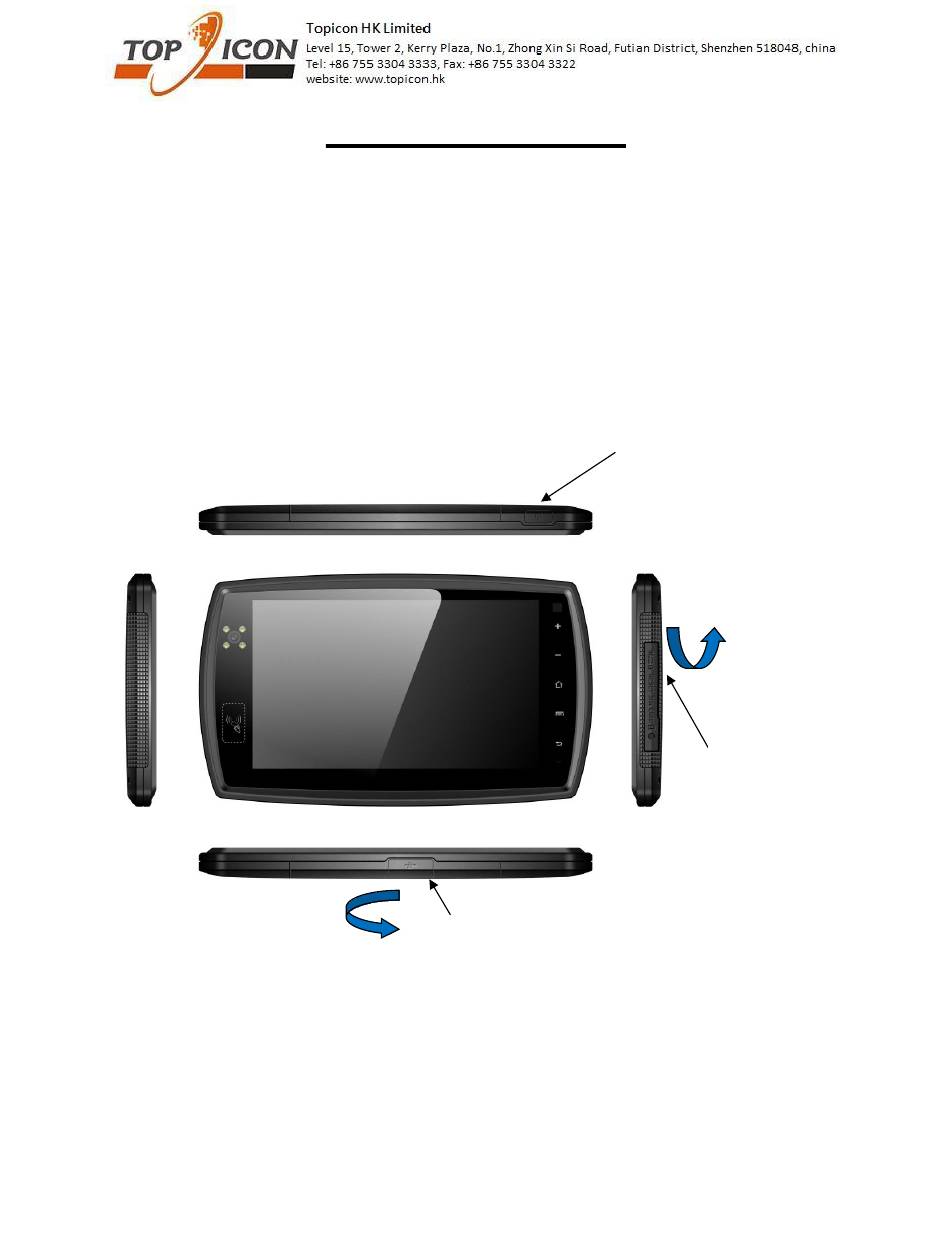

Pls move right to open the
cover, you will hear "click"
sound, it is normal
All rights reserved. No part of this work may be reproduced or copied in any form or by any means (graphic, electronic, or mechanical, including photocopying,
recording, recording taping, or information and retrieval systems) without the written permission of the copyright owner
Quick Start Guide
Micro usb for connecting to PC or charging
Pls cover it well in order to ensure the waterproof
performance
On/off button
Pls move upward to open the
cover, you will hear "click"
sound, it is normal
SD card slot, SIM card slot and
reset button
Screw hole is available if you
want to lock the cover
Pls cover it well in order to
ensure the waterproof
performance
1
Advertisement
Summary of Contents for Topicon MDT750
- Page 1 Quick Start Guide Product introduction MDT750 has optional features (WiFi, BT, GPS, 3G, RFID, LoRa, Back camera, Front camera, Video input, GPIO, Lightsensor, Gyroscope, Accelerometer) Highlights: 3G – pls insert the SIM card when the device if complete off front camera – there are 6 IR LED around the camera. if you enable the flash function in front camera, then you will see the IR LED is on.
- Page 2 Direction of SIM card and SD card All rights reserved. No part of this work may be reproduced or copied in any form or by any means (graphic, electronic, or mechanical, including photocopying, recording, recording taping, or information and retrieval systems) without the written permission of the copyright owner...
- Page 3 Interface 1. There is TTL serial port (Tx/RX) or OTG from 10 pin usb connector 10pin usb connector pls see the above schematics of our USB connector in our PND, it is 10 pin connector. Pin 4 and 6 can be used for USB or TTL serial interface (Rx/Tx) and Pin 8 is ID pin which is used to distinguish for USB or serial interface.
- Page 4 2. There are Rs232 interface and OTG from cradle. Highlights: OTG port from device (10pin usb connector) and cradle are sharing same pins. Only 1 OTG interface can be used. Usb connector for OTG or charging This cable can be customized when you placed order For sample, it will be 12 pins connector, pls see below or pins assignment...
- Page 5 Pin 1 – NOT connected Pin 2 – GND (black) Pin 3 – RXD (White) Pin 4 – NOT connected Pin 5 – NOT connected Pin 6 – Ignition (Green), it can be wake up the device. see the software section for more details. Pin 7 –...
-
Page 6: Device Installation
If you want to try this feature, pls open the cradle. There are switch inside the cradle PCB. (only production batch >1642) Device installation There are few options 1. Directly attach mount to device (no cradle in this case) 2 screw hole at the back Pls use M4 15mm screw if the mount thickness is 9mm. - Page 7 2. Cradle attached to car mount with different screw length 2 screw hole at the back Case 1 – if M4 18mm screw is used, the device will be removable from cradle Case 2 – if M4 23mm screw is used, the device will be not removable from cradle Mount options: There are many car mount options.
- Page 8 Low cost wind shield car mount Option 2: Many mount option from RAM MOUNT You can choose the mount you like from their website (www.rammount.com) Example 1 (RAP-B-166-2U) Example 2 (RAM-B-138-224-1U) Example 3 (RAM-B-138U-A) All rights reserved. No part of this work may be reproduced or copied in any form or by any means (graphic, electronic, or mechanical, including photocopying, recording, recording taping, or information and retrieval systems) without the written permission of the copyright owner...
- Page 9 Example 4 (RAP-B-138-AU) Option 3: You can also choose mount from HR (http://www.hr-autocomfort.de/) There are 4 hole plate which you can lock in the cradle with 4 screw hole. then, you can choose the mount from HR. Example 1 (1719/0) All rights reserved.
- Page 10 Option 4: Mounting solution from truck expert (ARAT) http://www.arat-de.eu/index.php?ber_id=10&dia_id=1&lang=en Option 5: There are other mount which can support this 2 screw hole and 4 screw hole at the back can be used. For my understanding, there are other mount company also use this 2 or 4 screw hole as standard. Pls let know if you need other mounting system or solution.
- Page 11 New silicon sleeve It can have more protection for the device. 1. It also support stylus. There are optional clip which you can install at the back of the sleeve. 2. There is new cradle (dock) to match the device with sleeve. This cradle can be used for the device with or without the sleeve.
-
Page 12: Software Support
This intent is sticky, ie the application will be immediately notified of the current status at registration, even if no transition occurred. Here is a code sniplet : private static final String ACTION_IGNITION = "hk.topicon.intent.action.IGNITION"; private BroadcastReceiver mIgnitionReceiver = new BroadcastReceiver() { public void onReceive(Context context, Intent intent) { String action = intent.getAction();... - Page 13 FCC RF Exposure Information and Statement This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.
