Summary of Contents for Resten City

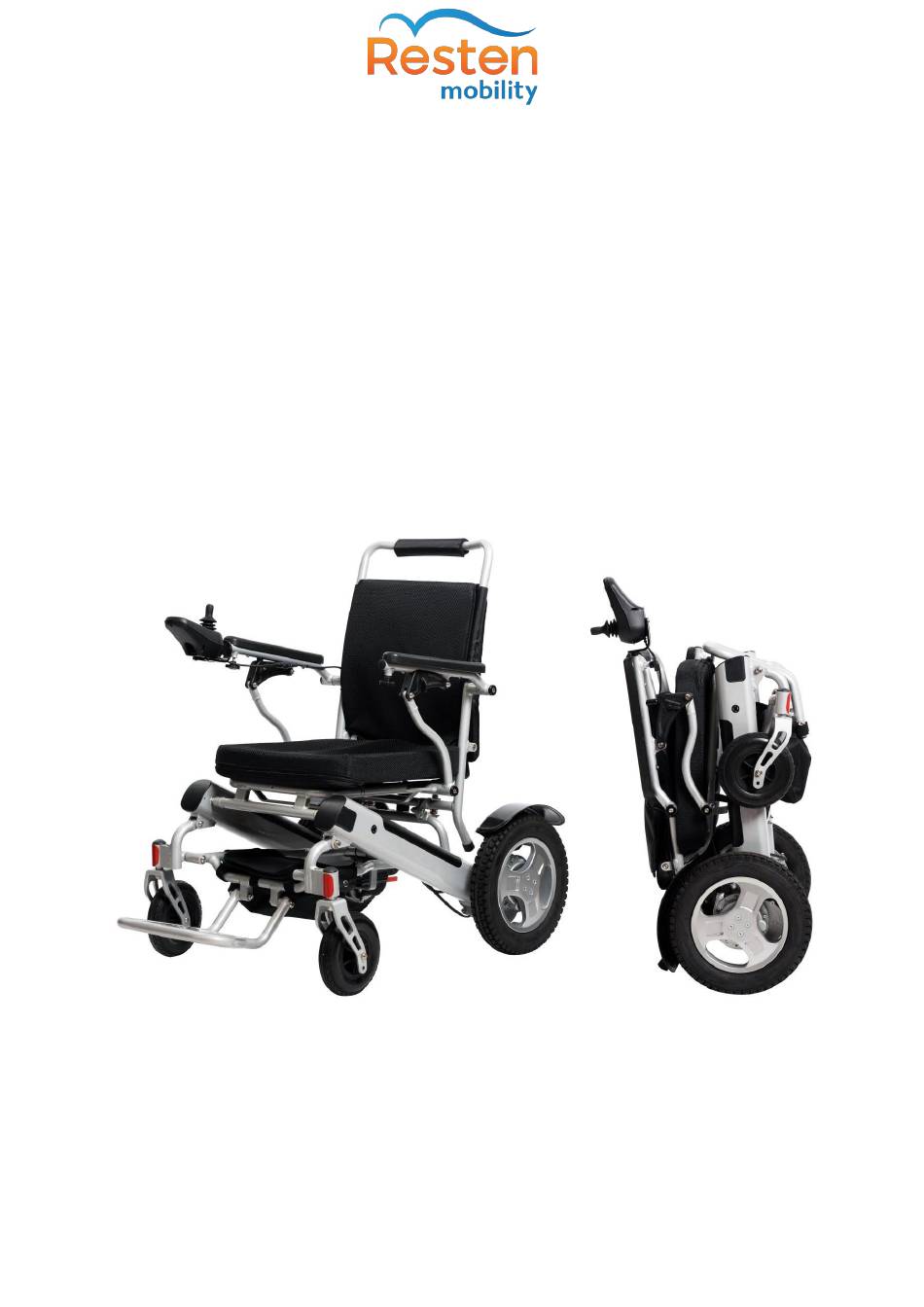

- Page 1 Folding Power Wheelchair Model: City Operating Manual Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com USA Tel: (866)709-1332...
-
Page 2: Table Of Contents
Specification Diagram.........................3 Safe Operation.........................4-5 Precautions..........................6 Maintenance..........................6-7 Setup............................8-12 Folding and Unfolding......................12-13 Controller...........................14 Basic Operation..........................15 Charging Batteries.........................15-18 Free Wheel Mode........................18 Transporting Your Folding Power Wheelchair.................19-20 Trouble Shooting........................20-21 Diagnostics..........................21-22 Warranty..........................22-23 Guarantee Card...........................23 Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com USA Tel: (866)709-1332... -
Page 3: Introduction
You will find the operation and care of your Power Wheelchair very simple and easy. Disclaimer: Resten,its affiliates and partners can not be held responsible for personal injury or property damage resulting from the unsafe or improper operation or maintenance of your portable electric wheelchair. -
Page 4: Specifications
Specifications Model City Material Aluminum alloy Unfolding size 985*658*1060mm Folding size 658*355*820mm Loading capacity 120kg / 265 lbs Motor 250W*2pcs brushless motors Battery 24V 6AH*2 pcs lithium battery Maximum speed 6km/hour / 4 miles/hour Driving range 18-20km / 12-15 miles Front wheels 7”*1.75”... -
Page 5: Specification Diagram
Specification Diagram Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com USA Tel: (866)709-1332... -
Page 6: Safe Operation
◎ General safety: a. Adjust the City Power Wheelchair to your personal comfort level as much as possible. b. Take your time to learn how the City Power Wheelchair works in a private space before you begin operating around others. - Page 7 (1) Never sit in the City power wheelchair while in a moving vehicle; an accident or sudden stop may cause you to be thrown from the electric wheelchair. (2) Never transport the City power wheelchair in the front of seat of a vehicle where it may shift and interfere with the driver.
-
Page 8: Precautions
Certified repair shops with trained professionals who specialize in electric wheelchairs and scooters will be qualified to perform the service and maintenance on your City power wheelchair. We recommend you inspect your City power wheelchair two or three times per year in the following areas: Web: resten.ca... - Page 9 (1) Batteries are special lithium batteries designed specifically for use in the City power wheelchair. (2) Read all battery instructions before attempting to change or charge batteries. (3) When you don’ t use the City power wheelchair for long periods of time, please charge the battery every month to avoid the battery being damaged.
-
Page 10: Setup
Setup Your City power wheelchair will arrive carefully packaged in a cardboard box. 1. Open the top of the box then turn the box on the side for easier pulling out the chair and contents. 2. Total components as bellow: Web: resten.ca... - Page 11 4. Sit on the chair and lean backwards to make sure the clip locker which is located below the seat to the rear of the City Power Wheelchair, to lock the seat into place. This step is very important !!! Web: resten.ca...
- Page 12 6. Connect the controller wiring harness to the CPU wiring harness. Take care to line up the pins properly as arrow tip indicates, so that they do not get bent, broken or damaged. Make sure connector pins “white arrow” to “white arrow” . Note Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com...
- Page 13 7. City power wheelchair batteries can charge electronic products such as cell-phones, pad with USB interface, you can also take out the battery and charge it separately with charger connection cable. Keep on pressing button to switch on battery capacity light, press and hold the button to turn off.
-
Page 14: Folding And Unfolding
The total weight of the City power wheelchair (Batteries are included) is enough to cause injury when lifting. While it is necessary to lift up for moving the wheelchair, it is highly suggested that user gets off the wheelchair first. - Page 15 3. Put the seat cushion on the wheelchair. 4. Pull down the footrests. 5. Install the controller joystick (Refer to the joystick installation instruction section). The City power wheelchair is now completely unfolded and ready to operate. Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com...
-
Page 16: Controller
5. To stop, just bring the joystick back to the initial position. 6. Use extra care when you drive the City power wheelchair in reverse. You may lose control or fall if one of rear wheels hits an object. When operating in reverse: A. -
Page 17: Basic Operation
GET IN Be certain that the power is OFF before sitting in the seat of the City power wheelchair, with no light on the controller, make sure the footrest is down before getting into the wheelchair. - Page 18 3. Allow your wheelchair to charge for 6 hours or when the light on the charger turns green, which means your batteries are full charged. Should you require them, the lights and what they mean are located on the back of the charger. Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com...
- Page 19 9. Do not charge more than 8 hours. 10. If you do not operate the City power wheelchair for two months, we recommend that you charge the battery for 6-8 hours before use. Over current protection: this system is included on the wheelchair and will shut off the current from the batteries if triggered, thus shutting the motor down, which will ensure that the motor and battery do not experience any damage.
-
Page 20: Free Wheel Mode
1. To put the City power wheelchair in Free Wheel Mode, come to a full stop and turn OFF the power on the controller. -
Page 21: Transporting Your Folding Power Wheelchair
Note: Never transport the power wheelchair in a tie up system (electric mode), as the City power wheelchair is not compatible with them. Never sit in the wheelchair and be transported in moving vehicle. Do not place the City power wheelchair in the front seat with driver where it could move and slide. -
Page 22: Trouble Shooting
When Folded, the seat cross bar can be used to move the wheelchair easily. Trouble Shooting The following represents the most common questions asked about the City power wheelchair with regards to every day use; check this helpful guide or the operator’s manual for more information if you have a question about using your power wheelchair. -
Page 23: Diagnostics
If the above method still does not help you troubleshoot, please contact your dealer. When communicating with the dealer, provide the specific problems in details as much as possible. Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com... -
Page 24: Warranty
※ Chair frame: 3 years ※ Motors: 1 year ※ Controller and CPU system: 1 year ※ Battery: 6 months Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com USA Tel: (866)709-1332... -
Page 25: Guarantee Card
10. Products that have been modified in an unauthorized, unapproved way. Warranty is non-transferable and only valid for the original wheelchair purchaser. Warranty Card User Name ID No. Address Phone No. Model City Product No. Purchasing Date (month) (day) (year) Manufacturer Web: resten.ca Email: info@5mindsmobility.com... - Page 26 Distributor (stamp or signature) Distributor (Phone,Address) Web: resten.ca Email: info@5mindsmobility.com Canada Tel: (888)612-1116 Web: restenusa.com USA Tel: (866)709-1332...
