Summary of Contents for AUTOL ALP01 Series

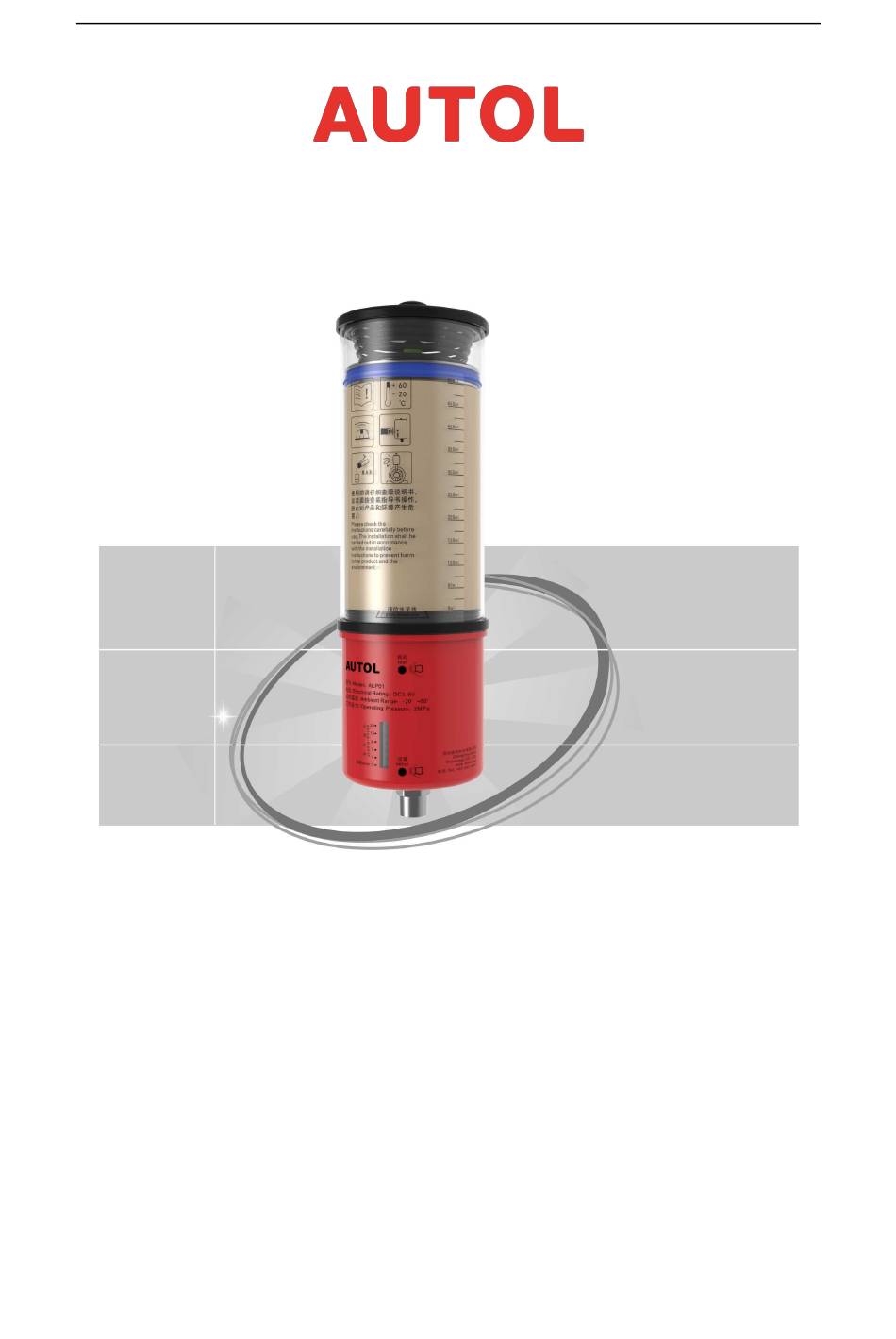

- Page 1 ALP01 - Single and Multipoint Lubrication Pump Installation Manual...
- Page 2 • Autol manufactures larger models requiring higher pressure, more lubrication points, etc, Model designations: Model Description: ALP01 lubrication pump is refillable and defined according to the model nameplate.
- Page 3 Outlet connector R3/8(metric standard) Running model 1、3、6、12、24 months (5 model) 500ml dimension 285mm×85mm（Height*Diameter） 250ml dimension 225mm×85mm（Height*Diameter） 120ml dimension 195mm×85mm（Height*Diameter） Anti-corrosion level Control model Built-in monitor Built-in monitor LED screen：running model and status Lubrication pump Components of ALP01 lubrication pump ①Magnetic cap - Take off the magnetic cap before refilling. The cap can be removed by holding the included fob on the activate field.
- Page 4 Dimensions: Battery and Activation nstallation and replacement of battery:...
- Page 5 ● The battery is prohibited to be disassembled without permission as it may cause the battery to explode ● Do not install non-Autol batteries on the lubrication pump. Failure to do so may cause damage to the lubrication pump. Part Number:...
- Page 6 Activation and Operation: A magnetic fob is used to control the functions of the lubricator such as the adjustment of the lubrication cycles. Place the fob on the activate field and keep it there more than 2 seconds and remove the magnetic cap. Activate field Function Operation...
- Page 7 2. Ensure there is enough space for operation (refilling the grease, maintenance, etc.) Note: Before installing the lubricating pump, use a manual grease gun to clear the lubricating oil path to ensure that the lubricating oil path is free from any blockages Installation and commissioning 1.
- Page 8 The pump is blocked Overflow Clear or replace the grease output tube Alarm Low temperature - the No action required viscosity of grease changed 3 times of motor It will be released overflow automaticlly while enter into continuously be the setting state tested while working , it will no longer enter into...
